Maintaining and Extending the Computing Unit
Release 04/02
4-12
Panel PC 670 Computing Unit, Equipment Manual
4.4 Installation of Extension Modules
Notes on the boards
The computing unit is designed for the use of cards as per the AT/PCI
specification. The dimensions of the cards must not exceed the stated dimensions.
If the height is exceeded, contact problems, malfunctions and difficulties with
installation cannot be ruled out. The illustrations show full length AT/PCI cards.
Depending on the slot, there might be constraints concerning the overall length.
175 mm
106.7 mm
A31 A1
6.89
4.201”

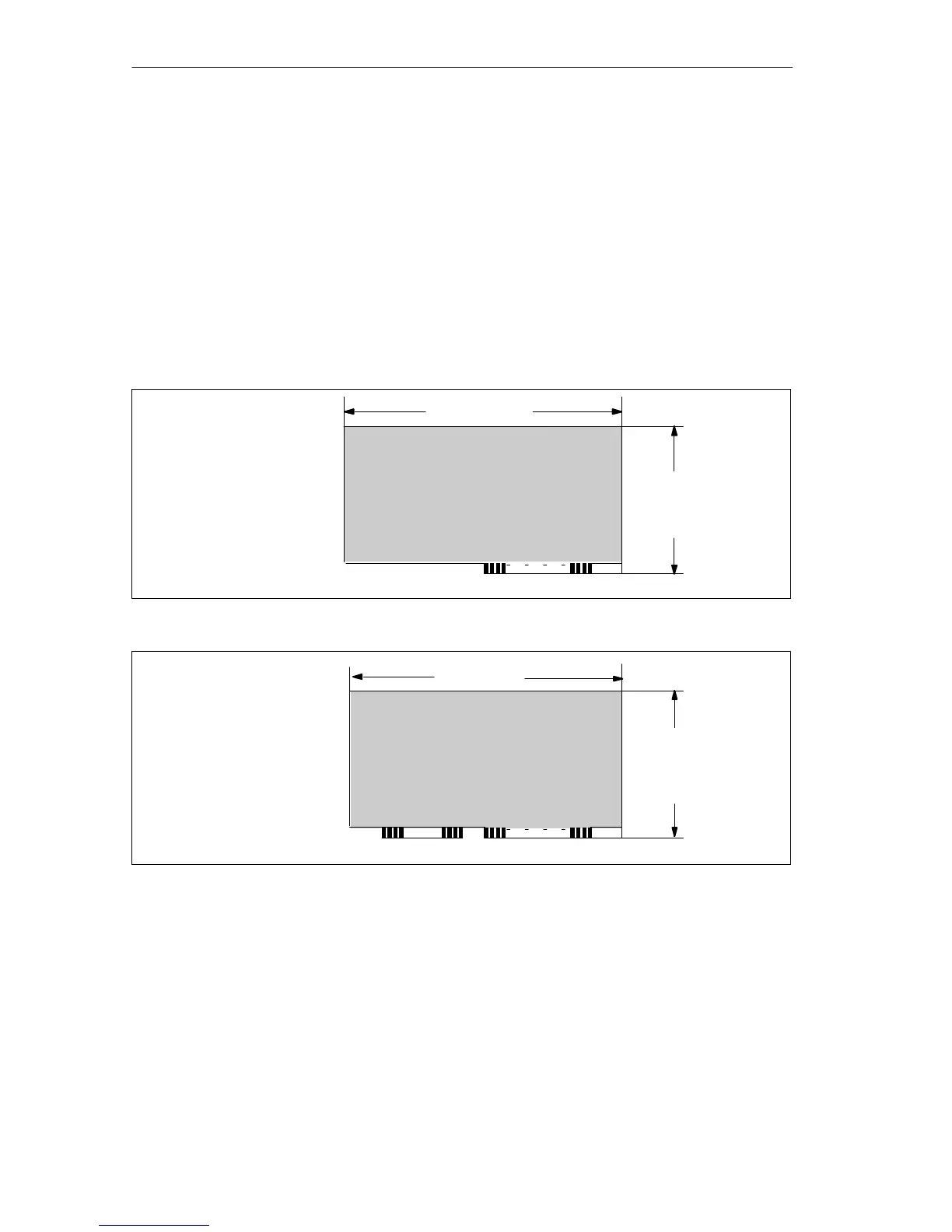

Figure 4-6 XT card
121.92 mm
A31 A1C18 C1
4.8”
175 mm
6.89
Figure 4-7 AT card
