Distributed configuration
Release 04/02
8-5
Panel PC 670 Computing Unit, Equipment Manual
Transmitter
Port for
interconnecting
cable
Encoder S30
Computing unit
Transmitter housing
Center screwhole
Groove for outer
fastening screws

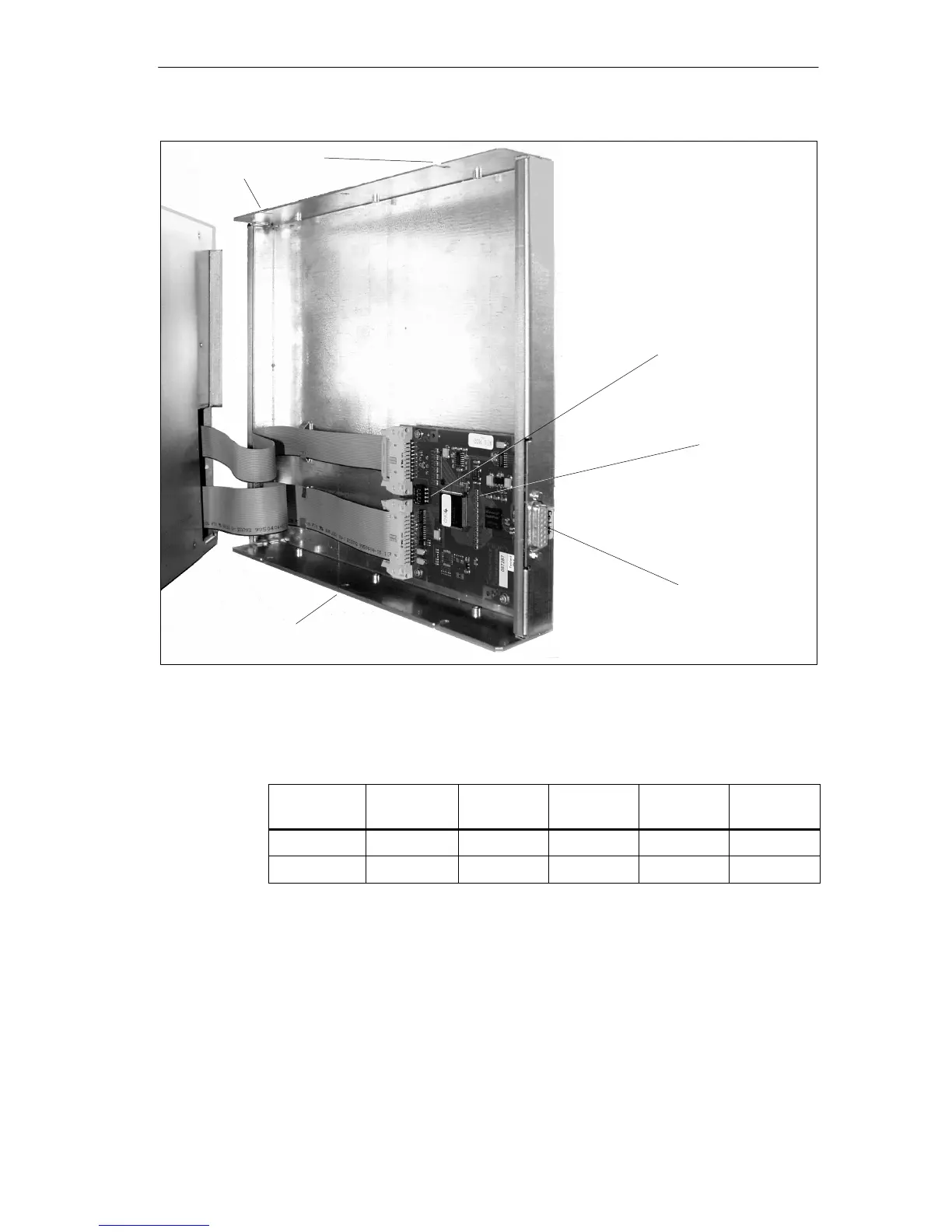

Figure 8-3 Transmitter in opened transmitter housing
4. Check (or set) the switch setting as shown in the table below:
Table 8-1 Display type adjustment via encoder S30
Type
Resolutio
n
S30/4 S30/3 S30/2 S30/1
12” (SVGA) 800 x 600 OFF ON ON ON
15” (XGA) 1024 x 768 OFF ON ON OFF
5. Install in reverse order.
