Result

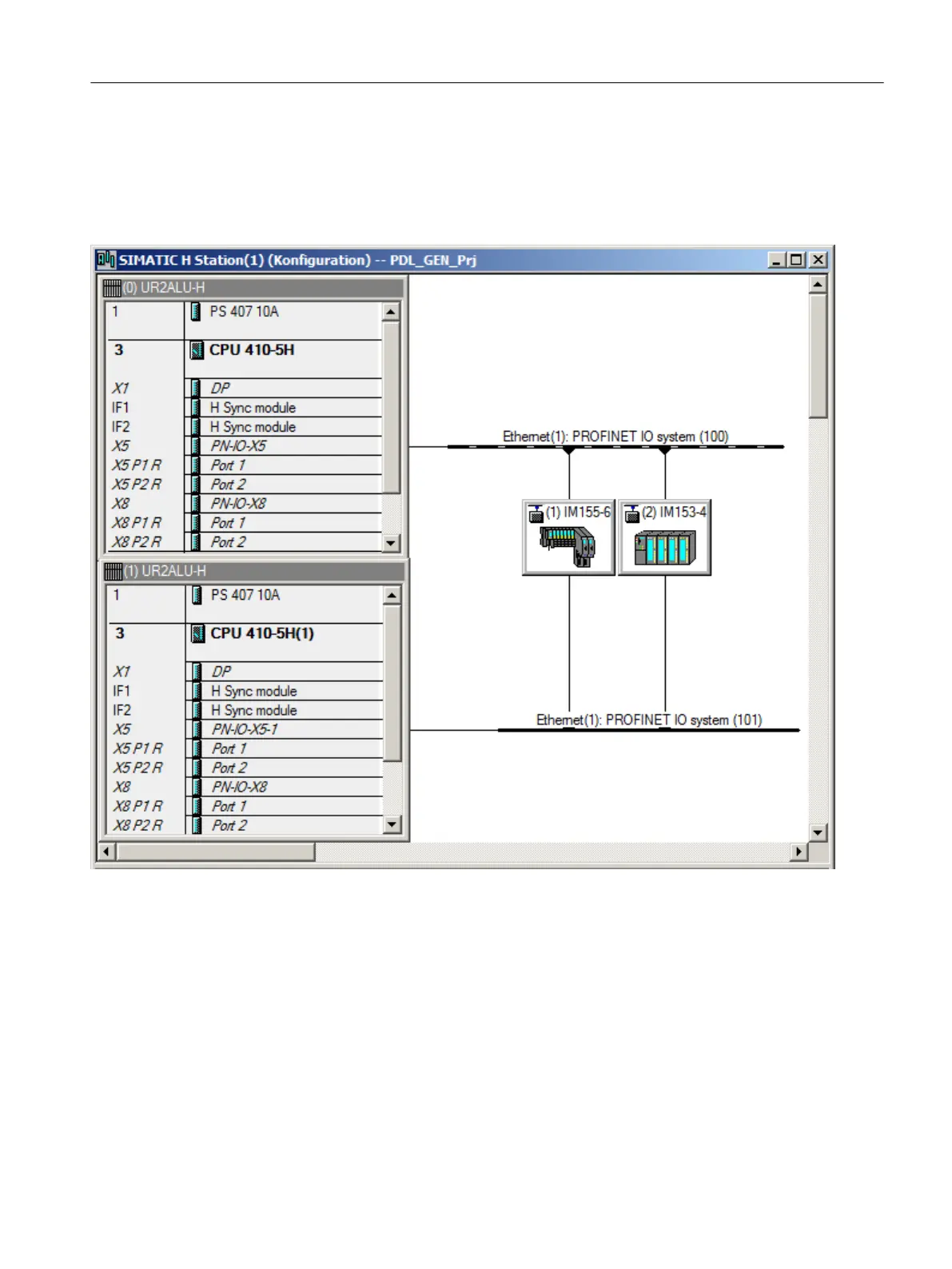

The figure below shows the result of the configuration process in HW Config. The distributed
I/O is connected to the PROFINET IO system. The physical setup is configured below with the
Topology Editor.
Connecting the components with the Topology Editor
1. Select the PROFINET IO System of the first CPU of this automation system.
2. Select the Edit > PROFINET IO > Topology menu command.
The "Topology Editor" dialog box opens.
Advantages of high availability components
5.3 Communications connections
High Availability Process Control Systems (V9.0)
Function Manual, 05/2017, A5E39221836-AA 123
