Interrupts/diagnostics alarms
6.2 Interrupts and diagnostics
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
Manual, 12/2017, A5E40898741-AA
139
Hardware interrupt
The compact CPU can generate a hardware interrupt for the following events:
● Rising edge
● Falling edge
You will find detailed information on the event in the hardware interrupt organization block
with the "RALRM" (read additional interrupt information) instruction and in the STEP 7 online
help.
The start information of the organization block includes information on which channel
triggered the hardware interrupt. The figure below shows the assignment to the bits of
double word 8 in local data.

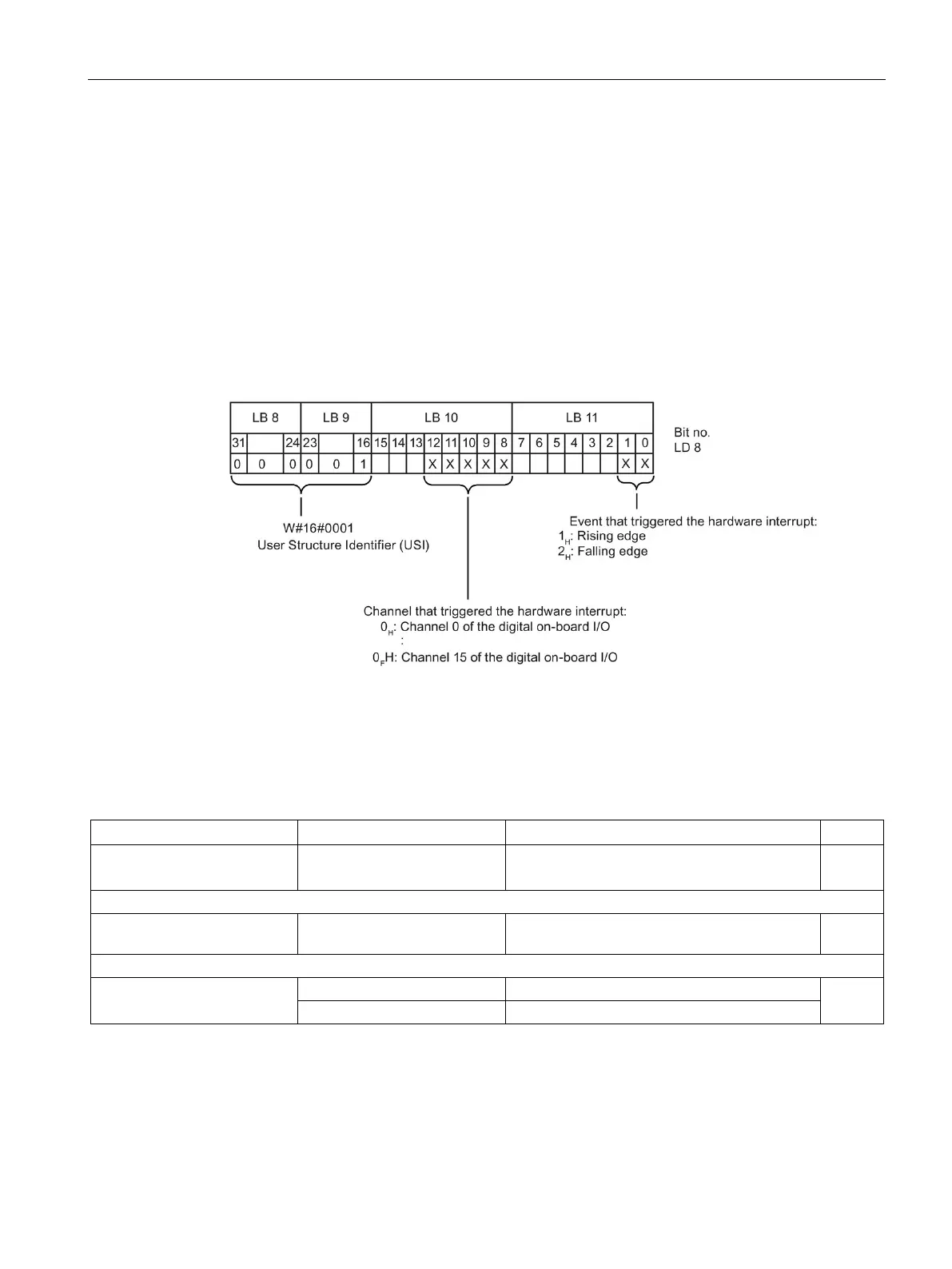

Figure 6-5 Start information of the organization block
Structure of the additional interrupt information
Table 6- 14 Structure of USI = W#16#0001
Data block name
Contents
Comment
Bytes
USI
(User Structure Identifier)
W#16#0001 Additional interrupt information of the hardware
interrupts of the digital on-board I/O
2
The channel that triggered the hardware interrupt follows.
Channel
B#16#00 to B#16#0F Number of the event-triggering channel (chan-
nel 0 to channel 15)
1
The error event that triggered the hardware interrupt follows.
Event
B#16#01
Rising edge
1
B#16#02
Falling edge

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
