Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Technology functions
3.2 Pulse generators
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
62 Manual, 12/2017, A5E40898741-AA
3.2.1.3
Operating mode: PTO
The PTO (Pulse Train Output) mode can be used to output position information. This allows
you to, for example, control stepper motor drives or simulate an incremental encoder. The
frequency of the pulses represents the speed, while the number of pulses represents the
distance. The direction can also be specified by using two signals per channel. You can use
a PTO channel for setpoint output (drive) for an axis technology object.
PTO mode is divided into the following four signal types:

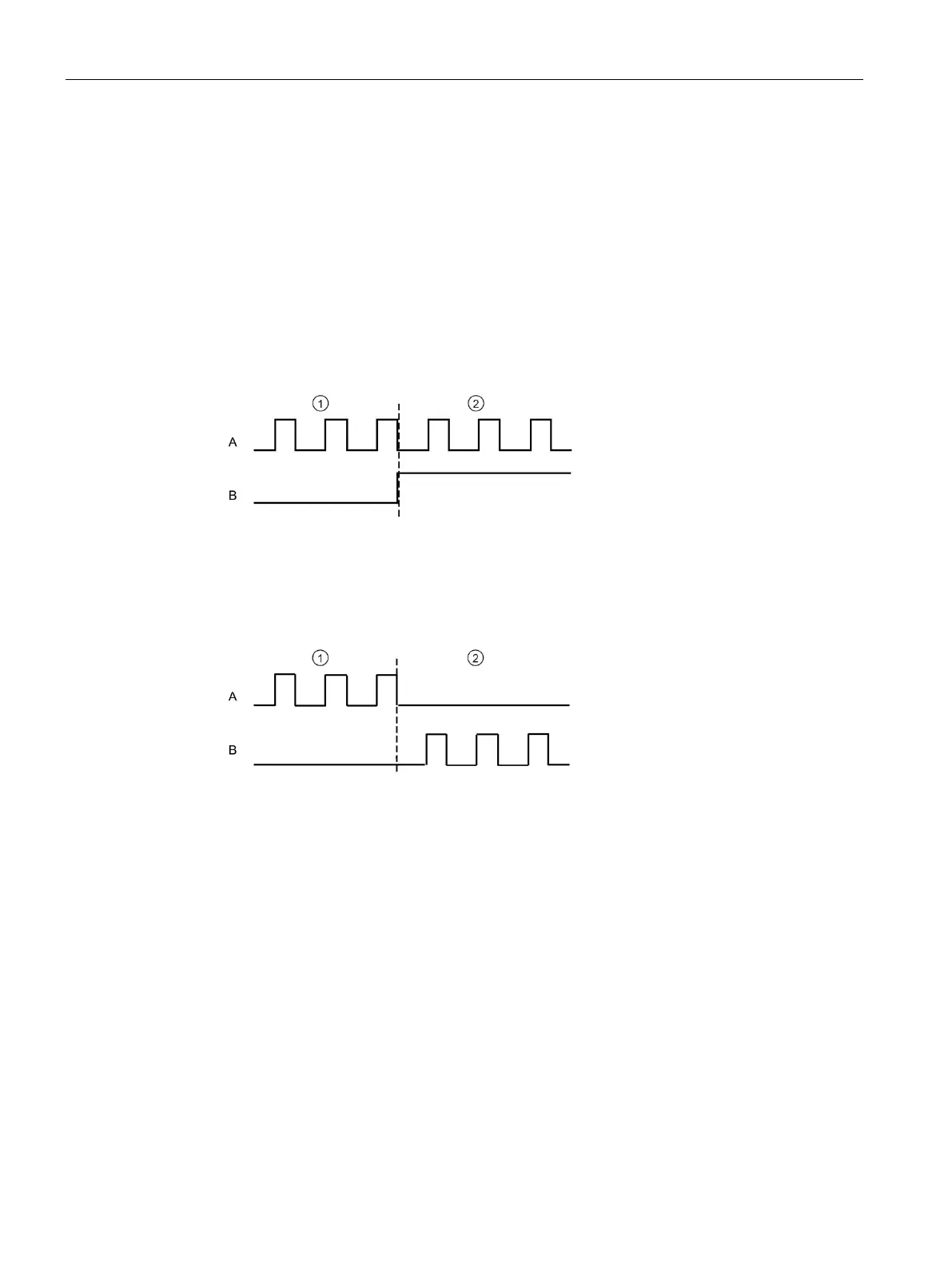

● PTO (pulse (A) and direction (B)): If you select the PTO signal type (pulse (A) and
direction (B)), an output (A) controls the pulses and an output (B) controls the direction. B
is 'High' (active) when pulses are generated in a negative direction. B is 'Low' (inactive)
when pulses are generated in a positive direction.
①
Positive direction of rotation
②
Negative direction of rotation
● PTO (Count Up (A) and Count Down (B)): When you select PTO when you select the
PTO signal type (count up (A) and count down (B)), an output (A) outputs pulses for
positive directions and another output (B) outputs pulses for negative directions.
①
Positive direction of rotation
②
Negative direction of rotation

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
