CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
164 Manual, 12/2017, A5E40898741-AA
Dimension drawings
A
This appendix contains the dimension drawings of the compact CPU installed on a mounting
rail. You must take the dimensions into consideration for installation in cabinets, control
rooms, etc.

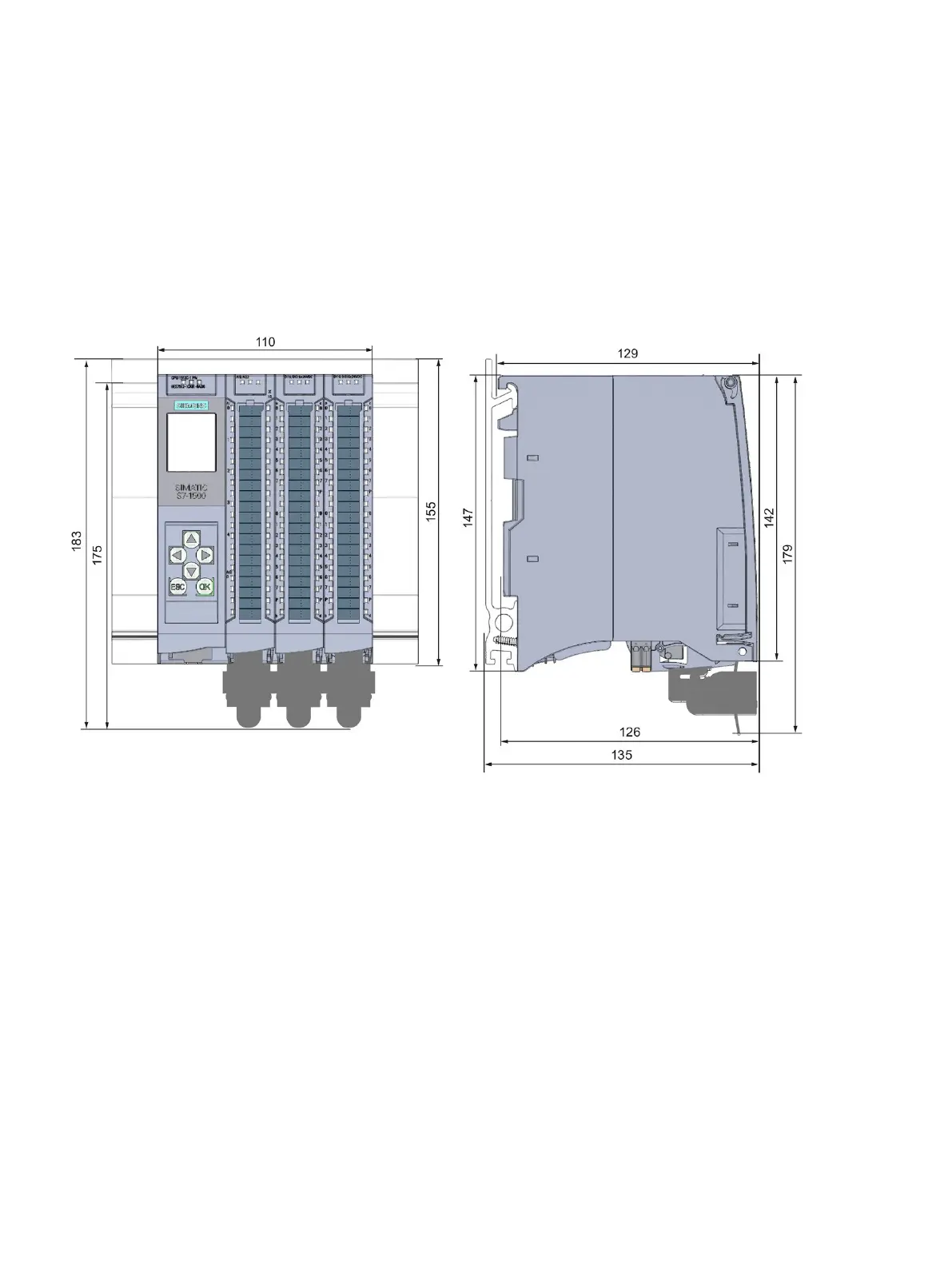

Figure A-1 Dimension drawing of CPU 1512C-1 PN – front and side views

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Siemens Simatic S7-1500 CPU 1512C-1 PN and is the answer not in the manual?

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General IconGeneral
Integrated InterfacesPROFINET
Data Memory1 MB
Number of Signal Boards1
Firmware VersionV2.8
Rated Value (DC)24 V
Number of PROFINET Ports2
Number of PROFINET Ports with Switch2
Integrated Web ServerYes
Number of Digital Inputs16
Number of Digital Outputs16
Number of Analog Outputs2
Number of High-speed Counters6
Program Memory300 KB
Number of Signal Modules32
Engineering withSTEP 7 Professional V13
Interface TypeEthernet
Data StorageYes
Operating Temperature0 to 60 °C
Dimensions147 mm x 129 mm
