Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
114 Manual, 12/2017, A5E40898741-AA
Parameters/address space
5
5.1
Address space of the analog on-board I/O
Address space of the analog input and output channels
The addresses are divided into five analog input channels and two analog output channels.
STEP 7 (TIA Portal) assigns the addresses automatically. You can change the addresses in
the hardware configuration of STEP 7 (TIA Portal), i.e. freely assign the start address. The
addresses of the channels are based on the start address.
"IB x" stands, for example, for the start address input byte x. "QB x" stands, for example, for
the start address output byte x.

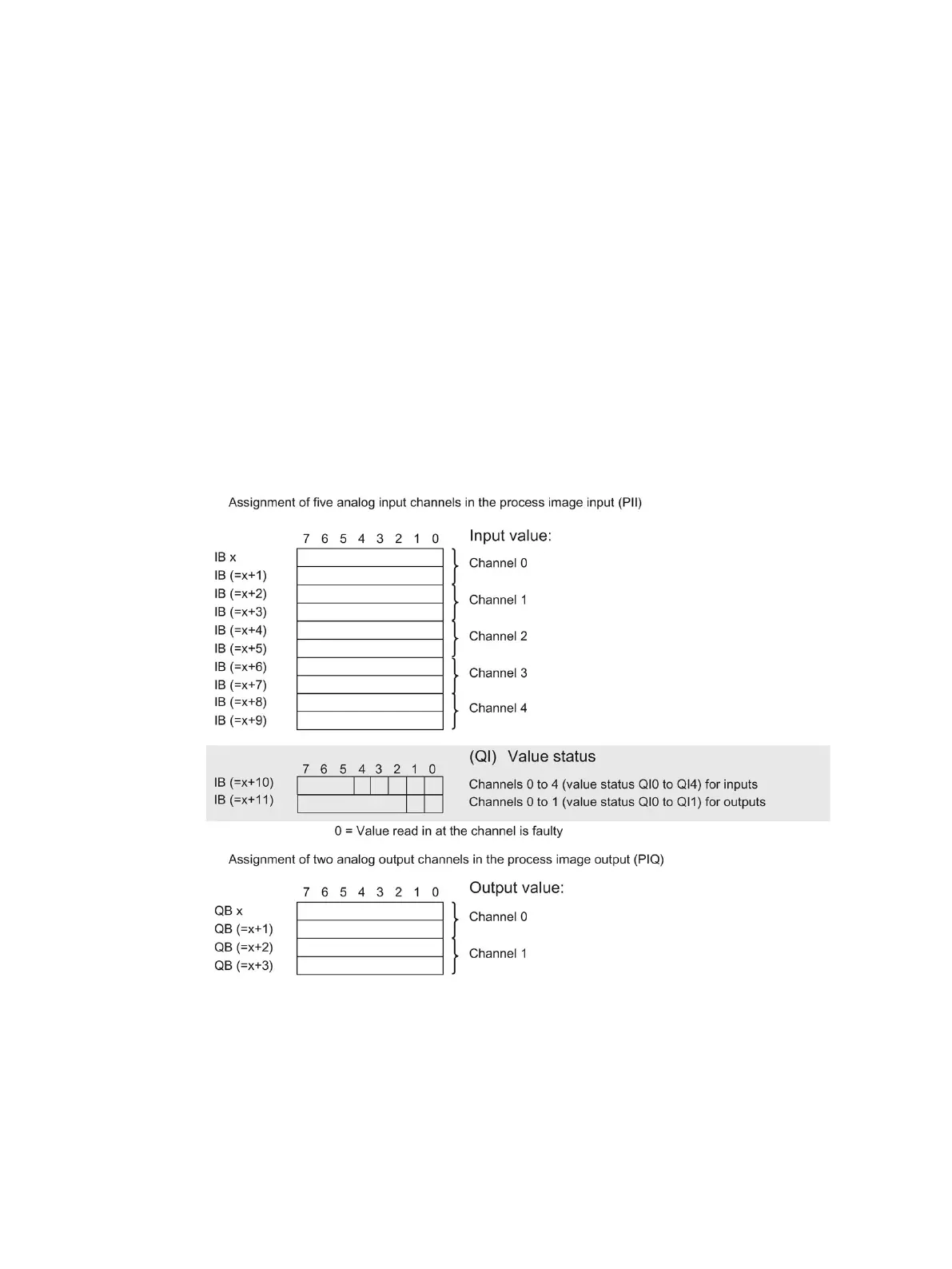

Figure 5-1 Address space seven-channel analog on-board I/O with value status

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
