Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Product overview
2.3 Operator controls and display elements
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
40 Manual, 12/2017, A5E40898741-AA
2.3.3
Rear view

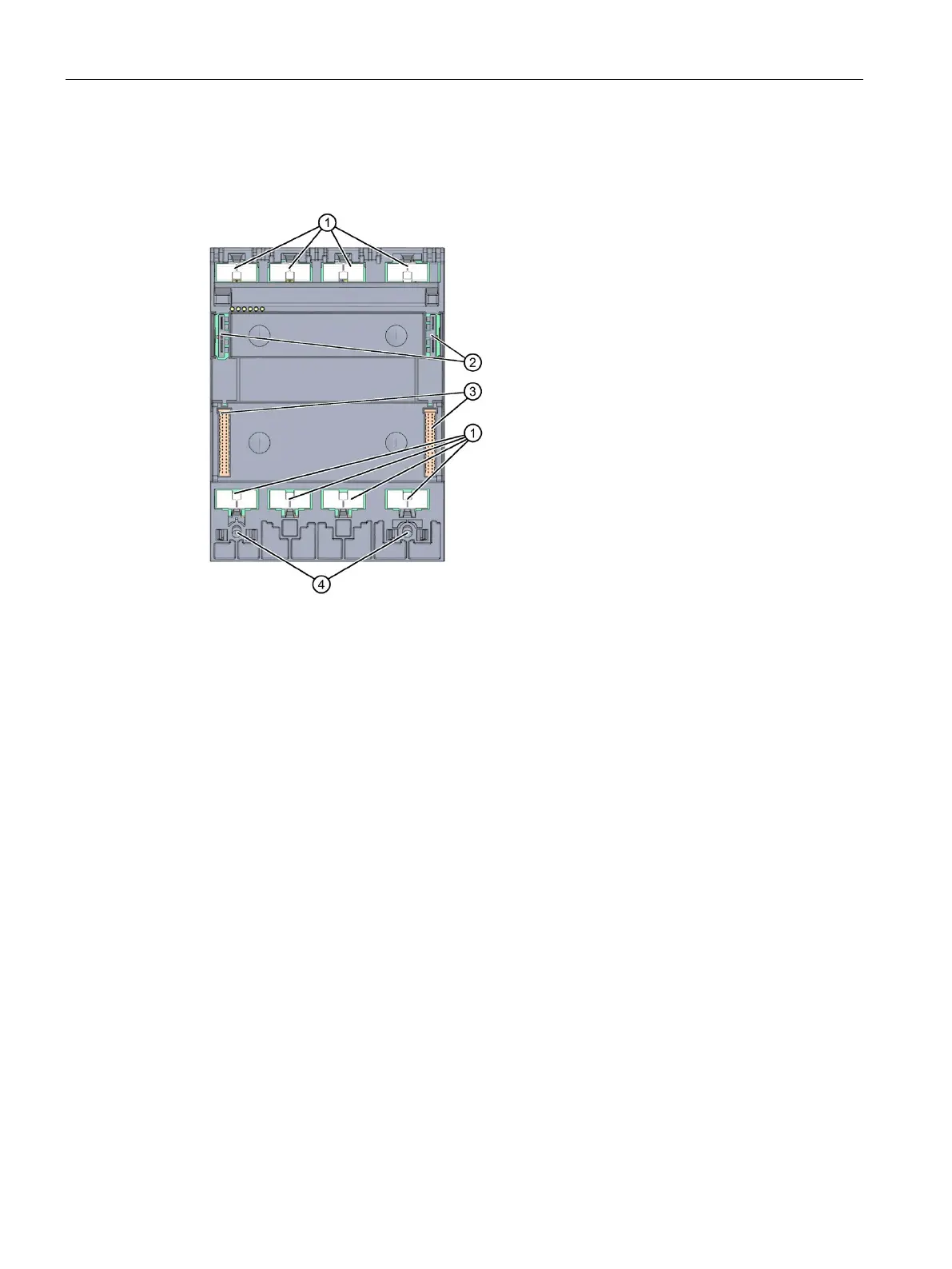

The following figure shows the connection elements on the rear of the CPU 1512C-1 PN.
①
Shield contact surfaces
②
Plug-in connection for power supply
③
Plug-in connection for backplane bus
④
Fastening screws
Figure 2-8 View of the CPU 1512C-1 PN - rear

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
