Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Wiring
4.2 PROFINET interfaces
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
78 Manual, 12/2017, A5E40898741-AA
4.2
PROFINET interfaces
PROFINET interface X1 with 2-port switch (X1 P1 R and X1 P2 R)
The assignment corresponds to the Ethernet standard for an RJ45 plug.
● When autonegotiation is deactivated, the RJ45 socket is allocated as a switch (MDI-X).
● When autonegotiation is activated, autocrossing is in effect and the RJ45 socket is
allocated either as data terminal equipment (MDI) or a switch (MDI-X).

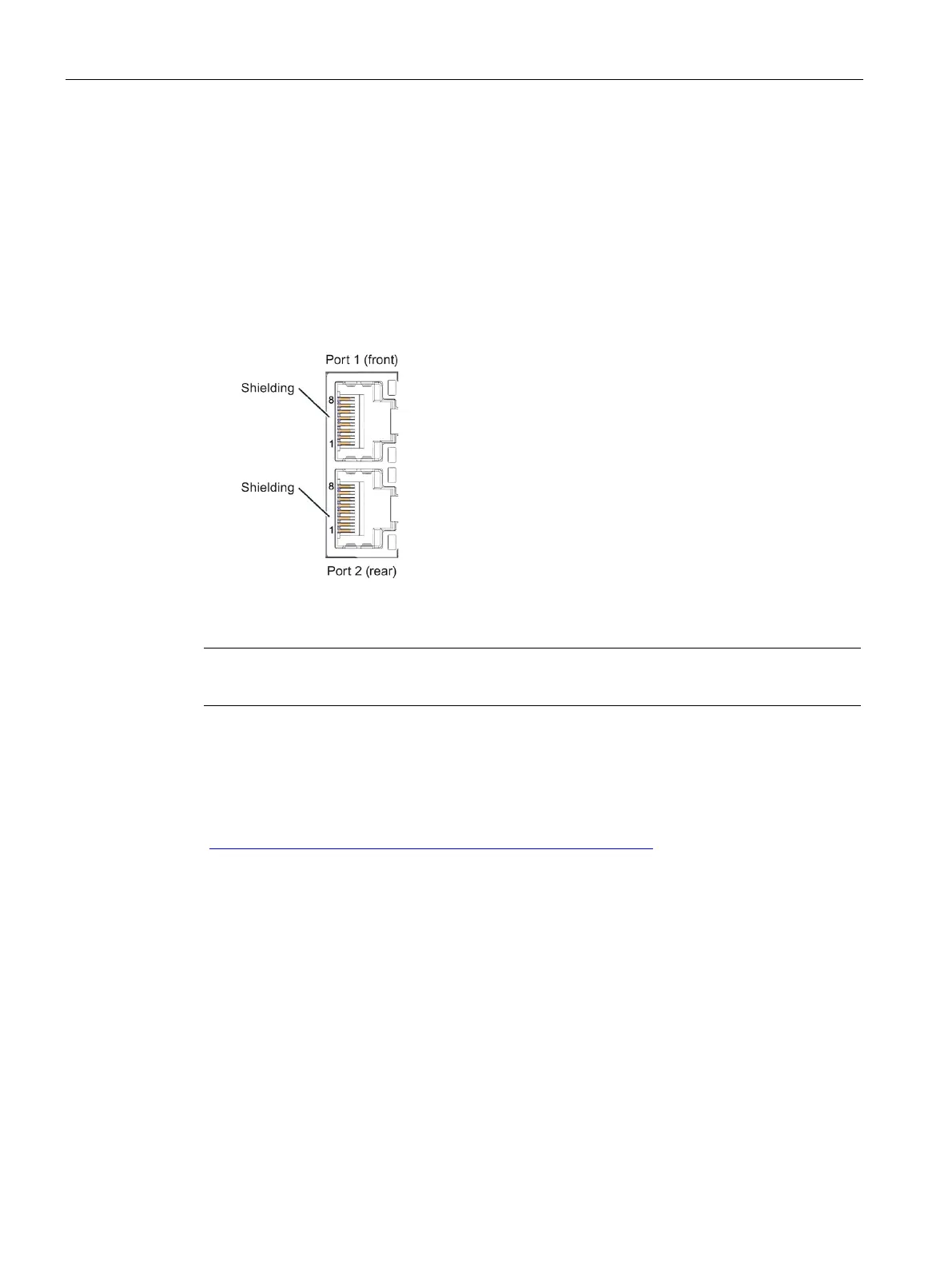

Figure 4-2 PROFINET ports
Note
You need a screwdriver (max. blade width 2.5 mm) to remove the PROFINET plug.
Reference
For more information on "Wiring the CPU" and "Accessories/spare parts", refer to the S7-
1500, ET 200MP system manual
(http://support.automation.siemens.com/WW/view/en/59191792).

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
