Parameter data records
B.2 Structure of a data record for input channels of the analog on-board I/O
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
Manual, 12/2017, A5E40898741-AA
167
The example in the figure below shows the structure of data record 0 for channel 0. The
structure is identical for channels 1 to 4. The values in byte 0 and byte 1 are fixed and must
not be changed.
You enable a parameter by setting the corresponding bit to "1".

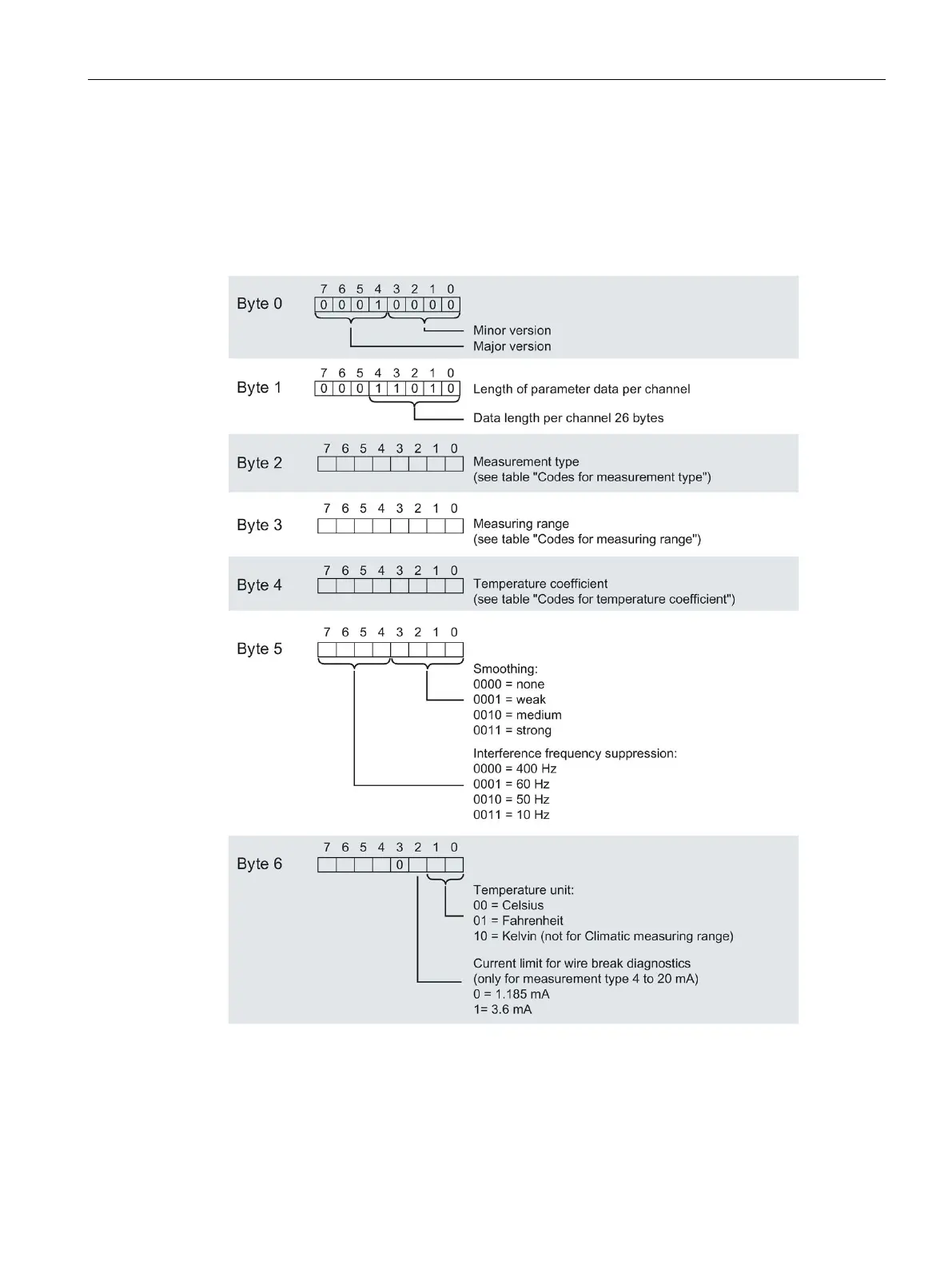

Figure B-1 Structure of data record 0: Bytes 0 to 6
