Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Technology functions
3.2 Pulse generators
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
74 Manual, 12/2017, A5E40898741-AA
Cyclic updating of the parameter 'Period duration'
The following representation illustrates the execution of the cyclic updating of the parameter
'Period duration'. The described workflow principle can also be used on the channels of the
high-speed counters.
①
• User sets SLOT to the required parameter
• User sets MODE_SLOT to 1
• User sets LD_SLOT to the required value (1 for period duration)
②
User changes value in SLOT continuously and technology channel evaluates continuously
③
Value in SLOT exceeds permitted limit, technology channel shows this ERR_SLOT_VAL and
continues working with the last valid value
④
Value in SLOT again in permitted range, technology channel resets ERR_SLOT_VAL inde-
pendently and continues working with the value in SLOT
⑤
User resets LD_SLOT and MODE_SLOT, technology channel continues to work with last value

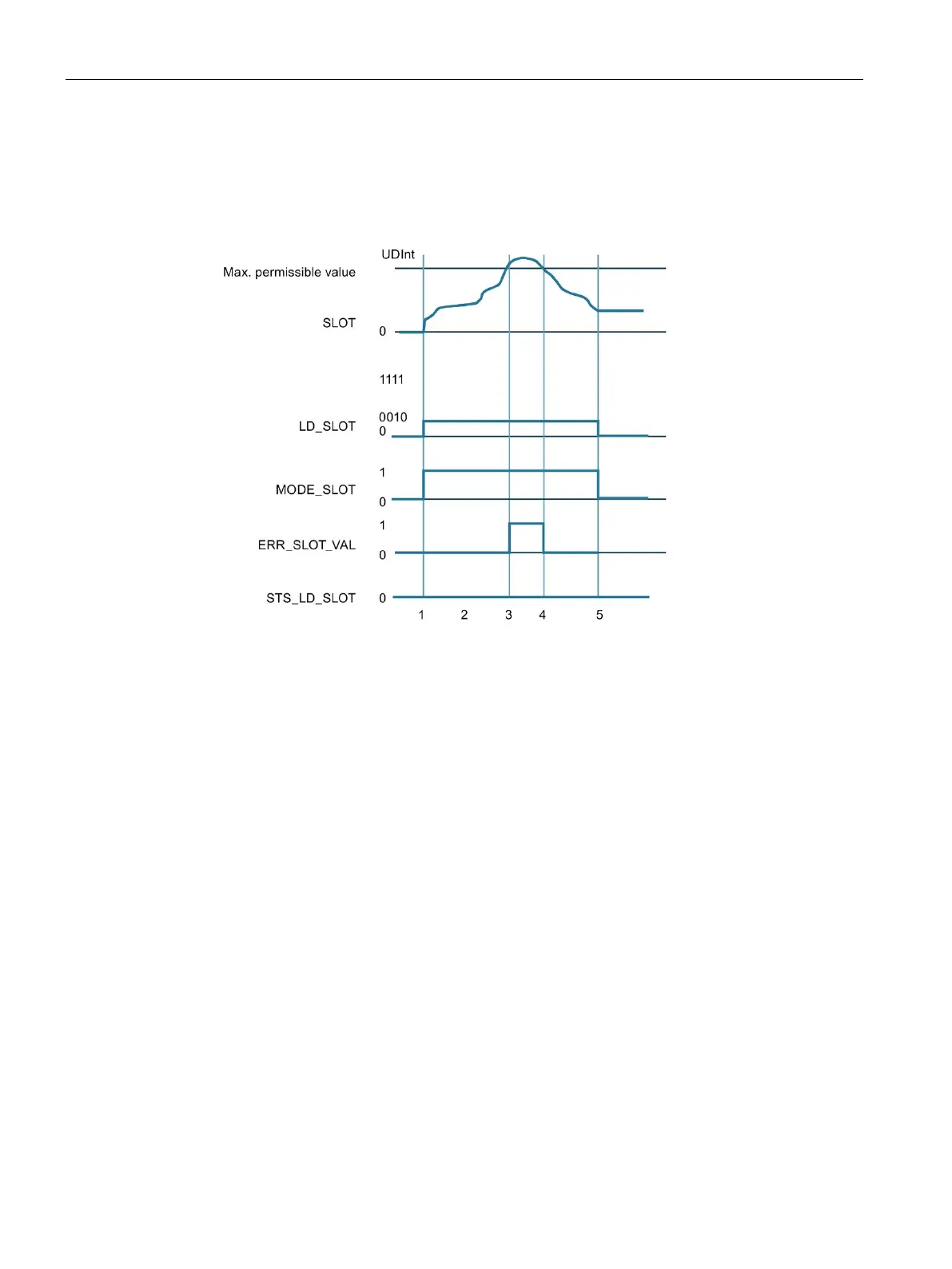

Figure 3-5 Cyclic updating

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
