Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Wiring
4.3 Terminal and block diagrams
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
Manual, 12/2017, A5E40898741-AA
97

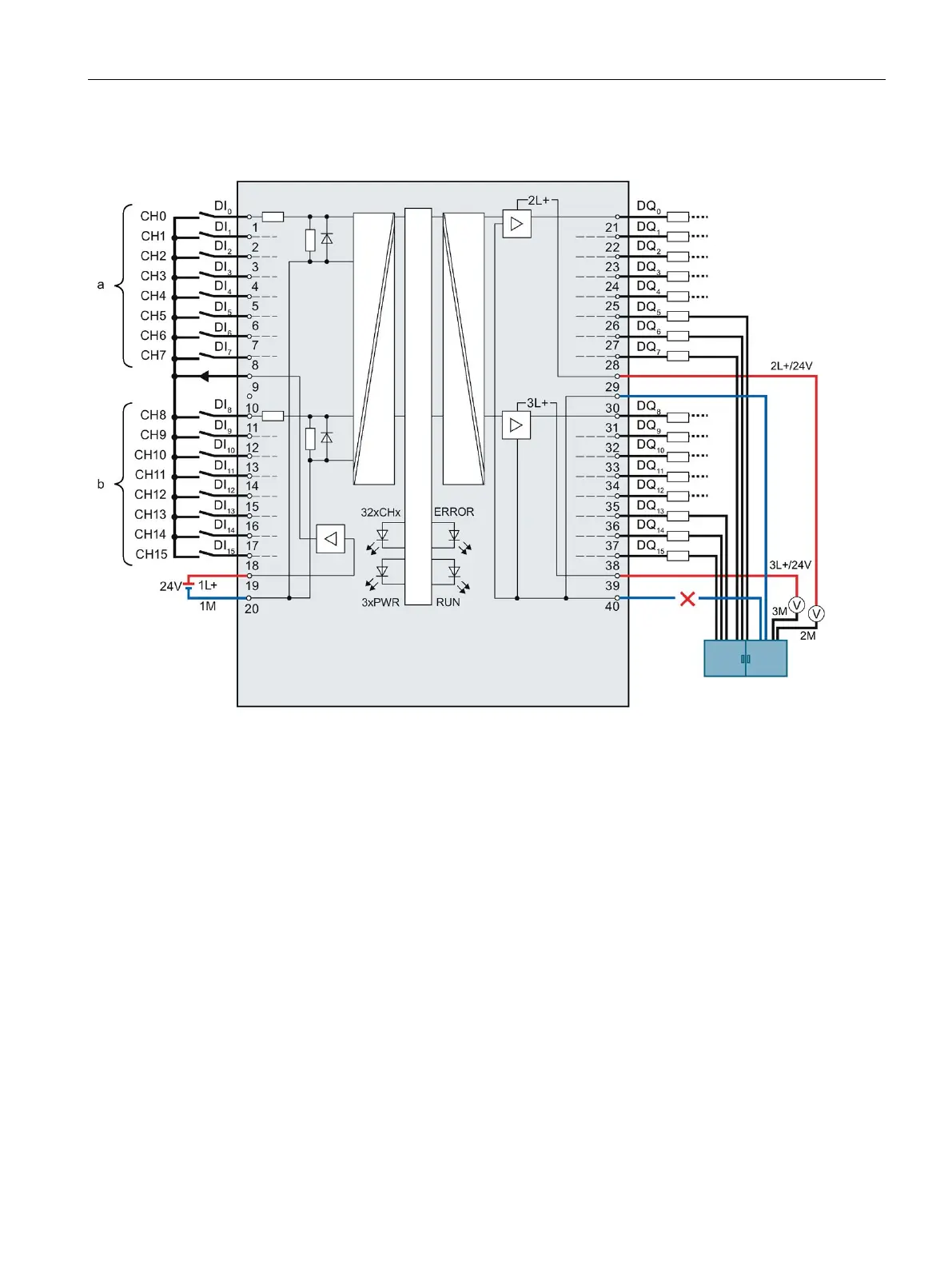

The figure below shows the reaction to interruption of the second ground cable.
Figure 4-17 Interruption of the second ground cable using the digital on-board I/O X11 as an example
If a wire break occurs on the second ground cable from the central block terminal to
terminal 30, the module can continue to operate without restrictions, as it is still connected to
the ground via the first cable from the central terminal block to terminal 40.

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
