Siemens SIMATIC S7-300 CPU Data: CPU 315-T-2 DP User Manual

Communication with the S7-300
5
5.1 5.1 Interfaces
5.1.1 Overview
Overview
The Technology CPU has two interfaces:
• MPI/DP interface (X1)
• PROFIBUS DP(DRIVE) interface (X3)
'3'5,9(
03,'3
&38[7'3

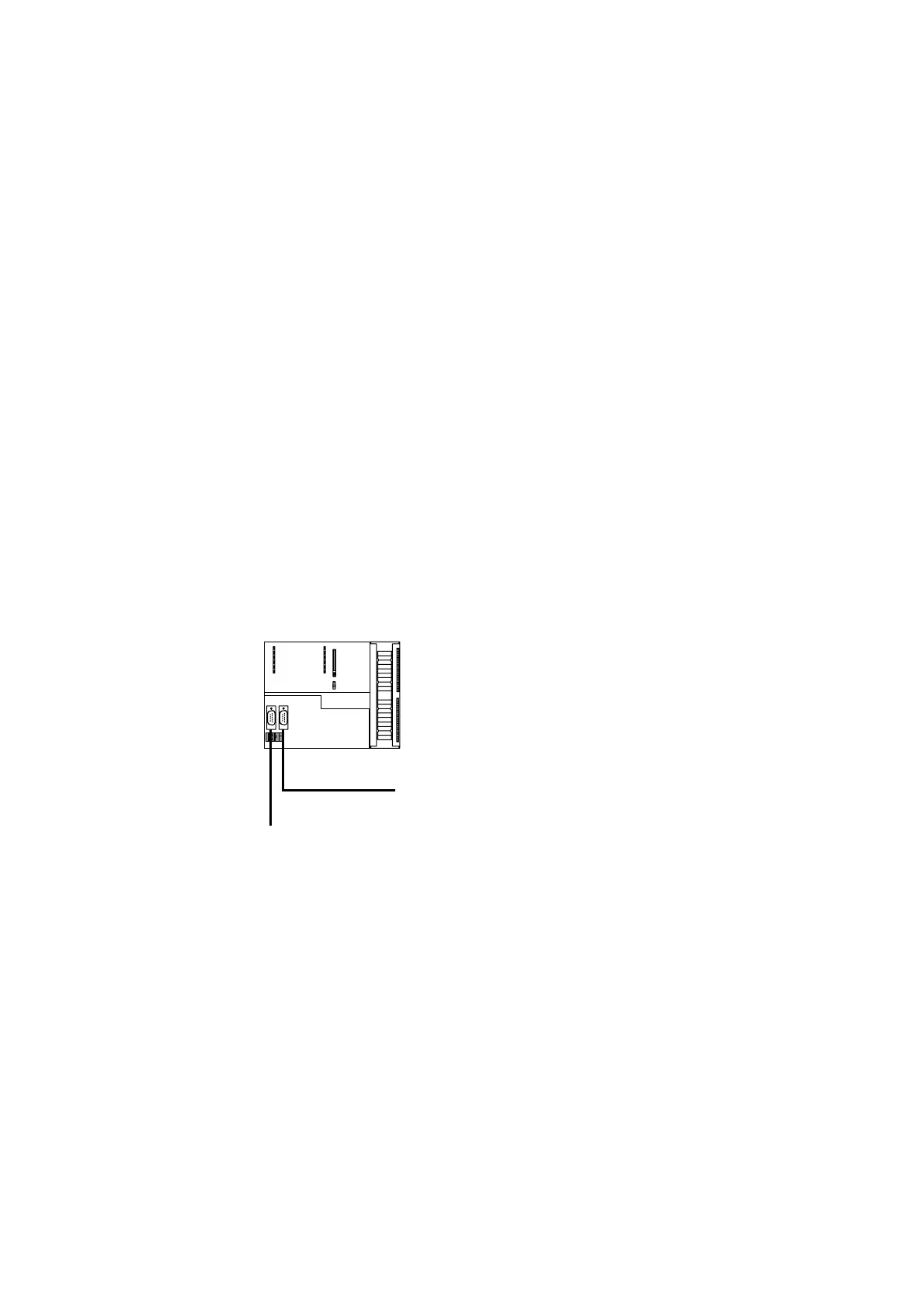

Figure 5-1 Technology CPU interfaces
S7-300 CPU Data: CPU 315T-2 DP
Manual, 12/2005, A5E00427933-02
5-1

Siemens SIMATIC S7-300 CPU Data: CPU 315-T-2 DP Specifications

General

Programming Language	STEP 7
Power Supply	24 V DC
Number of DP masters	1
Processable Technology objects	Yes
Number of counters	256
Number of timers	256
S7 communication	Yes
Number of connections for S7 communication, max.	16
PG/OP communication	Yes
Global data communication	Yes
Integrated DP interface	Yes
Integrated PROFINET interface	No
SIMATIC Computing Platform	No
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Communication	PROFIBUS DP
Cycle Time	0.1 ms
Engineering with	STEP 7
Backup available	Yes
Transmission rate, max.	12 Mbit/s
