Siemens SIMATIC S7-300 CPU Data: CPU 315-T-2 DP User Manual

Technical data
8.3 Integrated Inputs/Outputs for Technology
8.3 8.3 Integrated Inputs/Outputs for Technology
8.3.1 Arrangement of integrated inputs/outputs for integrated technology
Introduction
The Technology CPU has 4 digital inputs and 8 digital outputs integrated. You use these
inputs and outputs for technology functions, e.g. reference point acquisition (reference cams)
or high-speed output cam switching signals.
The digital inputs and outputs can also be used in the STEP 7 user program.










9










0
0
/












,1
287
6WDWXV/('JUHHQ
&KDQQHOQXPEHU
,QWHJUDWHGWHFKQRORJ\

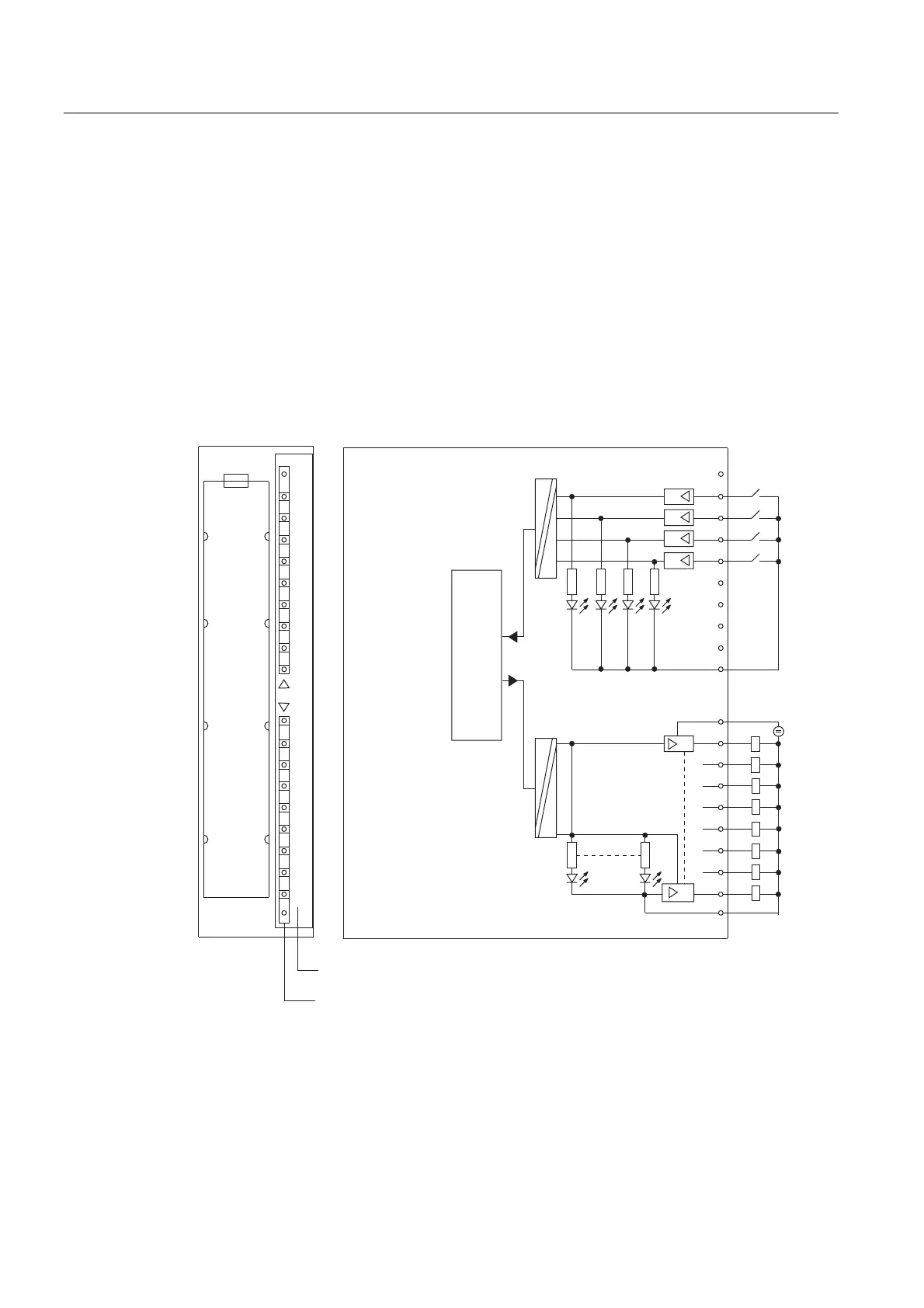

Figure 8-1 Block diagram of integrated inputs/outputs for integrated technology
S7-300 CPU Data: CPU 315T-2 DP
8-10 Manual, 12/2005, A5E00427933-02

Siemens SIMATIC S7-300 CPU Data: CPU 315-T-2 DP Specifications

General

Programming Language	STEP 7
Power Supply	24 V DC
Number of DP masters	1
Processable Technology objects	Yes
Number of counters	256
Number of timers	256
S7 communication	Yes
Number of connections for S7 communication, max.	16
PG/OP communication	Yes
Global data communication	Yes
Integrated DP interface	Yes
Integrated PROFINET interface	No
SIMATIC Computing Platform	No
Operating Temperature	0 to 60 °C
Integrated Interfaces	MPI, DP
Communication	PROFIBUS DP
Cycle Time	0.1 ms
Engineering with	STEP 7
Backup available	Yes
Transmission rate, max.	12 Mbit/s
