Basic Principles of Serial Data Transmission

2.4 Data Transmission with the ASCII Driver

Point-to-point connection CP 440 Installation and Parameter Assignment

Manual, 09/2007, A5E00057742-03

RS422 Operation

In the case of a master/slave topology in RS422 operation:

● The master's sender is interconnected with the receivers of all the slaves.

● The slaves' senders are interconnected with the master's receiver.

● Only the receiver of the master and the receiver of one slave have a default setting. All

the other slaves function without default settings.

0DVWHU

6ODYH

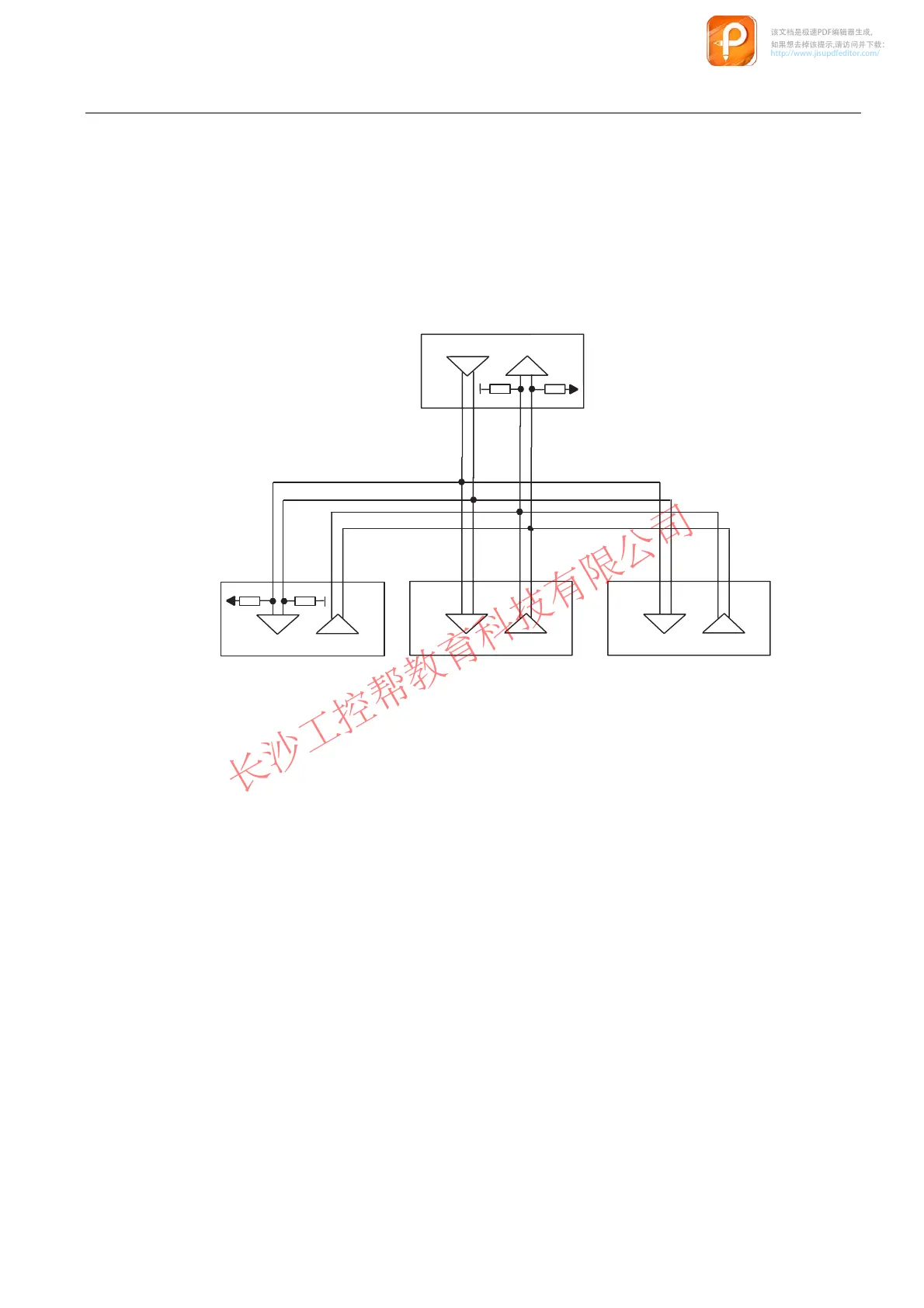

Figure 2-10 RS 422 Multipoint
