Siemens SIMATIC S7-GRAPH User Manual

Notes on Configuration
S7-GRAPH for S7-300/400 Programming Sequential Control Systems
C79000-G7076-C526-01
14-7

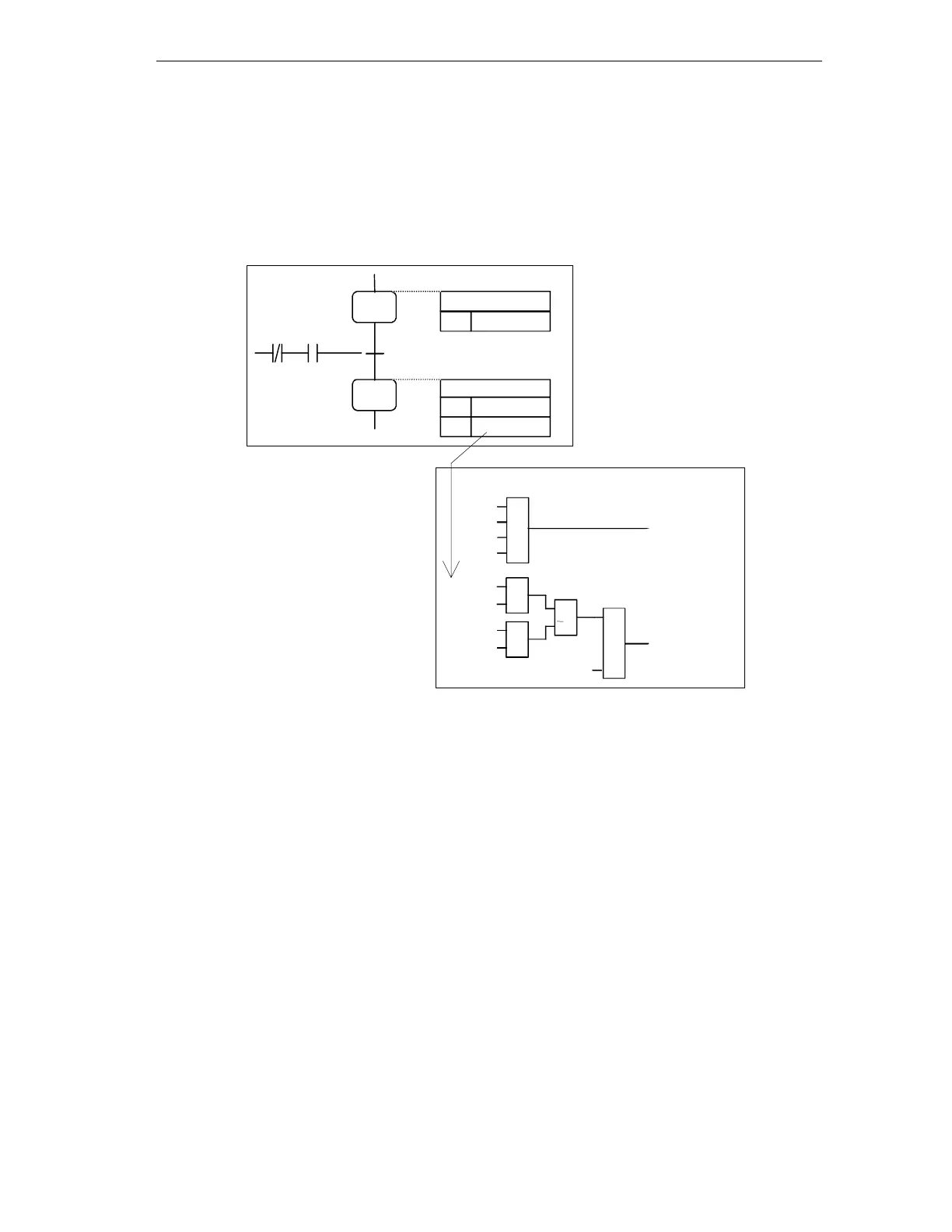

Handling the Interlocks and Manual Control in the Manual Mode
In S7-Graph, the sequencer controls the functions for the automatic mode. The
functions for the manual mode required over and above those of the automatic
mode are included in a separate FB. Using action bits (for example Carr_fwd) the
sequencer is connected to the interlock and manual control.
S 4
S 5
&
&
&
Carr_fwd
Autom.
Man
Btn_fwd
KM_on
Carr_fwd
Spind_on
Execute
Mot_onS
S
N
FB interlock/manual control
FB sequencer
&
Cnd1
Cnd2
Cnd3
Cnd4
( )
( )
>1
Enable_fwd
Valve1_fwd
Enable_fwd
The permanent monitoring functions required for the units can be programmed with
S7 PDIAG. Depending on the requirements, the supervision conditions can be
formulated so that they are effective both in the automatic and manual modes or
specific supervision conditions are programmed for the automatic mode and for the
manual mode.
