Setting Up and Operating the SIMATIC Rack PC IL 40 S
3-5
SIMATIC Rack PC IL 40 SManual
A5E00200171-01
355.6±T1
14±T1
209.6±T1
8.251±T1
88.5±T2 3.484±T2
72,6±T2 2.858±T2
127±T1
5±T1
33.54±T3
1.32±T3
100±T1
3.937±T1
100±T1
3.937±T1
100±T1
3.937±T1
Dimensions for telescopic
rails by the company Rittal
type 3659
Dimensions for telescopic rails
by the company Schroff type
69000-122
Dimensions:
mm
inch
0.1 mm
0.004 inch
T1=tolerance of ±
0.3 mm
0.01 inch
T2=tolerance of ±
0.5 mm
0.02 inch
T3=tolerance of ±

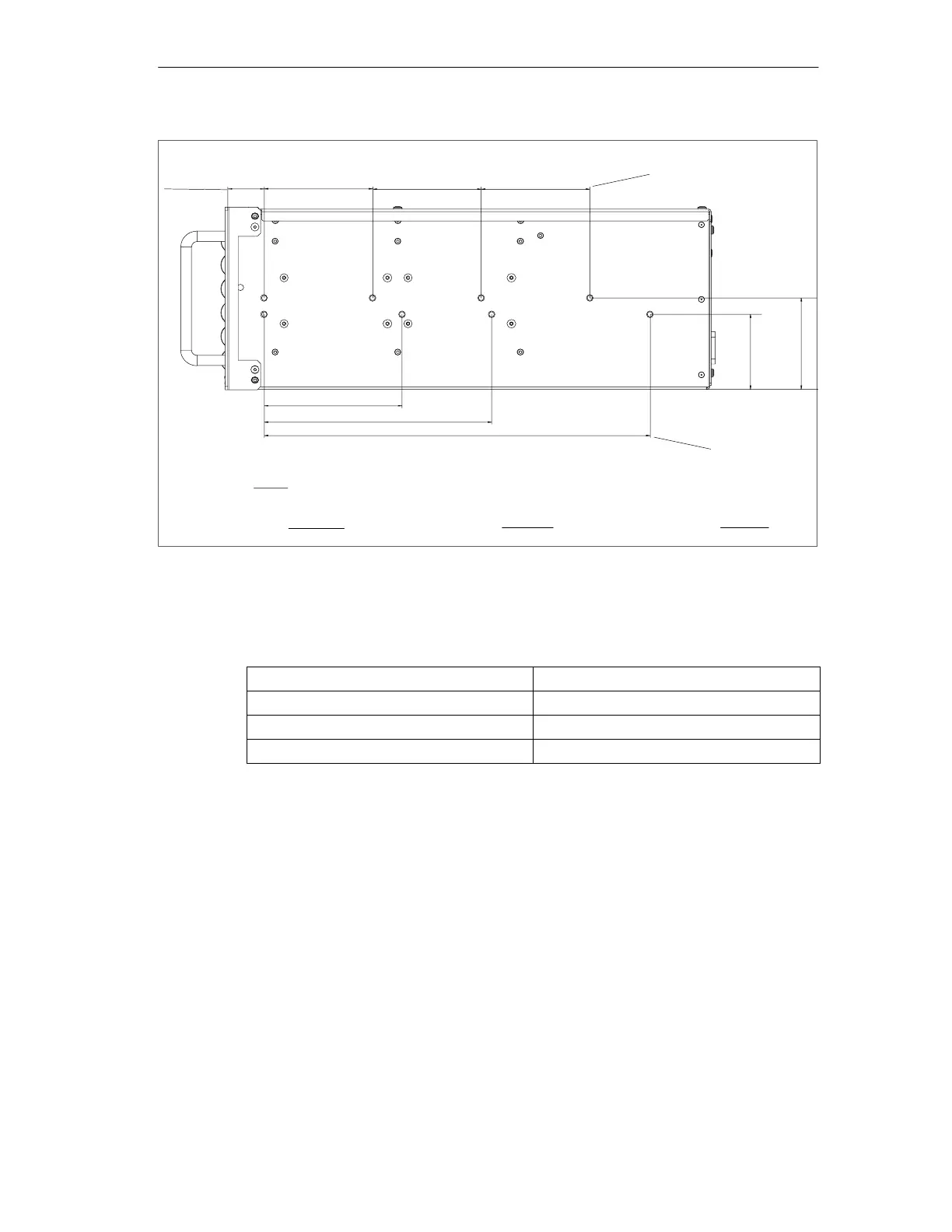

Figure 3-2 Dimensions for using telescopic rails
Technical Specifications of the Telescopic Rails
Load per pair minimum 30 kg
Pull-out length for complete pull-out minimum 470 mm
Rail thickness maximum 9,7 mm
Fixing screws M5 x 6mm
The fiixing screw of the telescopic rail should not go beyond a maximum of 5 mm
into the housing.
