4.5.2 Installing and Uninstalling the Hard Disk Drive(s)
Caution
Drives are sensitive components and may not be exposed to high shock loads.
When installing and uninstalling the drives, make sure they do not open or
overturn.
1. Open the housing as described in Section 4.1.2 and 4.1.3.
2. Undo the four screws (1) on the drive you want to uninstall.
3. Remove the drive from the housing.
4. Remove the data and power supply cables.
5. Proceed in reverse order when installing.
1
1

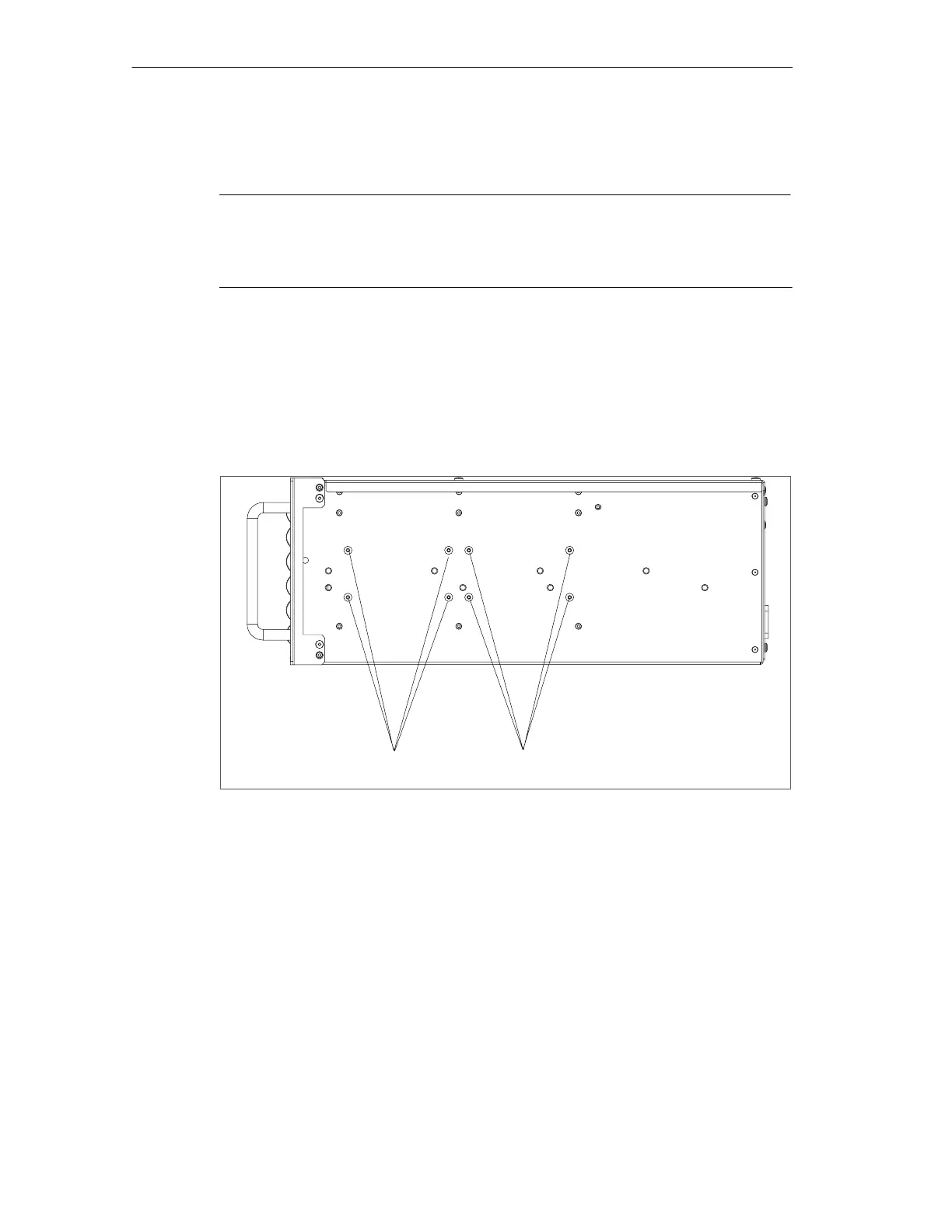

Figure 4-10 Installation of a harddisk drive
