SIMATIC Rack PC IL 40 S Expansions
4-9
SIMATIC Rack PC IL 40 SManual
A5E00200171-01
4.4.1 Installing and Uninstalling the Device for Holding Down the
Modules
The device for holding down the module is inserted in a perforated groove on one
side and screwed tight on the other side. Seven holders are fitted on the device for
holding down the modules and these downholders are fully adjustable to the
module.
Proceed as follows:
1. Open the housing as described in Section 4.1.2.
2. Undo the screw (3 ) and remove the device for holding down the modules (1) .
3. Fit the expansion modules.
4. Fit the device for holding down the modules and then tighten the screw (3).
5. Align the down holders (2).
1
3
2

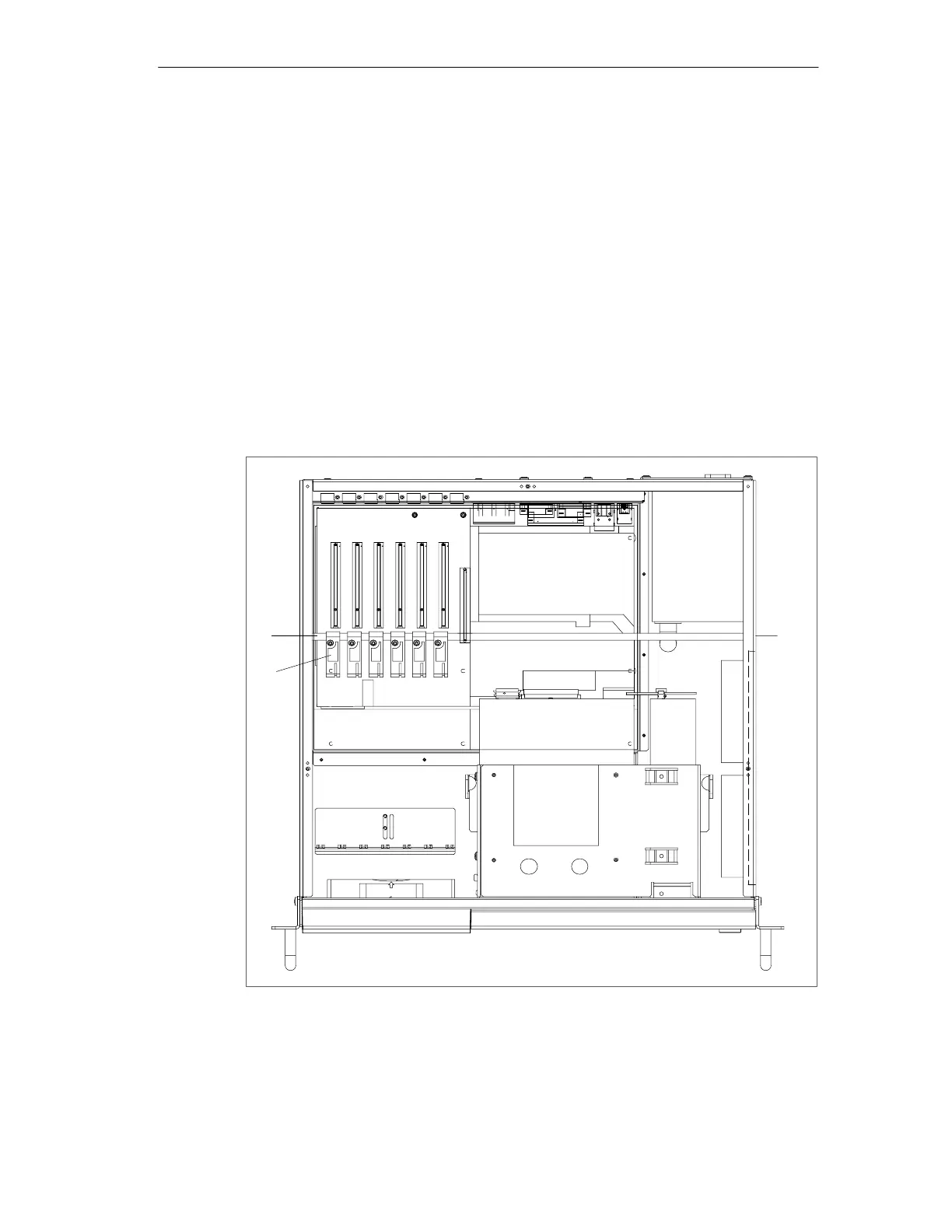

Figure 4-6 Removal/Installation of the Device for Holding Down the Modules
