Rack
3.1 Rack UR6021 (6DD1682-0CH3)
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
53
Dimensional drawing
Dimensions in mm

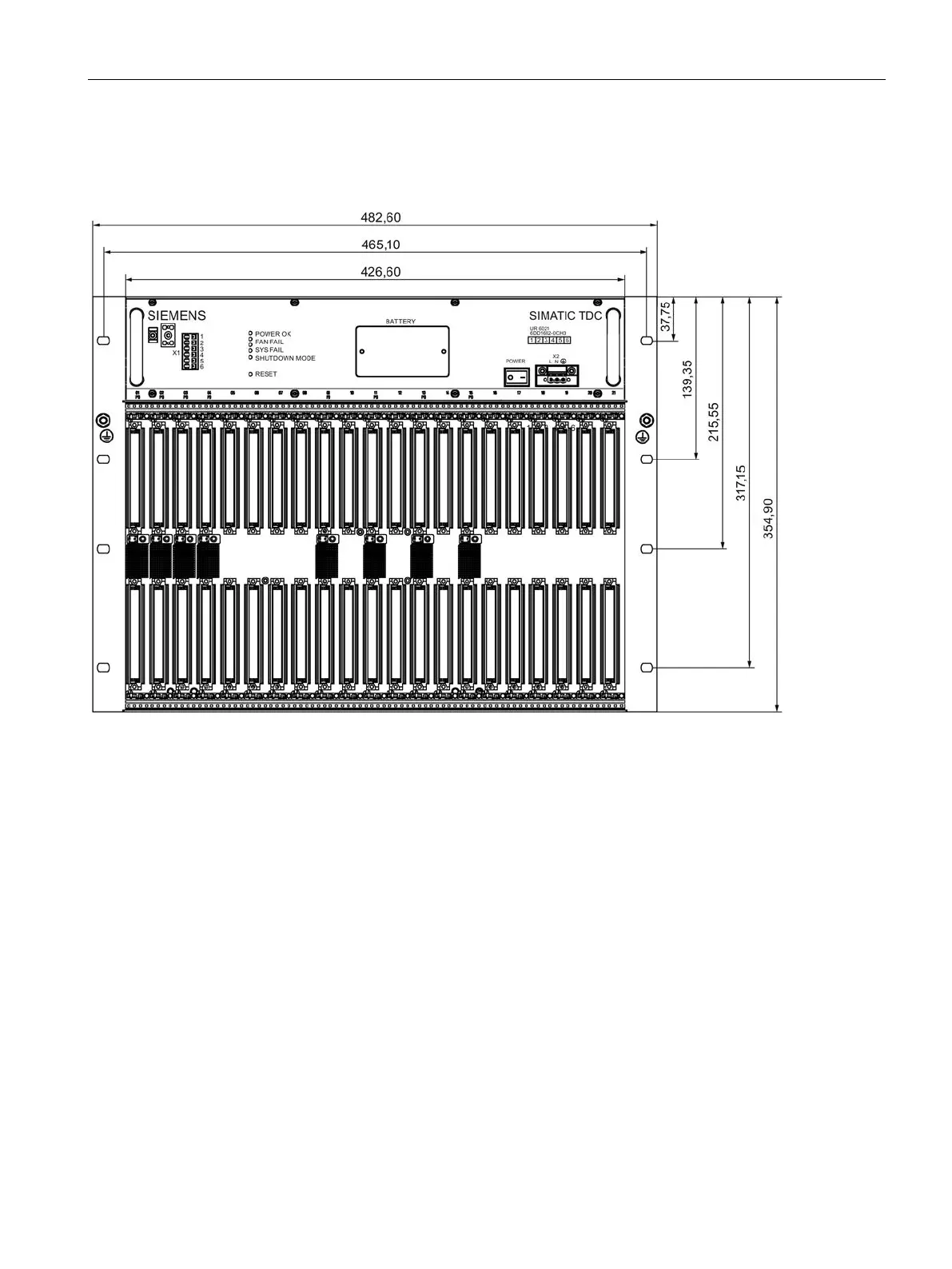

Figure 3-3 Dimension drawing of rack UR6021
