Technical data
10.5 Mounting positions
BA 2030 (2KJ4)
106 Operating Instructions, 07/2020, A5E50009094A/RS-AL

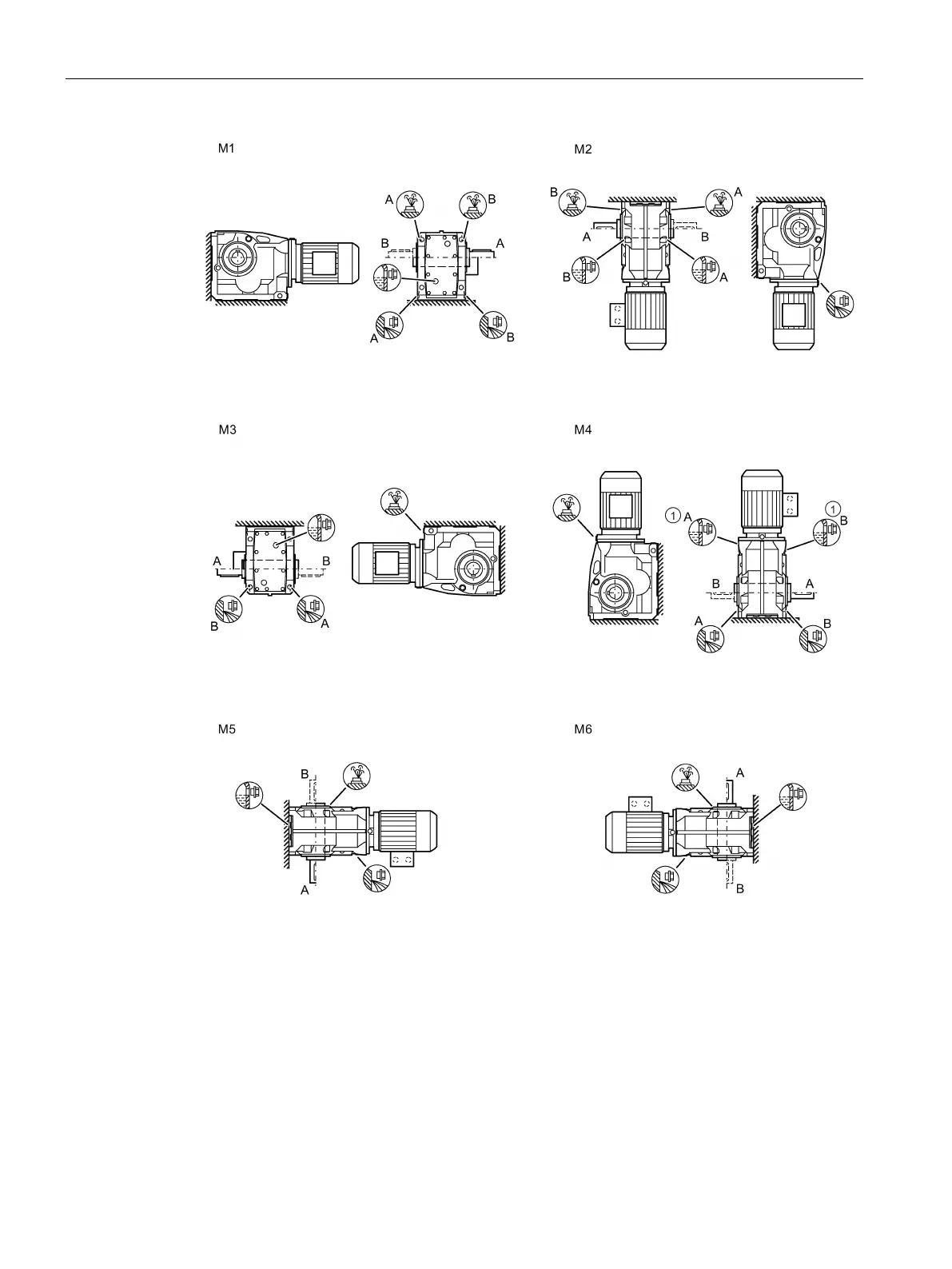

Figure 10-22 Mounting positions for bevel gearbox K. foot-mounted design, sizes 39 - 189
