Technical data
10.5 Mounting positions
BA 2030 (2KJ4)
Operating Instructions, 07/2020, A5E50009094A/RS-AL
109
10.5.6 Helical worm gearbox

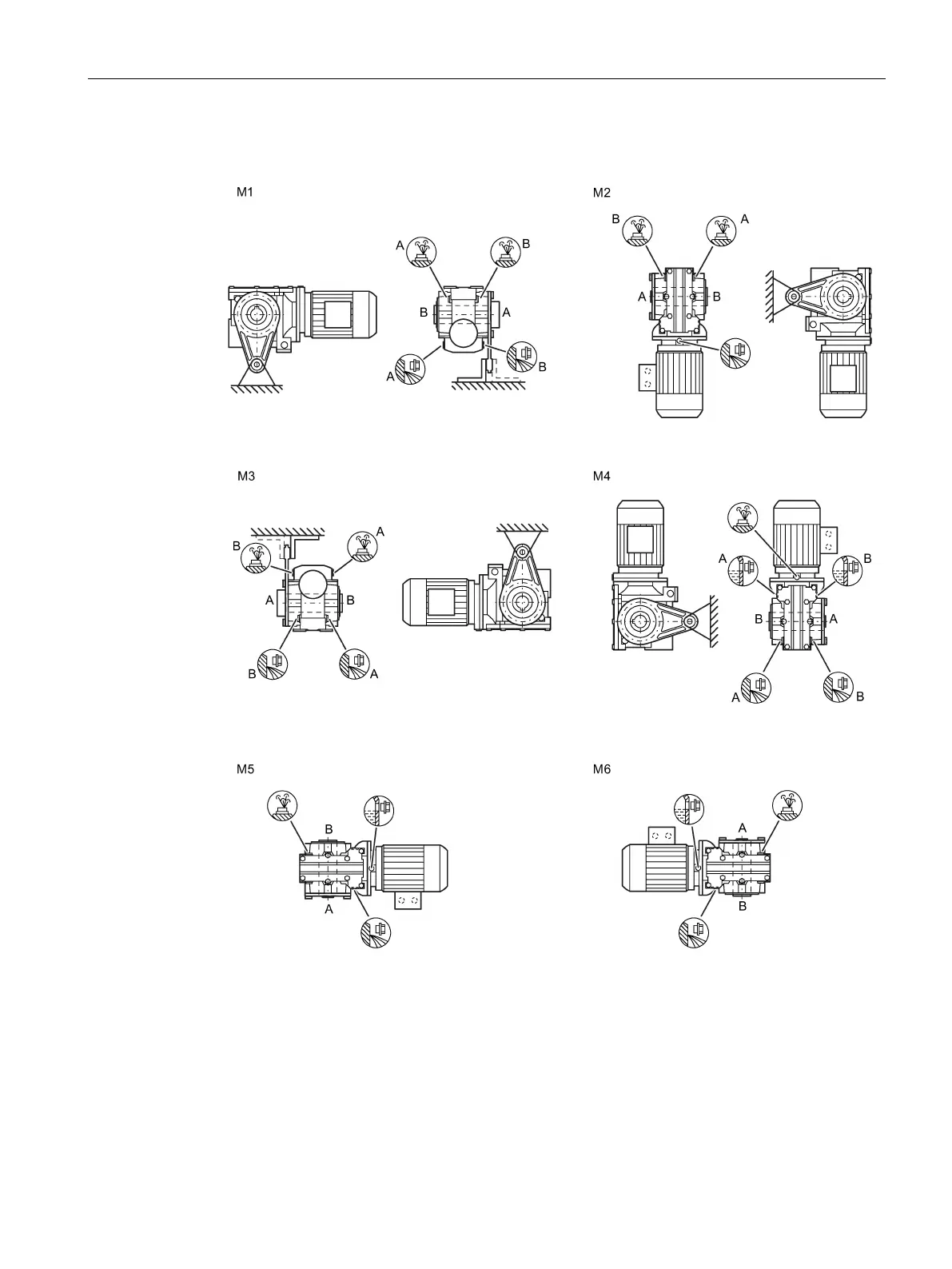

Figure 10-25 Mounting positions for helical worm gearbox CAD torque arm-mounted design, size 29
