4 Installing Router Kit components in the installation enclosure
4.2 Installing the Router Kit WLAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 13
8. Secure the DIN rail with two combi screws.
Screw in the combi screws with a washer, high-tension spring washer and hexagon nut
from the rear of the installation enclosure.

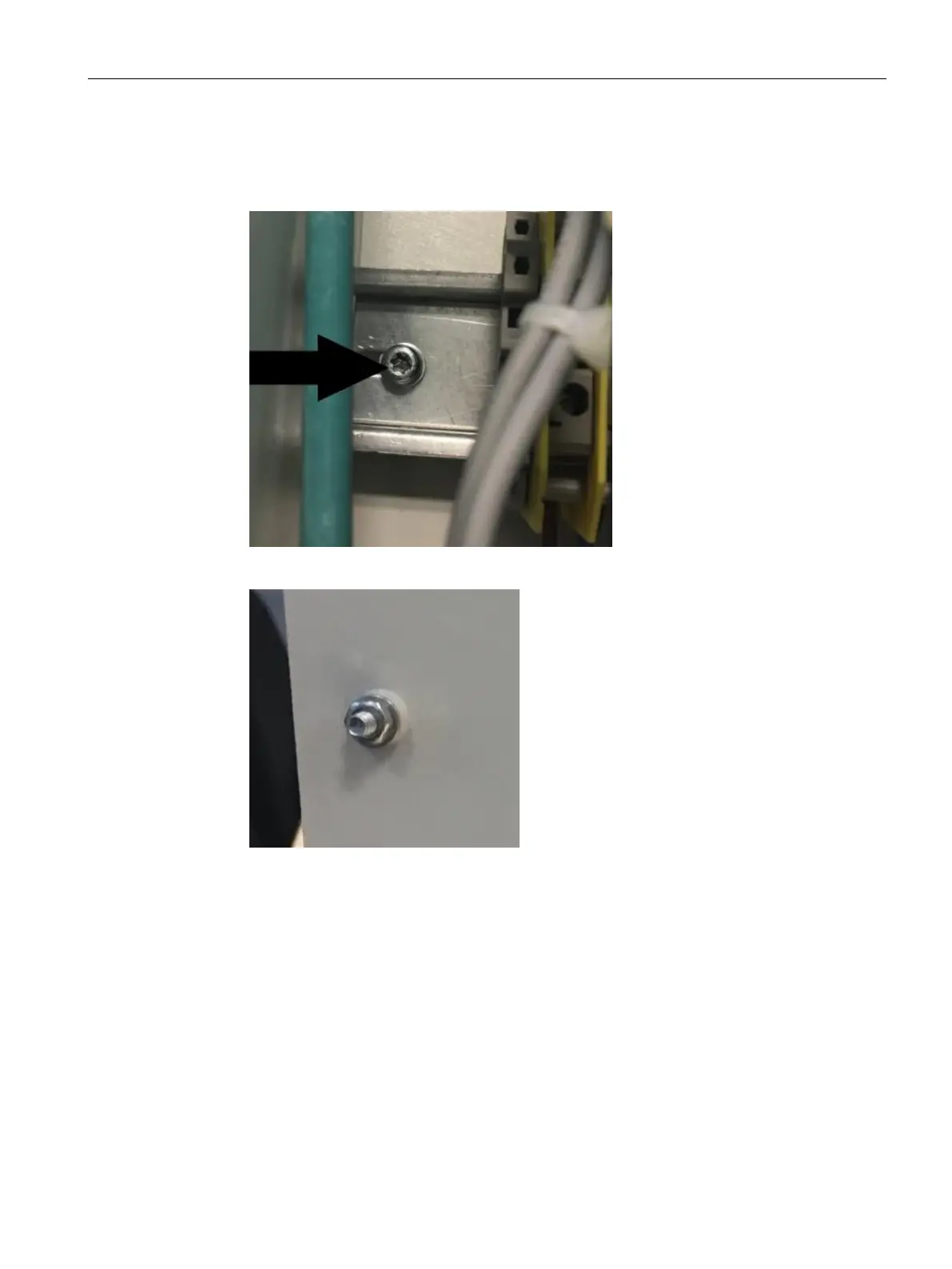

Figure 4-4 View of front, secured combi screw
Figure 4-5 View of rear, secured combi screw with washer, spring washer and nut
9. Insert the SIM card into SCALANCE M876-4.
