4 Installing Router Kit components in the installation enclosure
4.4 Installing the Router Kit WLAN / LAN in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 23
4.4 Installing the Router Kit WLAN / LAN in the installation enclosure
Procedure
16. Drill two fastening holes in the installation enclosure.

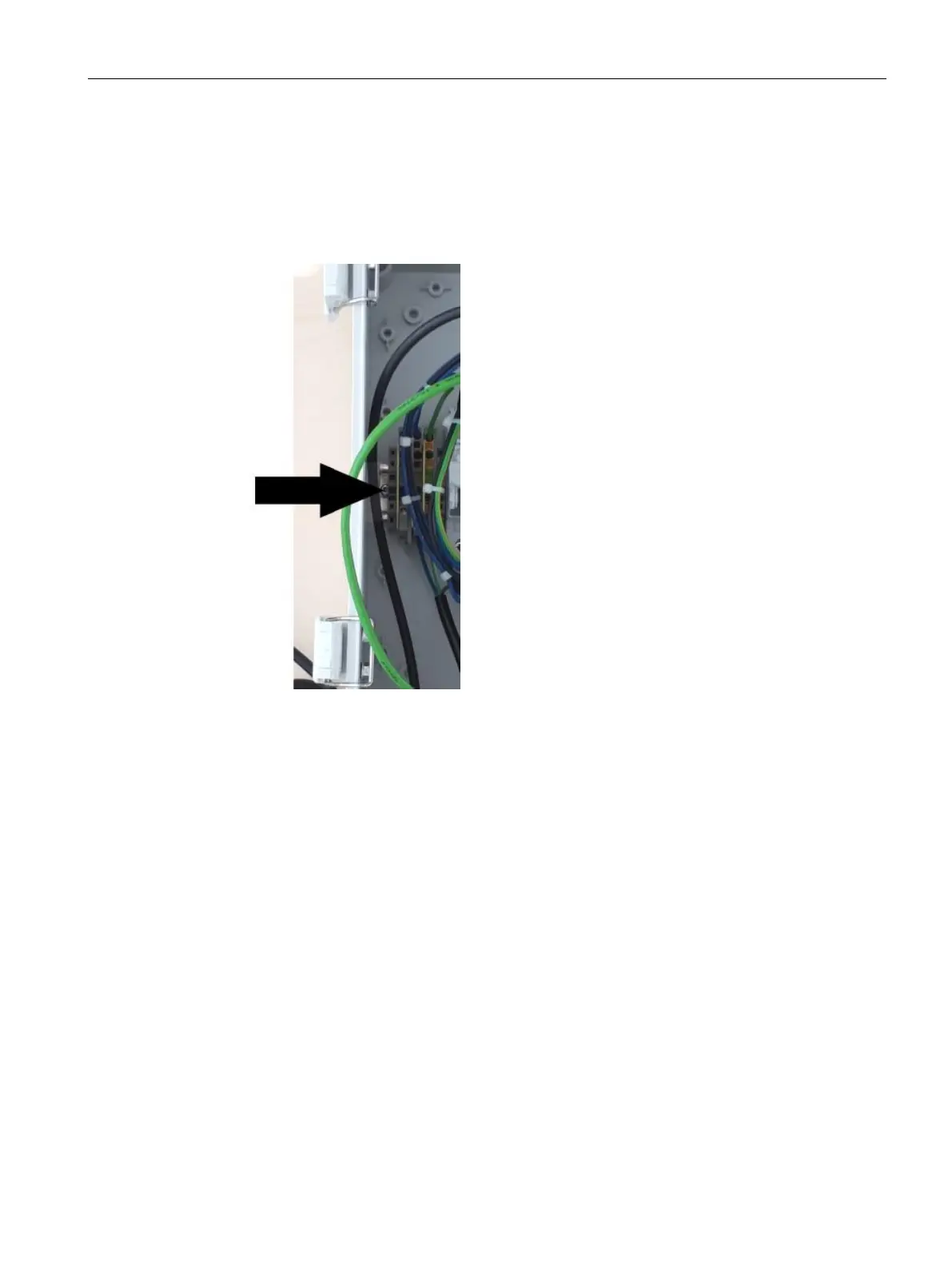

Figure 4-13 Drill hole on the left with DIN rail and components already installed
