7 Commissioning the Router Kit LAN / LTE
7.3 Configuring SCALANCE M876-4
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 93
7.3.3 Making settings in the wizard
Procedure
21. Start the wizard.
22. In the "IP" tab, enter the IP address of the LTE module (192.168.1.1).

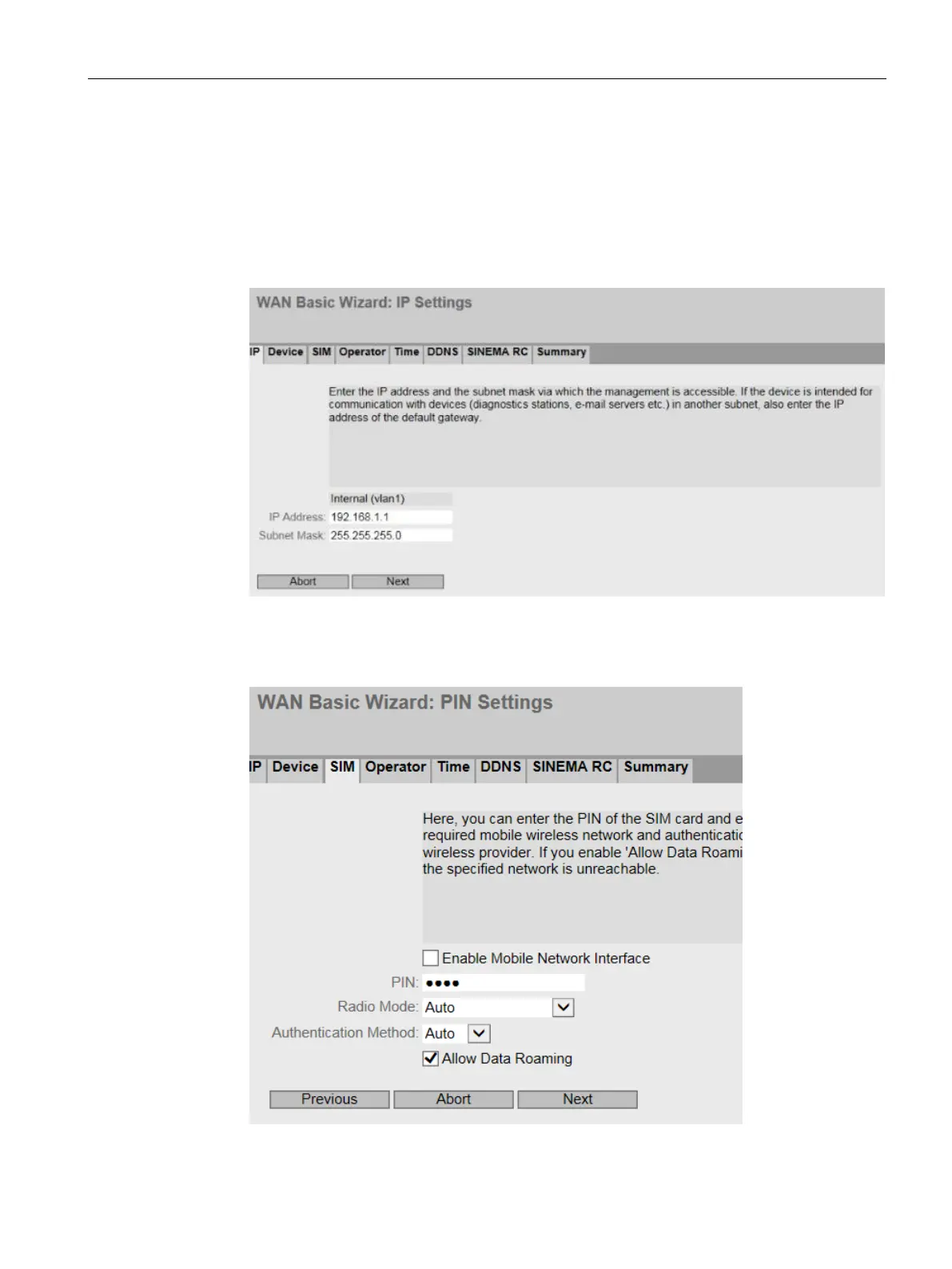

Figure 7-9 Entering the IP address of the LTE module
23. In the "SIM" tab, enter the PIN of the SIM card, remove the check mark for "Enable
Mobile Network Interface" and set the check mark for "Allow Data Roaming".
Figure 7-10 Entering the PIN of the SIM card
