Siemens SIMOTICS CONNECT 400 Manual

6 Commissioning the Router Kit WLAN / LAN
6.2 Preparing the hardware
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 70
95. Check your settings in the "Summary" tab and click "Set Values".

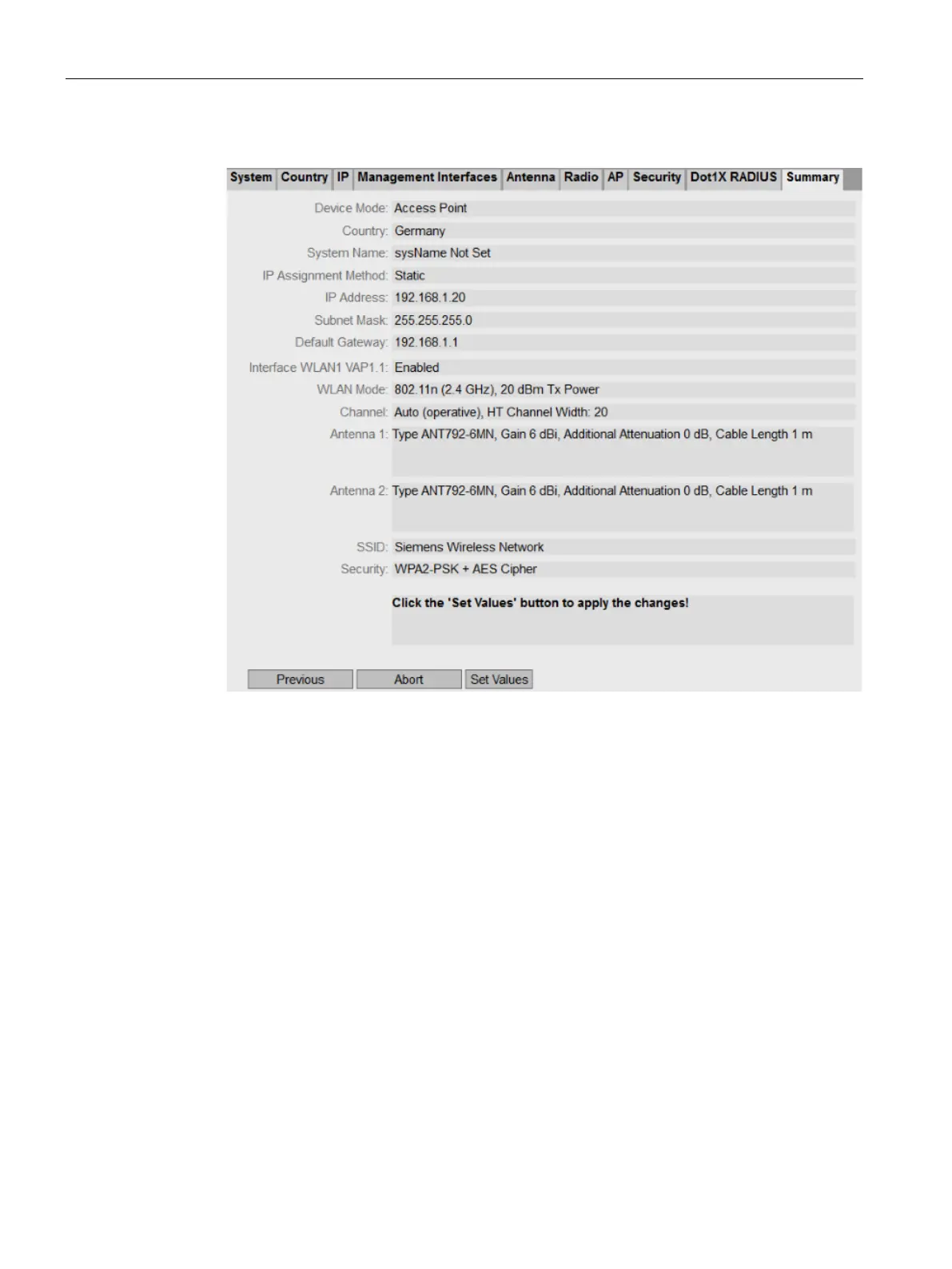

Figure 6-11 Wizard summary
96. So that the system time remains current even after a restart, configure the system time
under "System > System Time" in the "NTP Client" tab.
The manual time setting in the "Manual Settings" tab is reset after a restart.
6.2 Preparing the hardware
Requirements
All components are installed as described under "Installing the Router Kit WLAN / LAN in the
installation enclosure (page 23)".
Procedure
97. Attach the LAN cable between the WLAN module (SCALANCE W774-1) and a PC with
adapter.
98. Supply the Router Kit with a voltage of 230 V AC (SITOP PSU100C).
