4 Installing Router Kit components in the installation enclosure
4.6 Installing the Router Kit LAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 34
4.6 Installing the Router Kit LAN / LTE in the installation enclosure
Procedure
25. Drill two fastening holes in the installation enclosure.

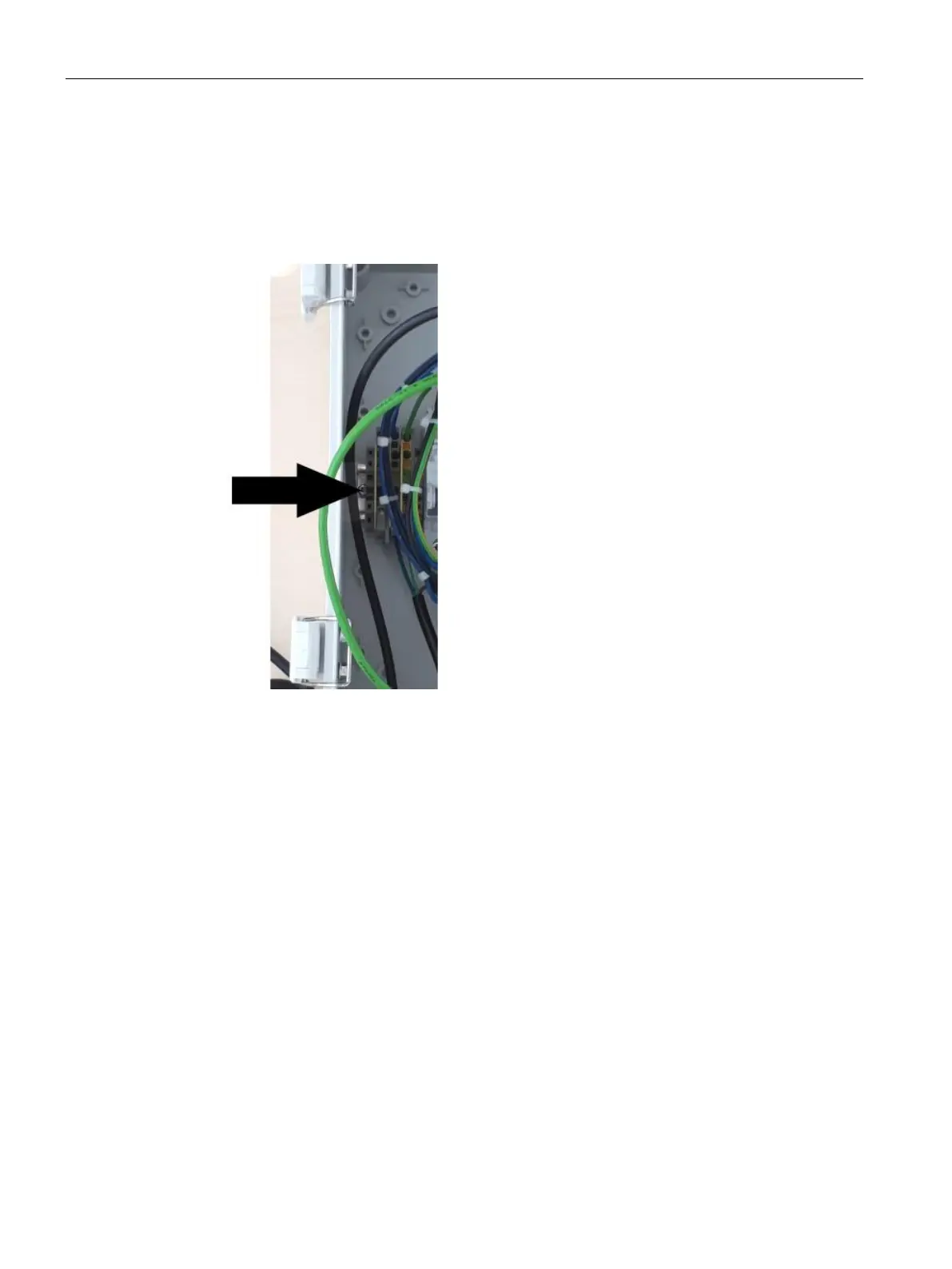

Figure 4-23 Drill hole on the left with DIN rail and components already installed
