4 Installing Router Kit components in the installation enclosure
4.6 Installing the Router Kit LAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 36
27. Secure the DIN rail with two combi screws.
Screw in the combi screws with a washer, high-tension spring washer and hexagon nut
from the rear of the installation enclosure.

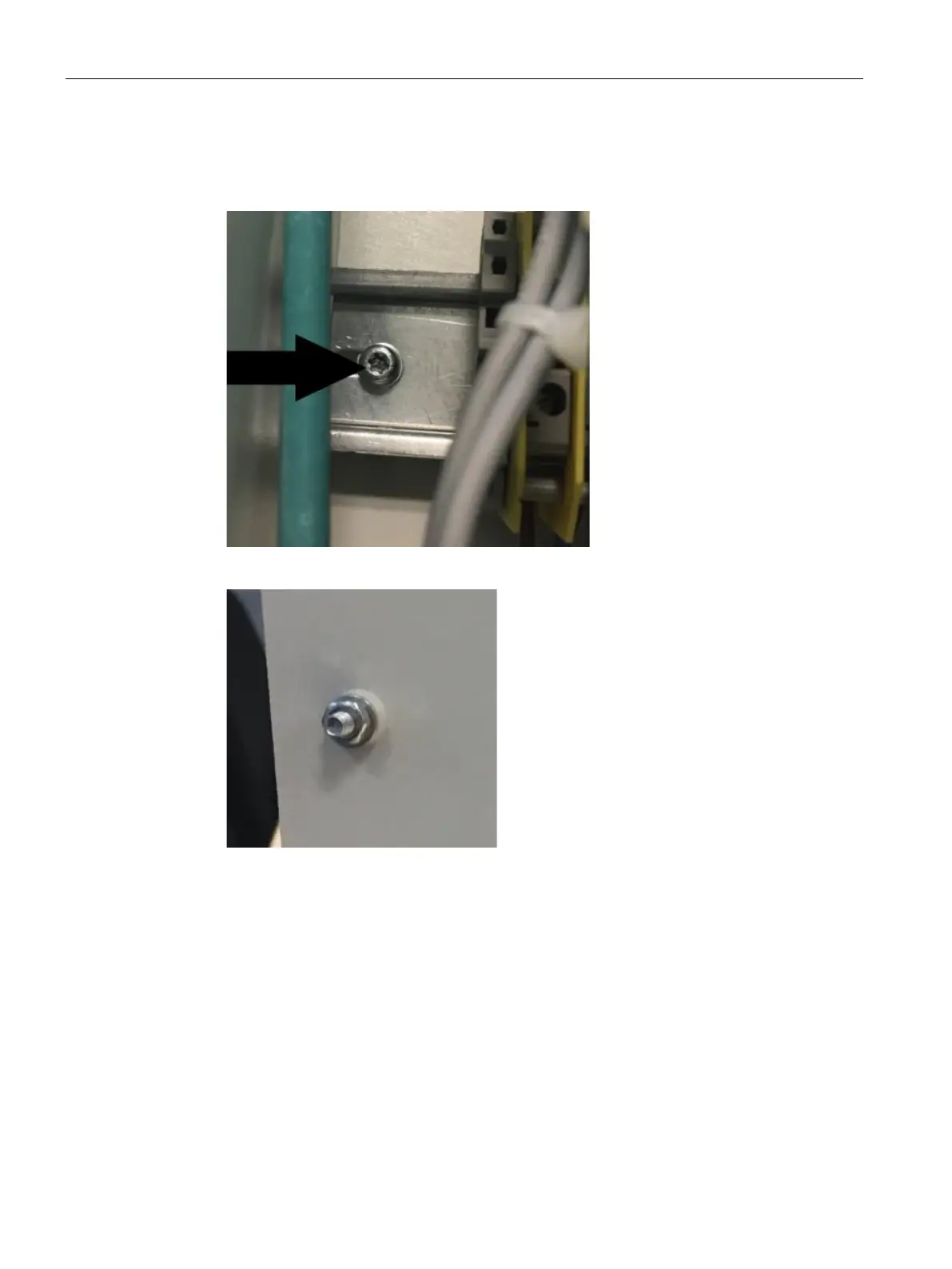

Figure 4-25 View of front, secured combi screw
Figure 4-26 View of rear, secured combi screw with washer, spring washer and nut
