4 Installing Router Kit components in the installation enclosure
4.6 Installing the Router Kit LAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 39
30. Attach the two universal terminals (gray) with intermediate plates (yellow) to the DIN rail.

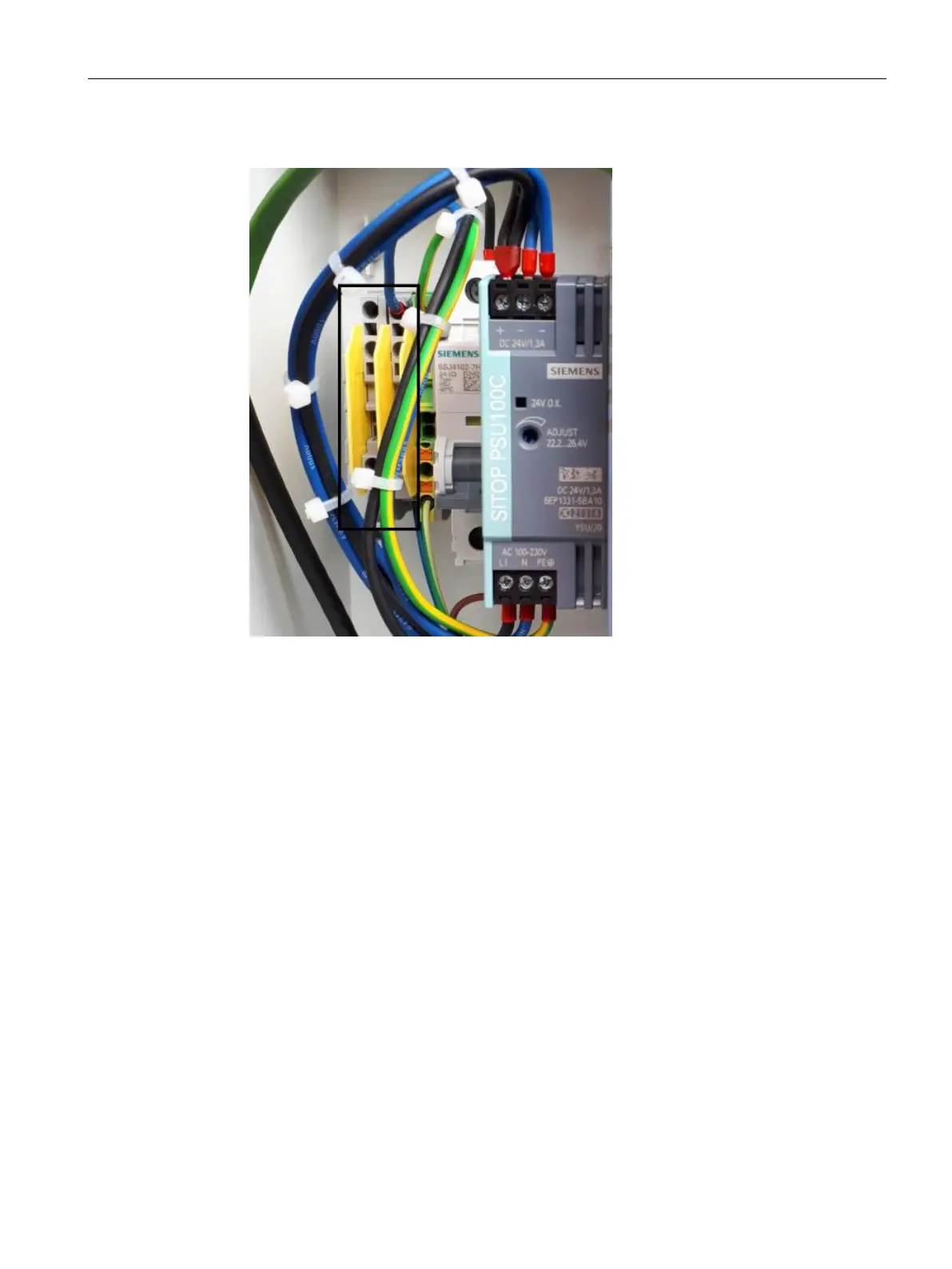

Figure 4-29 Gray universal terminals with yellow intermediate plates
