4 Installing Router Kit components in the installation enclosure
4.6 Installing the Router Kit LAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 41
32. Pull the cables through the pre-drilled holes at the bottom and secure the cable glands
with the locknuts.

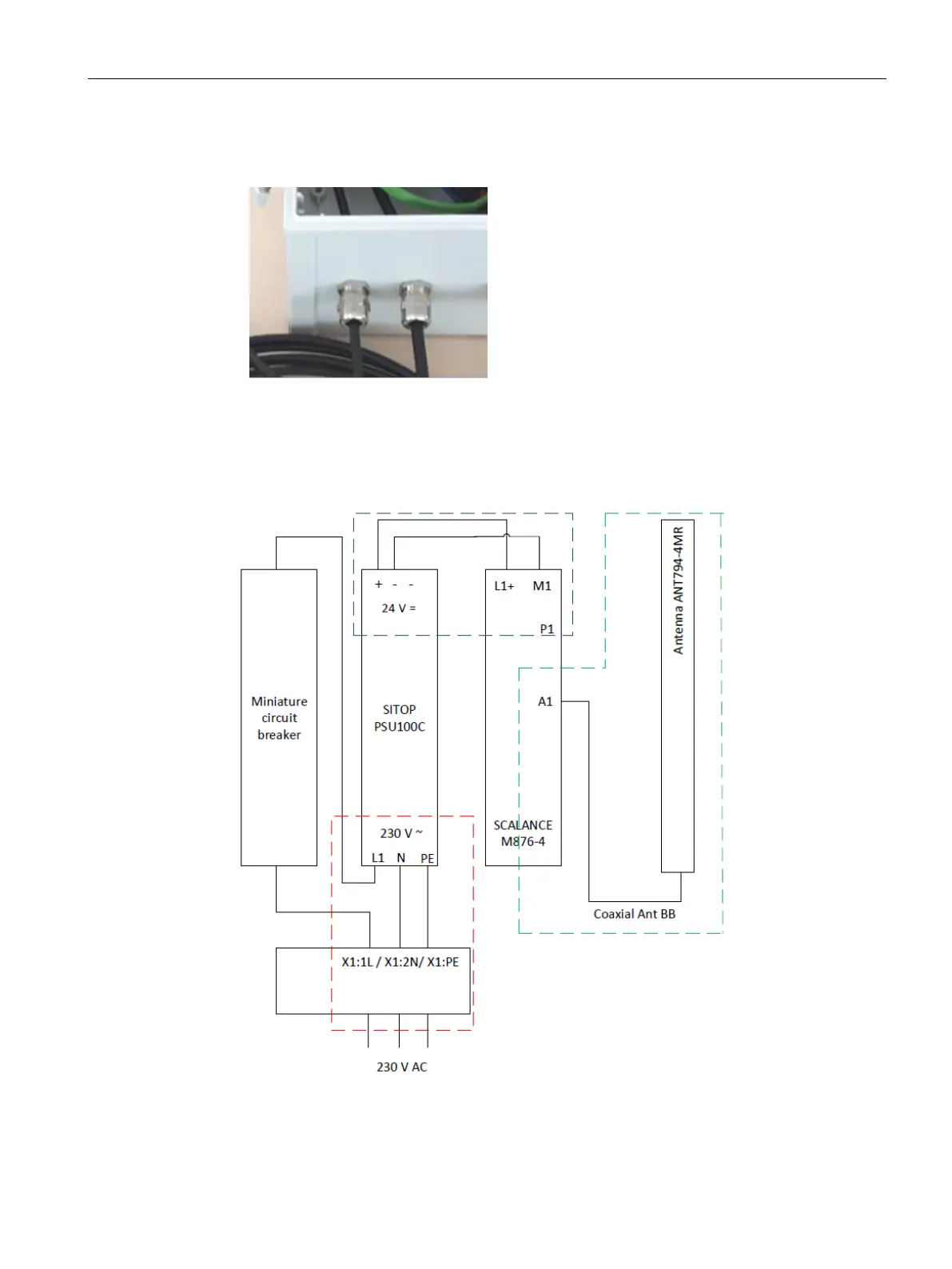

Figure 4-30 Attached cable glands
33. Wire the elements as shown in the terminal connection diagram.
Figure 4-31 Terminal connection diagram
