6 Commissioning the Router Kit WLAN / LAN
6.1 Configuring the SCALANCE W774-1
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 68
92. In the "AP" tab, set the channel from a channel plan.
Note
Setting the channel plan
Create a plant-specific channel plan. You need knowledge relating to WLAN for this.
Channel selection
Only specific channels are available depending on the selected user country. This must
be taken into consideration in the SCALANCE setting; otherwise, SIMOTICS
CONNECT 400 will not be available in the WLAN.

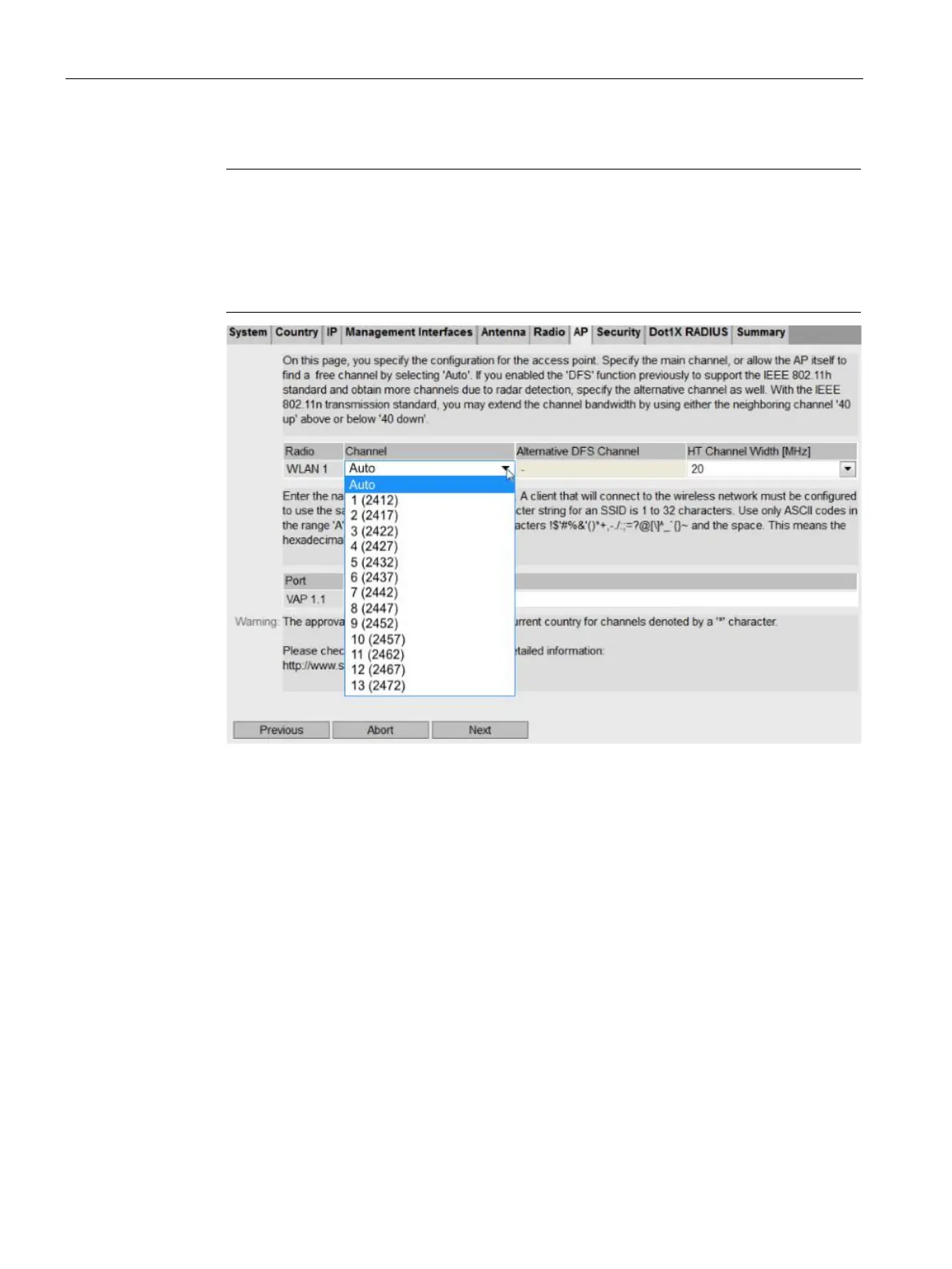

Figure 6-9 Selecting the channel
93. In the "AP" tab, enter the desired WLAN name next to the port setting under "SSID".
