5
.

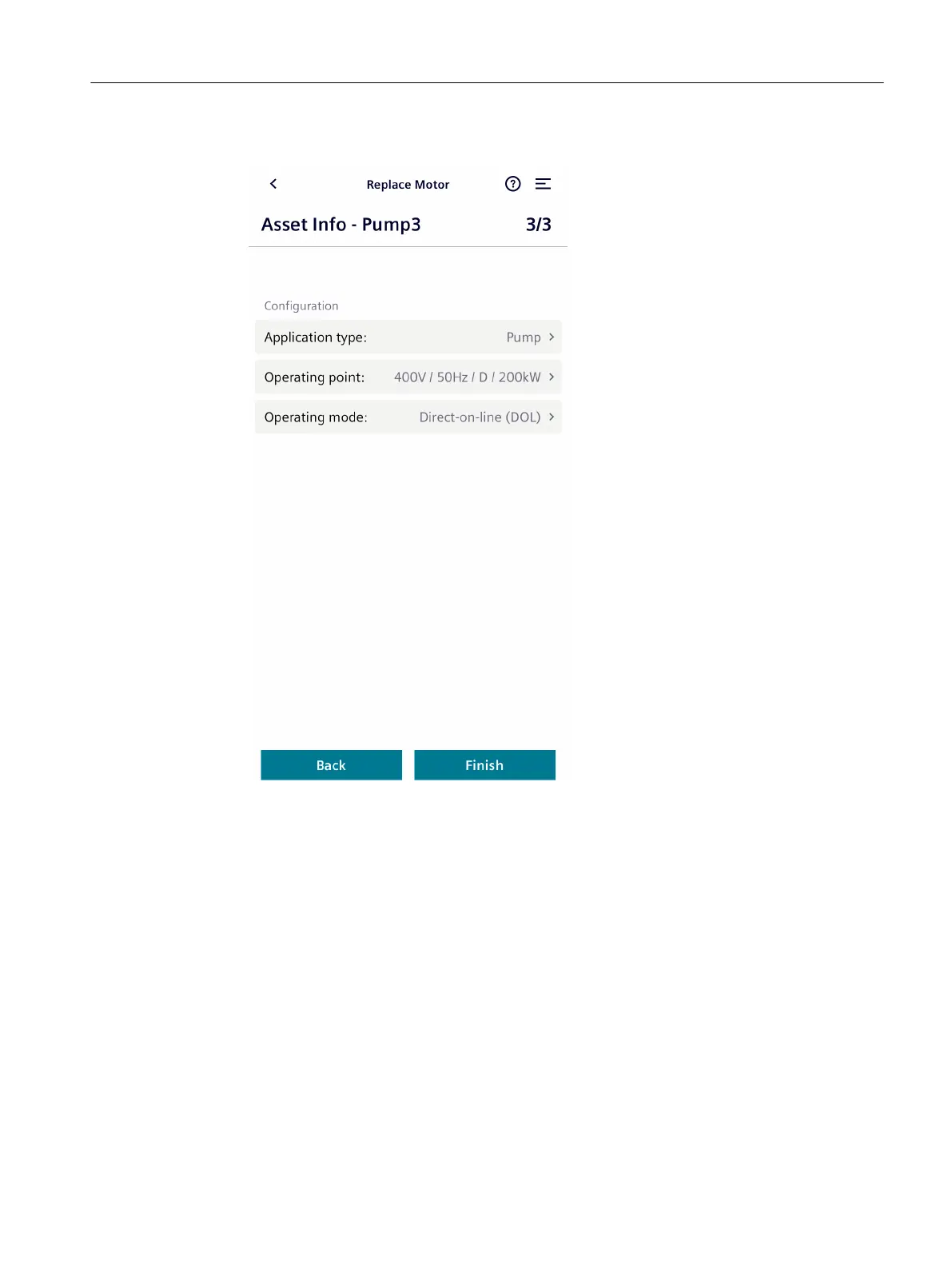

Exit step 3/3 using the "F
inish" button.
6
.
Complet
e the replacement pr
ocess using butt
on "Replace Mot
or".
Maintenance
8.7î™ Replacing a motor (iOS)
SIMOTICS C
ONNECT 400
Operating Instructions, 04/2023, A5E50161952B AL
193
194
196
Table of Contents
Table of Contents
5
Introduction
9
About SIMOTICS
9
About SIMOTICS (Detailed)
10
About this Manual
11
Content
11
Target Group
11
Standard Scope
11
Websites of Third-Party Companies
12
SIMOTICS Documentation
13
Service and Support
14
Siemens Industry Online Support on the Web
14
Siemens Industry Online Support on the Road
14
Feedback on the Technical Documentation
15
Mysupport Documentation
16
Technical Support
16
Training
17
Spare Parts Services
17
Important Product Information
18
Correct Use
18
Openssl
18
Compliance with the General Data Protection Regulation
19
Safety Instructions
21
General Safety Instructions
21
Qualified Personnel
22
Security Information
23
Description
25
SIDRIVE IQ Fleet
25
SIMOTICS CONNECT 400" Connectivity Module
26
Preparations for Use
29
Visual Inspection
29
Shipping and Storage Conditions
30
Requirements
31
Mounting and Installation
33
Installing the Mounting Bracket
34
Mounting the Connectivity Module
37
Commissioning
39
Requirements
39
Commissioning with Android
40
Installing the "SIDRIVE IQ Config" Application
40
Establishing the Connection to the Connectivity Module
40
Log in with the Connectivity Module
42
Guided Commissioning
45
Starting the Commissioning Wizard
45
Device Credentials - Step 1/7
45
Wi-Fi - Step 2/7
47
Firmware - Step 3/7
48
Intervals - Step 4/7
51
Mindsphere Access - Step 5/7
52
Motor Details - Step 6/7
55
Asset Info (Motor Monitoring) - Step 7/7
64
Asset Info (Generic Vibration Monitoring) - Step 7/7
71
Commissioning with Ios
76
Installing the "SIDRIVE IQ Config" Application
76
Establishing the Connection to the Connectivity Module
76
Log in with the Connectivity Module
80
Guided Commissioning
81
Starting the Commissioning Wizard
81
Device Credentials - Step 1/7
82
Wi-Fi - Step 2/7
84
Firmware - Step 3/7
85
Intervals - Step 4/7
88
Mindsphere Access - Step 5/7
89
Motor Details - Step 6/7
91
Asset Info (Motor Monitoring) - Step 7/7
100
Asset Info (Generic Vibration Monitoring) - Step 7/7
106
Operation
111
Operation with Android
112
Offboarding Process Using the "SIDRIVE IQ Config" Application
112
Initiating the Offboarding Process
112
Logging in to Mindsphere
114
Executing the Offboarding Process
116
Identifying the Connectivity Module Via the "SIDRIVE IQ Config" Application
116
Changing the Measuring and Send Cycles
117
Changing the User Data of the Connectivity Module
119
Check Asset Data
120
Operation with Ios
123
Offboarding Process Using the "SIDRIVE IQ Config" Application
123
Identifying the Connectivity Module Via the "SIDRIVE IQ Config" Application
125
Changing the Measuring and Send Cycles
126
Changing the Device Credentials of the Connectivity Module
128
Check Asset Data
129
Maintenance
131
Updating the Software and Firmware (Android)
132
Updating the "SIDRIVE IQ Config" Application
132
Updating the Connectivity Module Firmware
132
Updating Software and Firmware (Ios)
135
Updating the "SIDRIVE IQ Config" Application
135
Updating the Connectivity Module Firmware (Ios)
135
Basic Functions (Android)
137
Basic Functions (Ios)
139
Replacing the Connectivity Module
141
Replacing the Connectivity Module (Hardware)
141
Commissioning the Connectivity Module after Hardware Replacement (Android)
142
Starting the Module Replacement Wizard
142
Device Credentials - Step 1/7
142
Wi-Fi - Step 2/7
144
Firmware - Step 3/7
145
Intervals - Step 4/7
148
Mindsphere Access - Step 5/7
149
Asset Overview - Step 6/7
153
Replacement Reason - Step 7/7
155
Commissioning the Connectivity Module after Hardware Replacement (Ios)
159
Starting the Module Replacement Wizard
159
Device Credentials - Step 1/7
159
Wi-Fi - Step 2/7
161
Firmware - Step 3/7
162
Intervals - Step 4/7
165
Mindsphere Access - Step 5/7
166
Asset Overview - Step 6/7
169
Replacement Reason - Step 7/7
171
Replacing a Motor (Android)
176
Start the Motor Replacement Wizard
176
Mindsphere Access
177
Replacement Reason - Step 1/3
178
New Motor Data - Step 2/3
179
Asset Info - Step 3/3
181
Replacing a Motor (Ios)
187
Starting the Motor Replacement Wizard
187
Mindsphere Login
188
Replacement Info - Step 1/3
189
New Motor Data - Step 2/3
190
Asset Info - Step 3/3
192
Replace the Battery
198
Changing the Attachment Position of the Mounting Bracket
200
Disposal
201
Disposing of the Connectivity Module
202
Disposing of the Battery
203
Further Information
205
Product Information
205
Product Support
206
Technical Data
208
Directives and Standards
211
Index
215
