3. For "Motor Monitoring", using the "Next" button you synchronize with the cloud. If the motor
data set is present in the digital twin database, you go on to Step 7/7 - Asset Info.

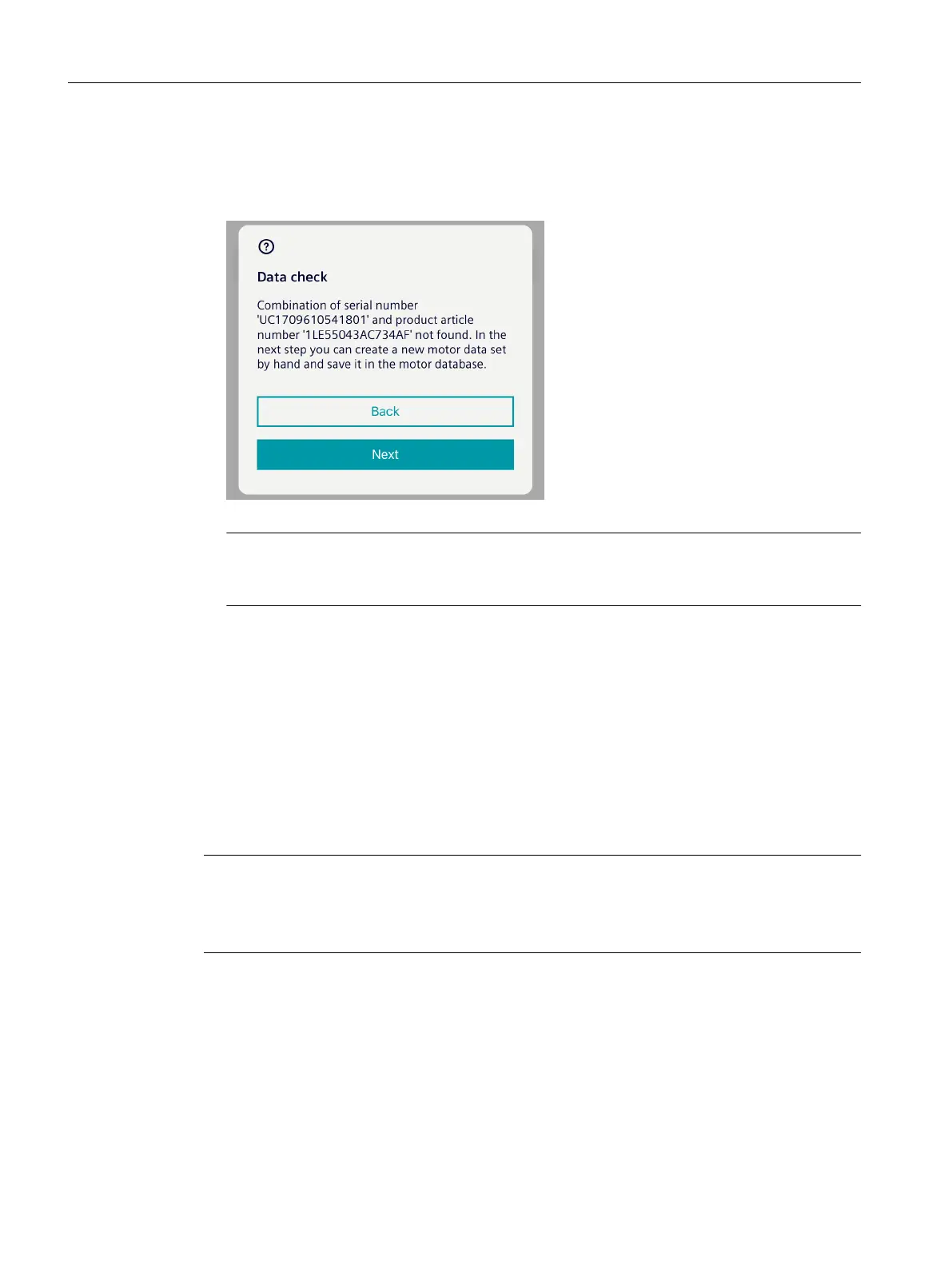

If there is no data set for your motor in the digital twin database, e.g. for motor models from
before 2011 or for motors of other manufacturers, the following message is displayed:
Note
If you selected "Generic Vibration monitoring", then synchronization with the cloud does not
take place. The values that were entered are used to identify the asset.
4. With the "Back" button, you can check the data that you entered and correct them if
necessary.
With the "Next" button, you call up the dialog box to create a new motor data set. This step
is only relevant for "Motor Monitoring".
If the motor is not found in the motor database by a combination of the serial number and
the product article number, you will have to enter the motor data yourself and save them in
the database. This applies both to Siemens motors and to motors of other manufacturers.
Proceed as described below to create a new motor data set.
Procedure - Creating a new motor data set
Note
Settings cannot be modied subsequently
Select the following settings carefully. There is no way of modifying the settings after
onboarding. A subsequent change can only be made by Siemens Service (Page204).
Creating a new motor data set is explained using the following rating plate as example.
Commissioning
6.3Commissioning with iOS
SIMOTICS CONNECT 400
92 Operating Instructions, 04/2023, A5E50161952B AL
