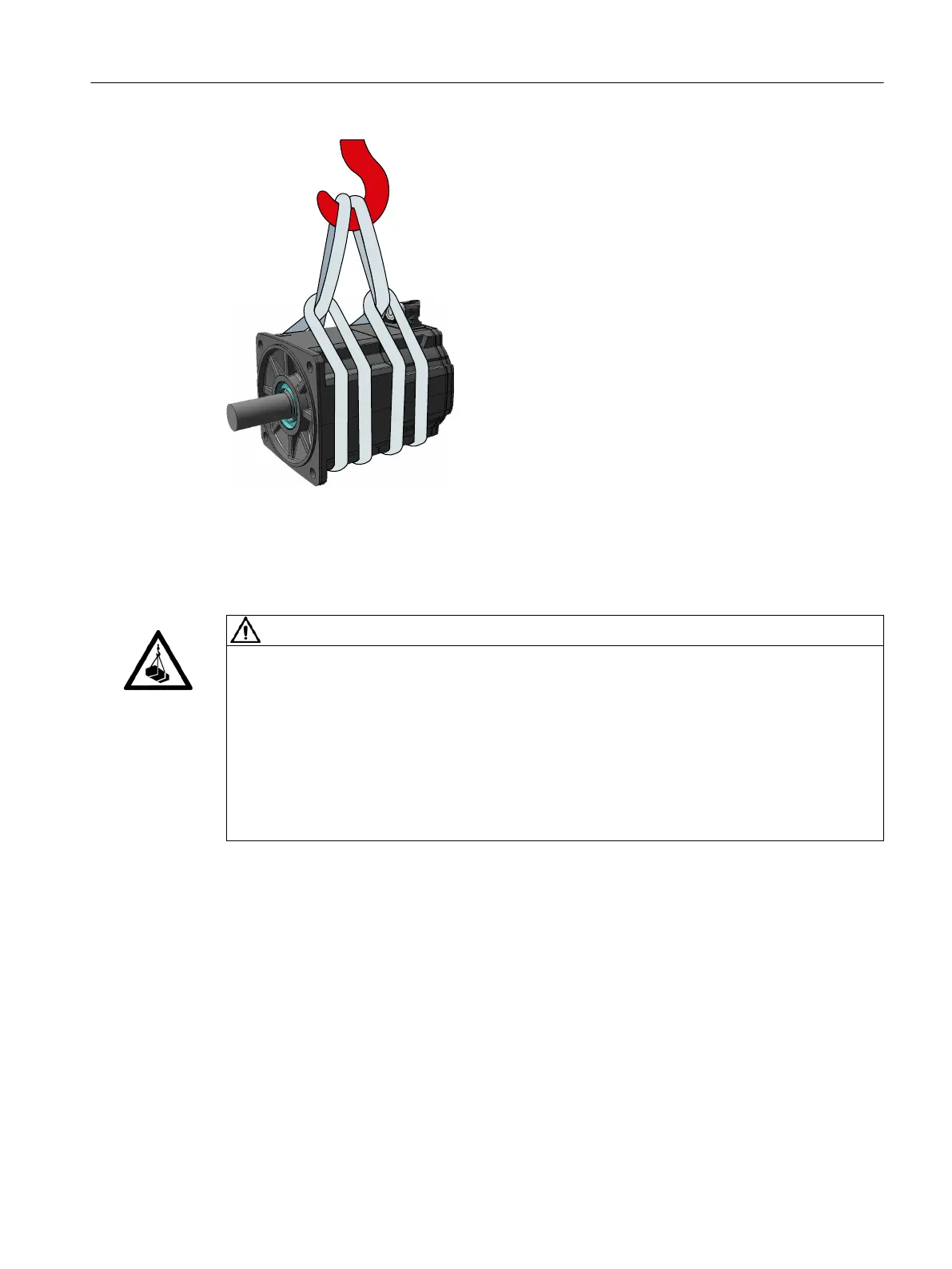

Figure 4-1 Lifting and transporting with lifting slings (example diagram)
Procedure for lifting and transporting using eyebolts
For the 1F☐2☐10 motors, you can use eyebolts and a crossbar for lifting and transporting.
WARNING
Incorrect or unused lifting points
Due to incorrect or unused lifting points, the motor can fall and cause death, severe injury and/
or damage to property.
• Only lift and transport larger motors using the eyebolts screwed on to the end shields.
• Completely screw in the eyebolts and tighten by hand (approx. 8 Nm).
• Do not use bent or damaged eyebolts.
• Only use eyebolts with laminated ber washers.
• Loads applied transversely to the plane of the eyebolts are not permitted.
Preparing for use
4.2 Transportation and storage
SIMOTICS S-1FK2 synchronous motors for SINAMICS S120
Operating Instructions, 02/2022, A5E46089564B AD 53
