Siemens SIMOTICS Series - 1 Fe209.-8 C

Dimensional drawings
12.2 Motors in asynchronous version
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
199
12.2.2 1FE209.-8C...-..A.

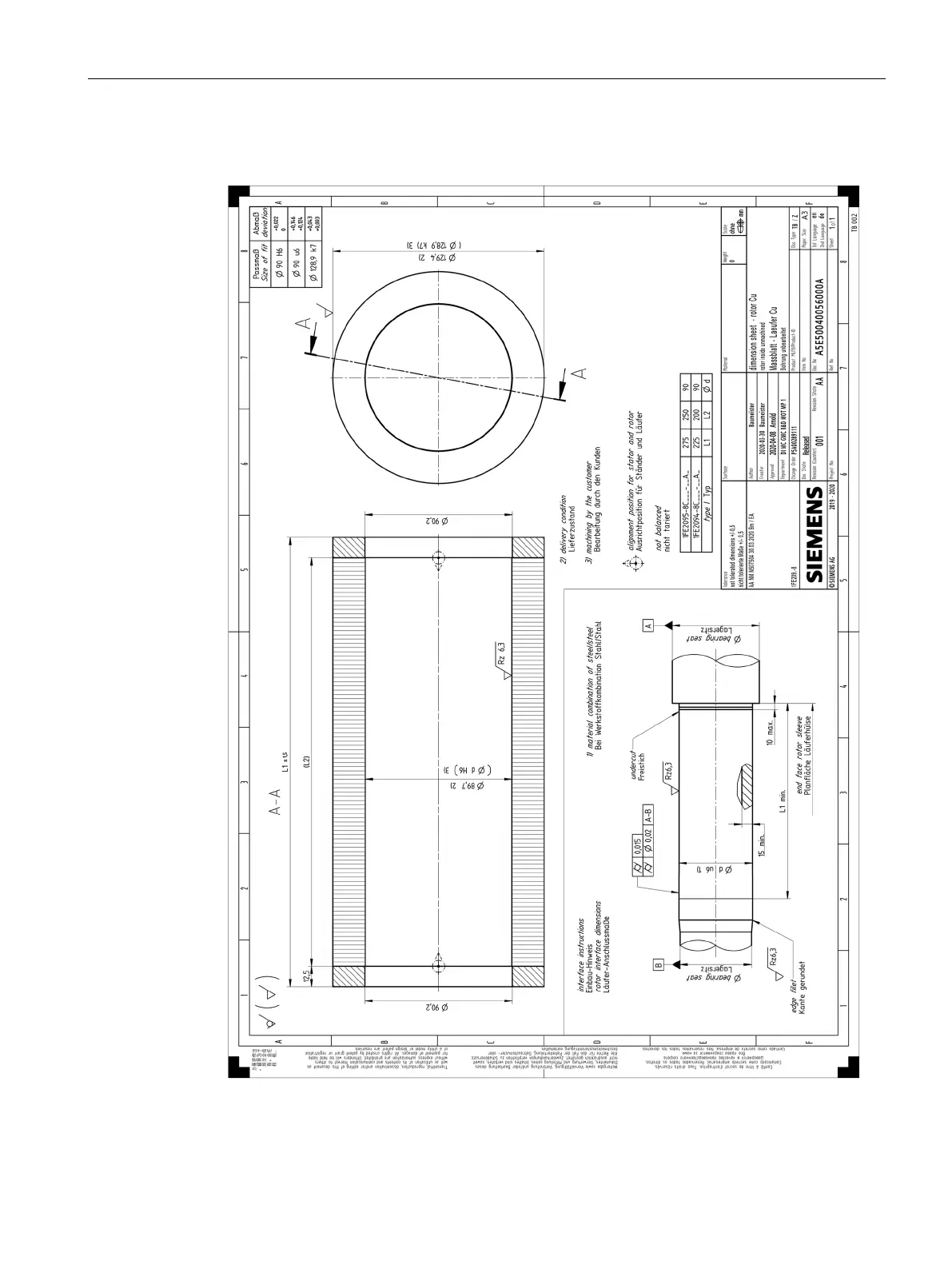

Figure 12-8 1FE209☐ rotor Cu
