Mechanical mounting
6.7 Permissible motor vibrations
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
133
6.7 Permissible motor vibrations
The following effects can increase motor vibration values:
● The on-site system vibration characteristics depend on factors such as the output
elements, mounting conditions, alignment and installation
● Effects of external vibrations
Ensure that the vibration values conform to project specifications and the following tables are
not exceeded at the specified measuring points on the motor.
Observe the notes for measuring points, measurement and evaluation according to ISO
10816.
If necessary, balance the rotor with the drive system completely.
Maximum permitted radial vibration values
Table 6- 8 Maximum permitted radial vibration values
Vibration frequency
Vibration values
< 6.3 Hz
Vibration displacement s ≤ 0.16 mm
6.3 - 250 Hz
Vibration velocity v
rms
≤ 4.5 mm/s
> 250 Hz
Vibration acceleration a ≤ 10 m/s
2
Maximum permitted axial vibration values
Vibration velocity
Vibration acceleration
v
rms
= 4.5 mm/s
a
peak
= 2.25 m/s
2

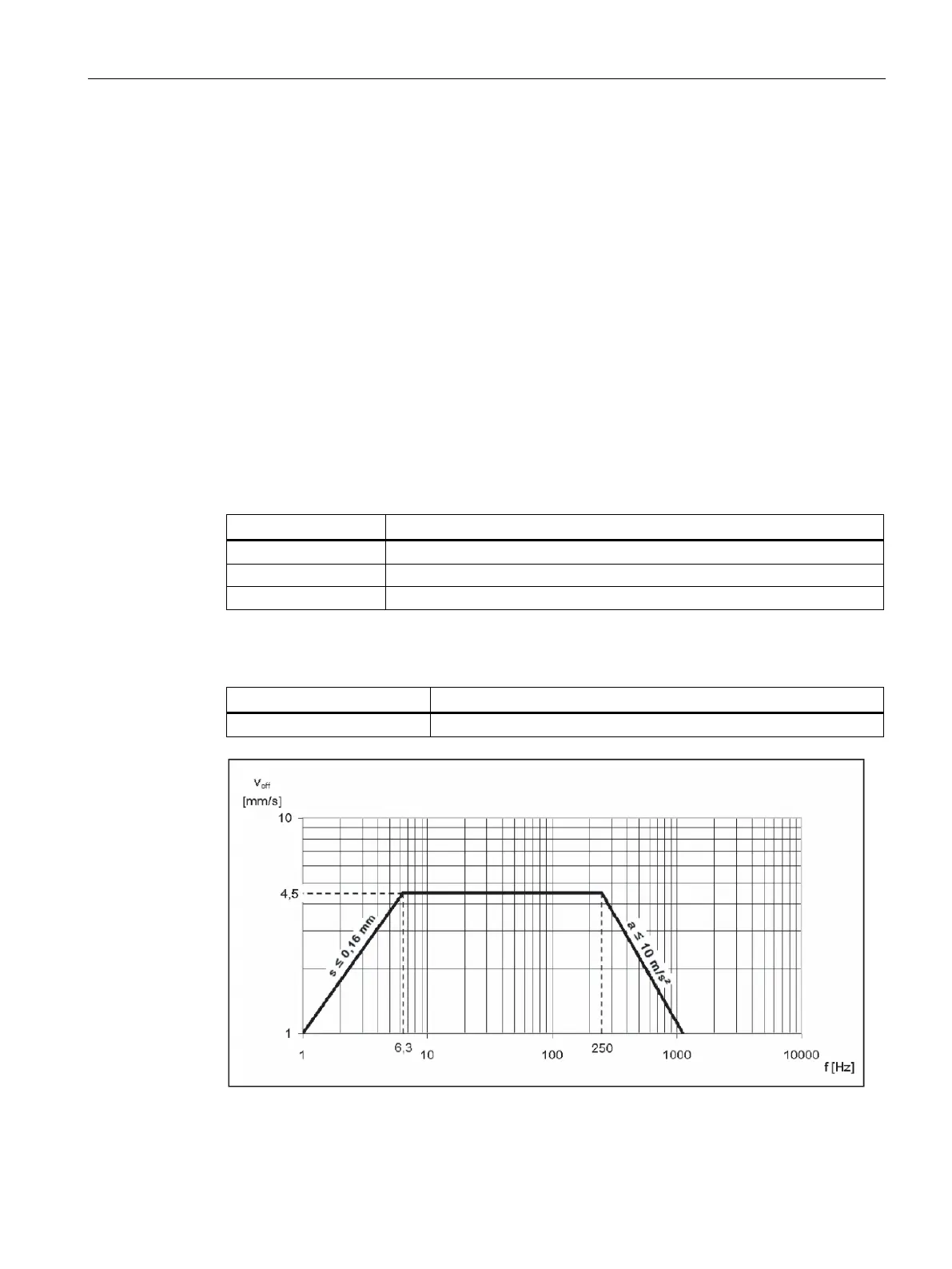

Figure 6-26 Maximum permissible vibration velocity taking into account the vibration displacement
and vibration acceleration
