Mechanical mounting
6.4 Installing the stator in the spindle housing
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
119
6.4.3 Mounting the stator with cooling jacket
6.4.3.1 Production equipment, assembly tools and other resources
To install the cooling jacket, you require the following production equipment, mounting tools
and other equipment.
Personal protection equipment
Personal protection equipment:
● Face protection shield
● Protective gloves
● Closed protective clothing for protection against high surface temperatures

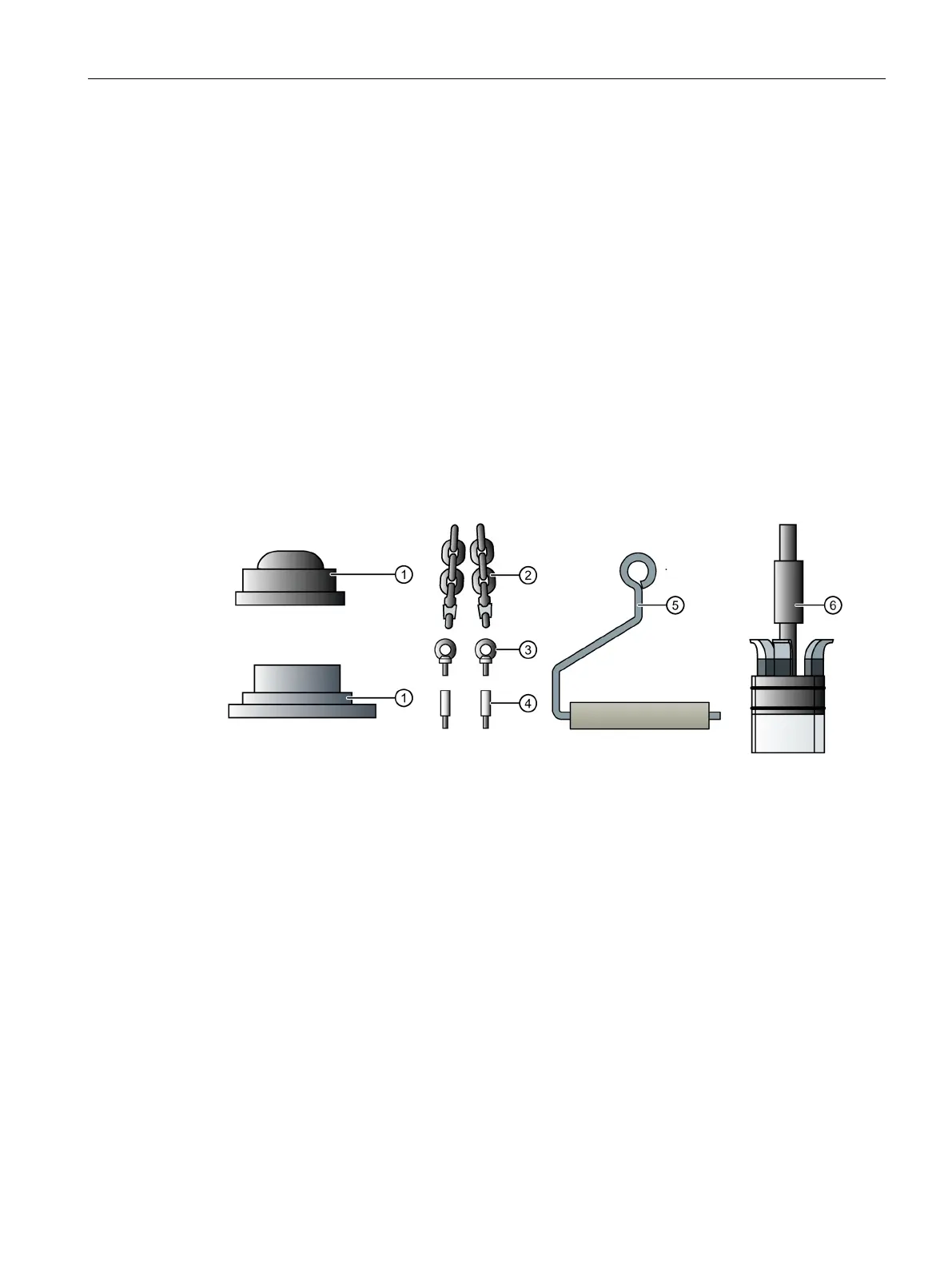

Mounting, production and auxiliary equipment for installation
1
Appropriate axial stops (examples)
2
Load suspension equipment (example)
3
Eyebolts
4
Spacing sleeves
5
Plastic-covered support arm for horizontal mounting (example)
6
Internal tensioning spindle (example)
Not
show
n
Anti-corrosion agent for steel surfaces
Grease or talcum as lubricants for Viton O-ring seals
Medium for the leak test with liquid
Water connection, maximum test pressure 0.7 MPa (7 bar).
