Siemens SIMOTICS Series Hardware Installation Manual

Mechanical mounting
6.4 Installing the stator in the spindle housing
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
115
6.4.2 Mounting the stator without cooling jacket
Note
The procedure described in the following chapter can be applied analogously to the
installation of a cooling jacket provided additionally by the customer.
6.4.2.1 Production equipment, assembly tools and other resources
To install the cooling jacket, you require the following production equipment, mounting tools
and other equipment.
Personal protection equipment
Personal protection equipment:
● Face protection shield
● Protective gloves
● Closed protective clothing for protection against high surface temperatures

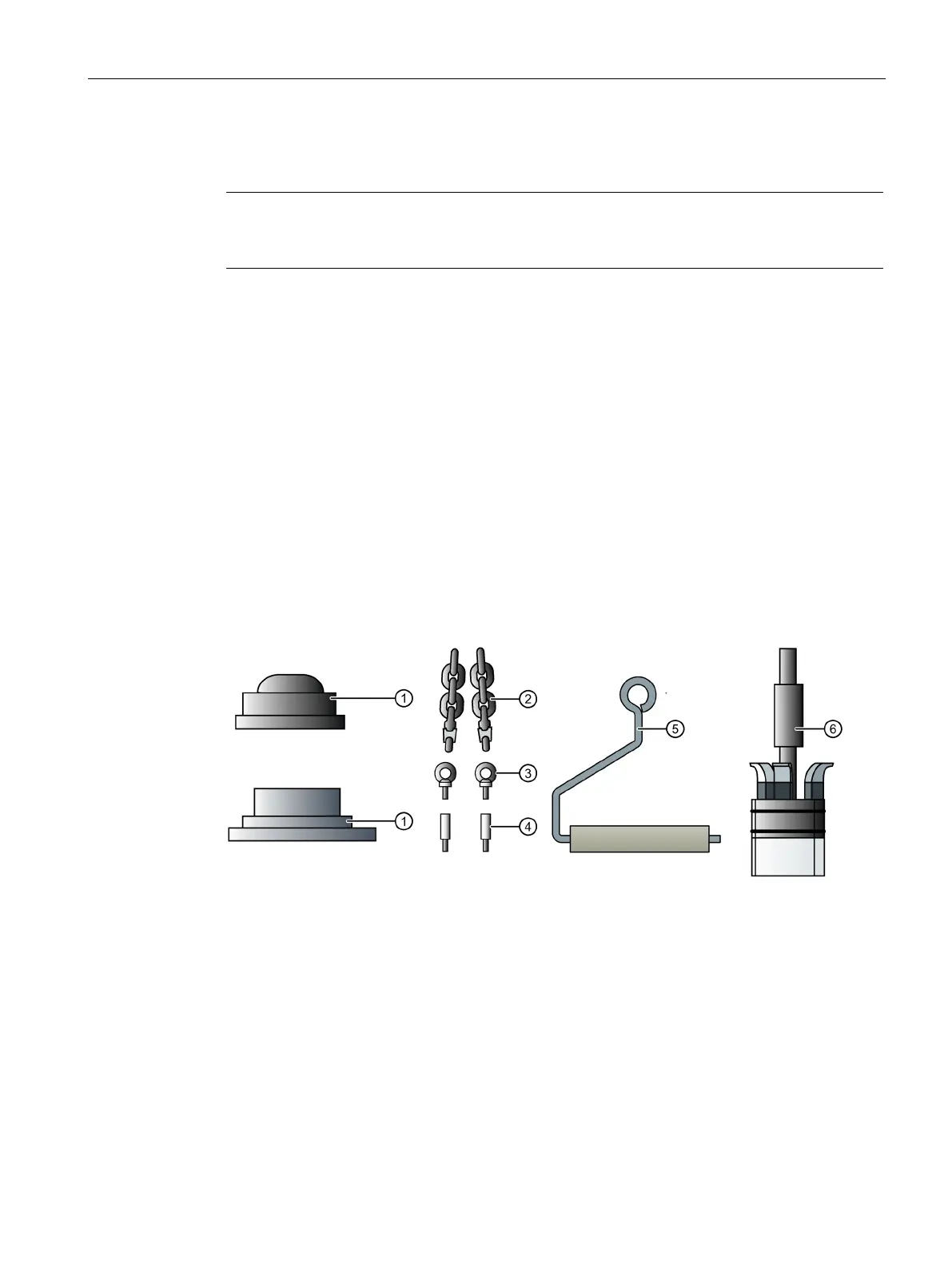

Mounting, production and auxiliary equipment for installation
1
Appropriate axial stops (examples)
2
Load suspension equipment (example)
3
Eyebolts
4
Spacing sleeves
5
Plastic-covered support arm for horizontal mounting (example)
6
Internal tensioning spindle (example)
Not
show
n
Anti-corrosion agent for steel surfaces
