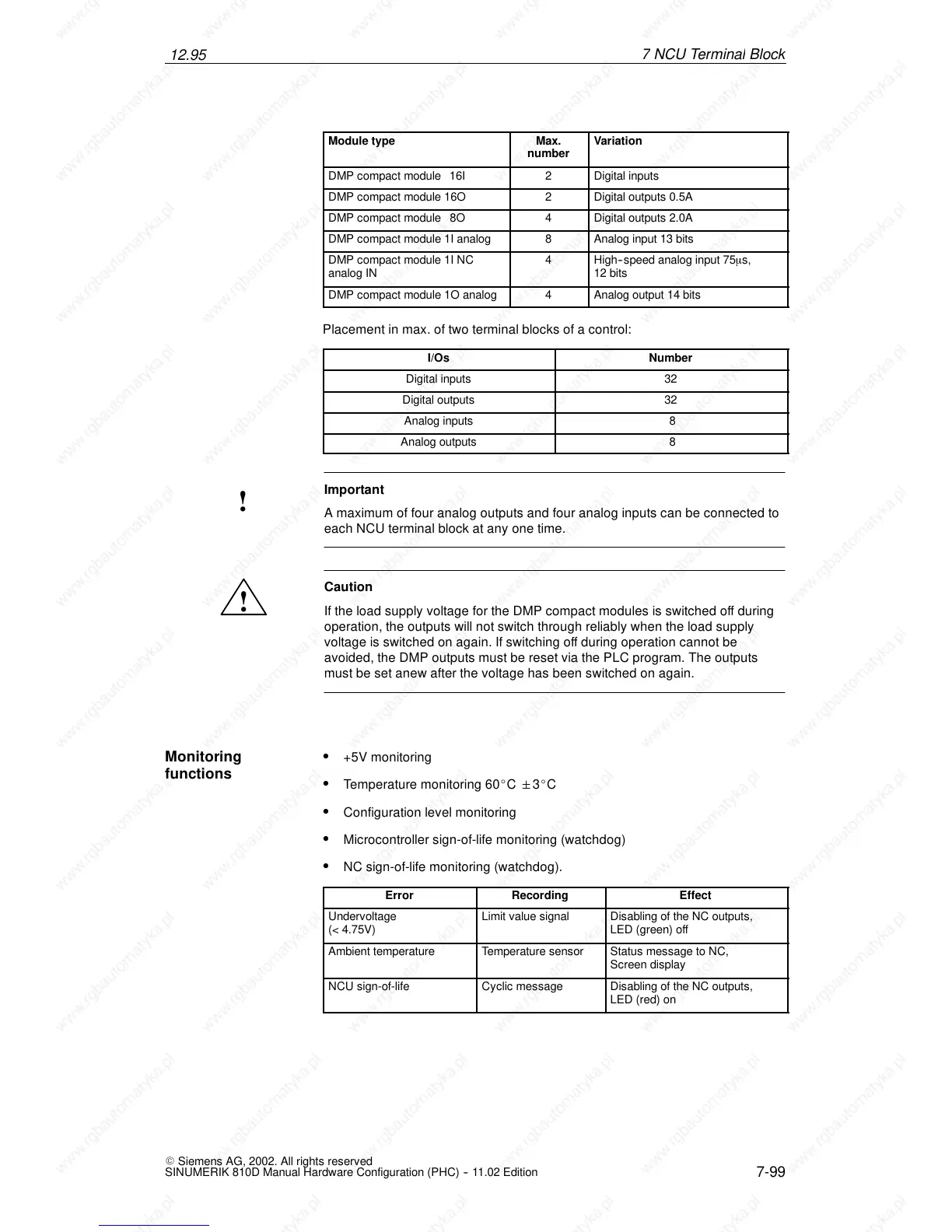

12.95
7-99
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Module type
Max.
number
Variation
DMP compact module 16I 2 Digital inputs
DMP compact module 16O 2 Digital outputs 0.5A
DMP compact module 8O 4 Digital outputs 2.0A
DMP compact module 1I analog 8 Analog input 13 bits
DMP compact module 1I NC
analog IN
4 High--speed analog input 75μs,
12 bits
DMP compact module 1O analog 4 Analog output 14 bits
Placement in max. of two terminal blocks of a control:
I/Os Number
Digital inputs 32
Digital outputs 32
Analog inputs 8
Analog outputs 8
!
Important
A maximum of four analog outputs and four analog inputs can be connected to
each NCU terminal block at any one time.
!
Caution
If the load supply voltage for the DMP compact modules is switched off during
operation, the outputs will not switch through reliably when the load supply
voltage is switched on again. If switching off during operation cannot be
avoided, the DMP outputs must be reset via the PLC program. The outputs
must be set anew after the voltage has been switched on again.
S +5V monitoring
S Temperature monitoring 60_C 3_C
S Configuration level monitoring
S Microcontroller sign-of-life monitoring (watchdog)
S NC sign-of-life monitoring (watchdog).
Error Recording Effect
Undervoltage
(< 4.75V)
Limit value signal Disabling of the NC outputs,
LED (green) off
Ambient temperature Temperature sensor Status message to NC,
Screen display
NCU sign-of-life Cyclic message Disabling of the NC outputs,
LED (red) on
Monitoring
functions
