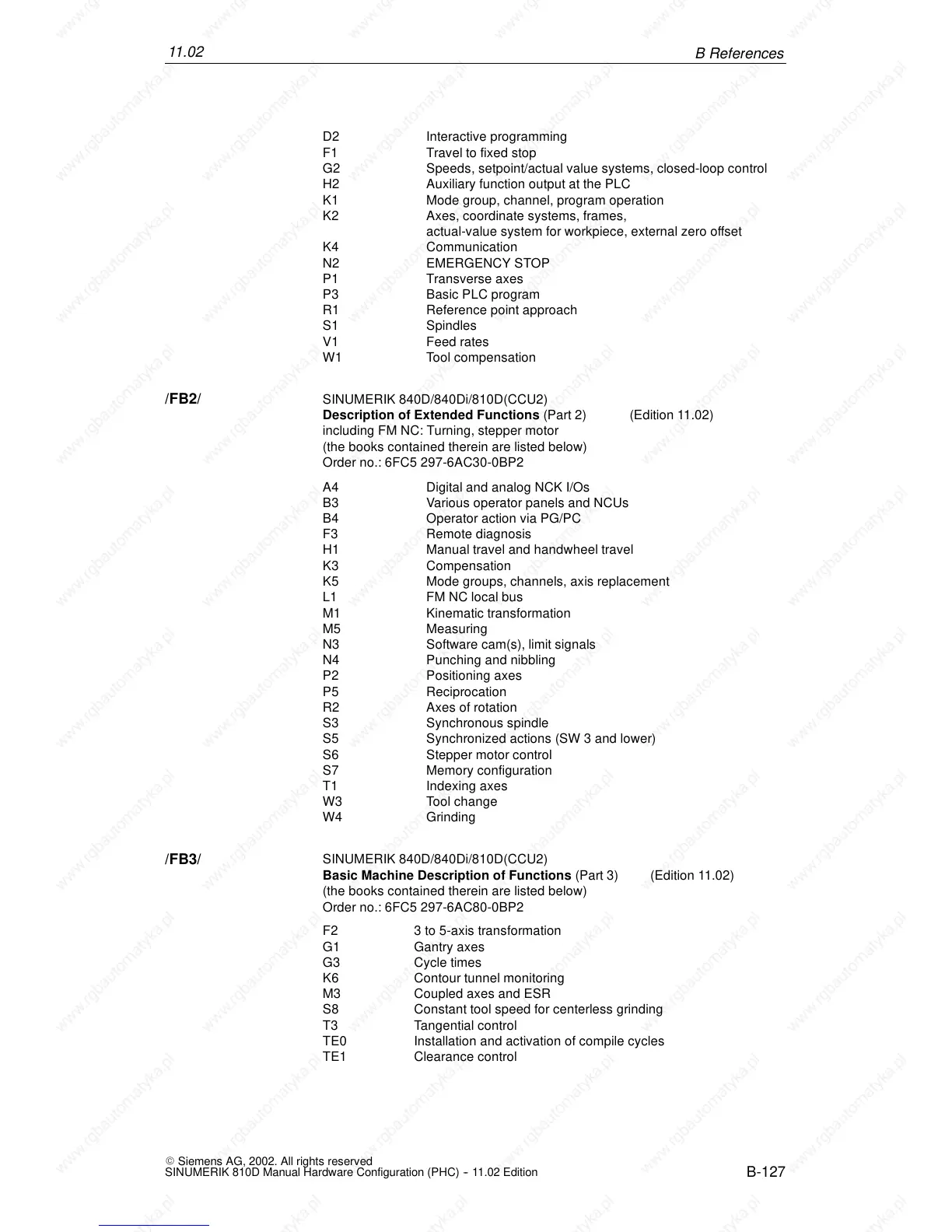

12.95
B-127
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
D2 Interactive programming
F1 Travel to fixed stop
G2 Speeds, setpoint/actual value systems, closed-loop control
H2 Auxiliary function output at the PLC
K1 Mode group, channel, program operation
K2 Axes, coordinate systems, frames,
actual-value system for workpiece, external zero offset
K4 Communication
N2 EMERGENCY STOP
P1 Transverse axes
P3 Basic PLC program
R1 Reference point approach
S1 Spindles
V1 Feed rates
W1 Tool compensation
SINUMERIK 840D/840Di/810D(CCU2)
Description of Extended Functions (Part 2) (Edition 11.02)
including FM NC: Turning, stepper motor
(the books contained therein are listed below)
Order no.: 6FC5 297-6AC30-0BP2
A4 Digital and analog NCK I/Os
B3 Various operator panels and NCUs
B4 Operator action via PG/PC
F3 Remote diagnosis
H1 Manual travel and handwheel travel
K3 Compensation
K5 Mode groups, channels, axis replacement
L1 FM NC local bus
M1 Kinematic transformation
M5 Measuring
N3 Software cam(s), limit signals
N4 Punching and nibbling
P2 Positioning axes
P5 Reciprocation
R2 Axes of rotation
S3 Synchronous spindle
S5 Synchronized actions (SW 3 and lower)
S6 Stepper motor control
S7 Memory configuration
T1 Indexing axes
W3 Tool change
W4 Grinding
SINUMERIK 840D/840Di/810D(CCU2)
Basic Machine Description of Functions (Part 3) (Edition 11.02)
(the books contained therein are listed below)
Order no.: 6FC5 297-6AC80-0BP2
F2 3 to 5-axis transformation
G1 Gantry axes
G3 Cycle times
K6 Contour tunnel monitoring
M3 Coupled axes and ESR
S8 Constant tool speed for centerless grinding
T3 Tangential control
TE0 Installation and activation of compile cycles
TE1 Clearance control
/FB2/
/FB3/
BRe
f
e
r
ence
s
11.02
