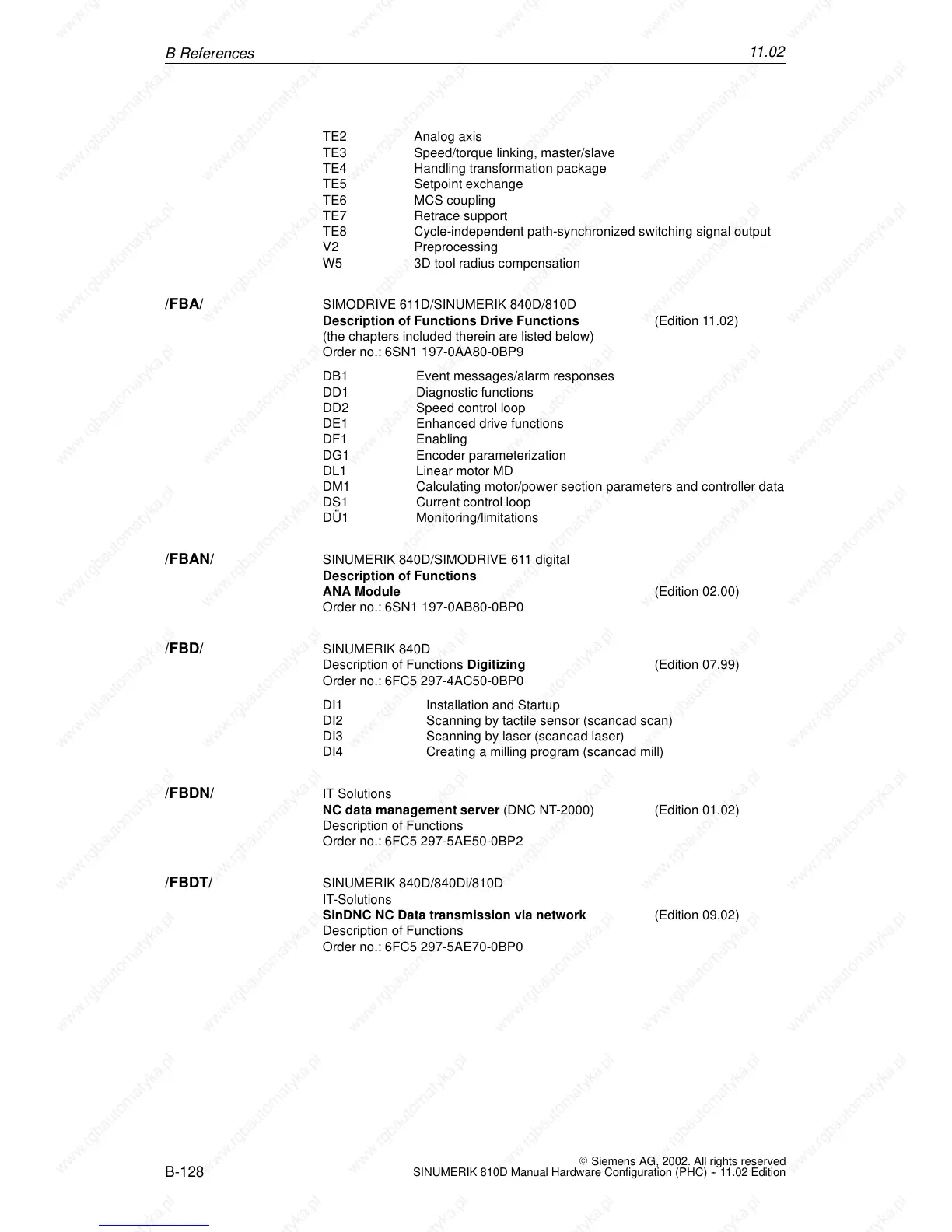

SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
TE2 Analog axis
TE3 Speed/torque linking, master/slave
TE4 Handling transformation package
TE5 Setpoint exchange
TE6 MCS coupling
TE7 Retrace support
TE8 Cycle-independent path-synchronized switching signal output
V2 Preprocessing
W5 3D tool radius compensation
SIMODRIVE 611D/SINUMERIK 840D/810D
Description of Functions Drive Functions (Edition 11.02)
(the chapters included therein are listed below)
Order no.: 6SN1 197-0AA80-0BP9
DB1 Event messages/alarm responses
DD1 Diagnostic functions
DD2 Speed control loop
DE1 Enhanced drive functions
DF1 Enabling
DG1 Encoder parameterization
DL1 L inear motor MD
DM1 Calculating motor/power section parameters and controller data
DS1 Current control loop
DÜ1 Monitoring/limitations
SINUMERIK 840D/SIMODRIVE 611 digital
Description of Functions
ANA Module (Edition 02.00)
Order no.: 6SN1 197-0AB80-0BP0
SINUMERIK 840D
Description of Functions Digitizing (Edition 07.99)
Order no.: 6FC5 297-4AC50-0BP0
DI1 Installation and Startup
DI2 Scanning by tactile sensor (scancad scan)
DI3 Scanning by laser (scancad laser)
DI4 Creating a milling program (scancad mill)
IT Solutions
NC data management server (DNC NT-2000) (Edition 01.02)
Description of Functions
Order no.: 6FC5 297-5AE50-0BP2
SINUMERIK 840D/840Di/810D
IT-Solutions
SinDNC NC Data transmission via network (Edition 09.02)
Description of Functions
Order no.: 6FC5 297-5AE70-0BP0
/FBA/
/FBAN/
/FBD/
/FBDN/
/FBDT/
BRe
f
e
r
ence
s
