2.17 Flexible Protection Functions
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
286
Logic

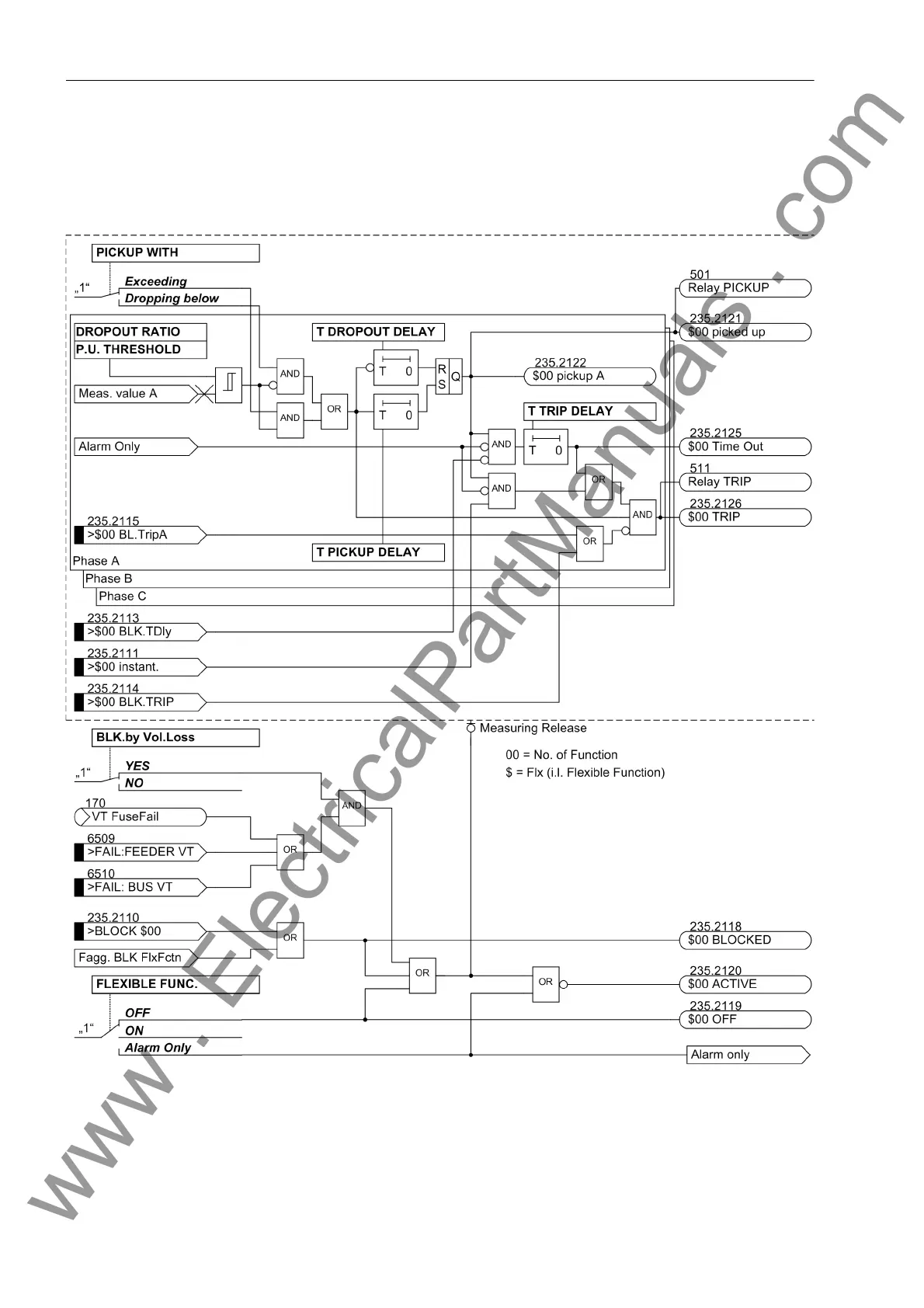

Figure 2-106 shows the logic diagram of a three-phase function. If the function operates on one phase or
without phase reference, phase selectivity and phase-specific indications are not relevant.
Figure 2-106 Logic diagram of the flexible protection functions
