Functions
2.23 Auxiliary Functions
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
369

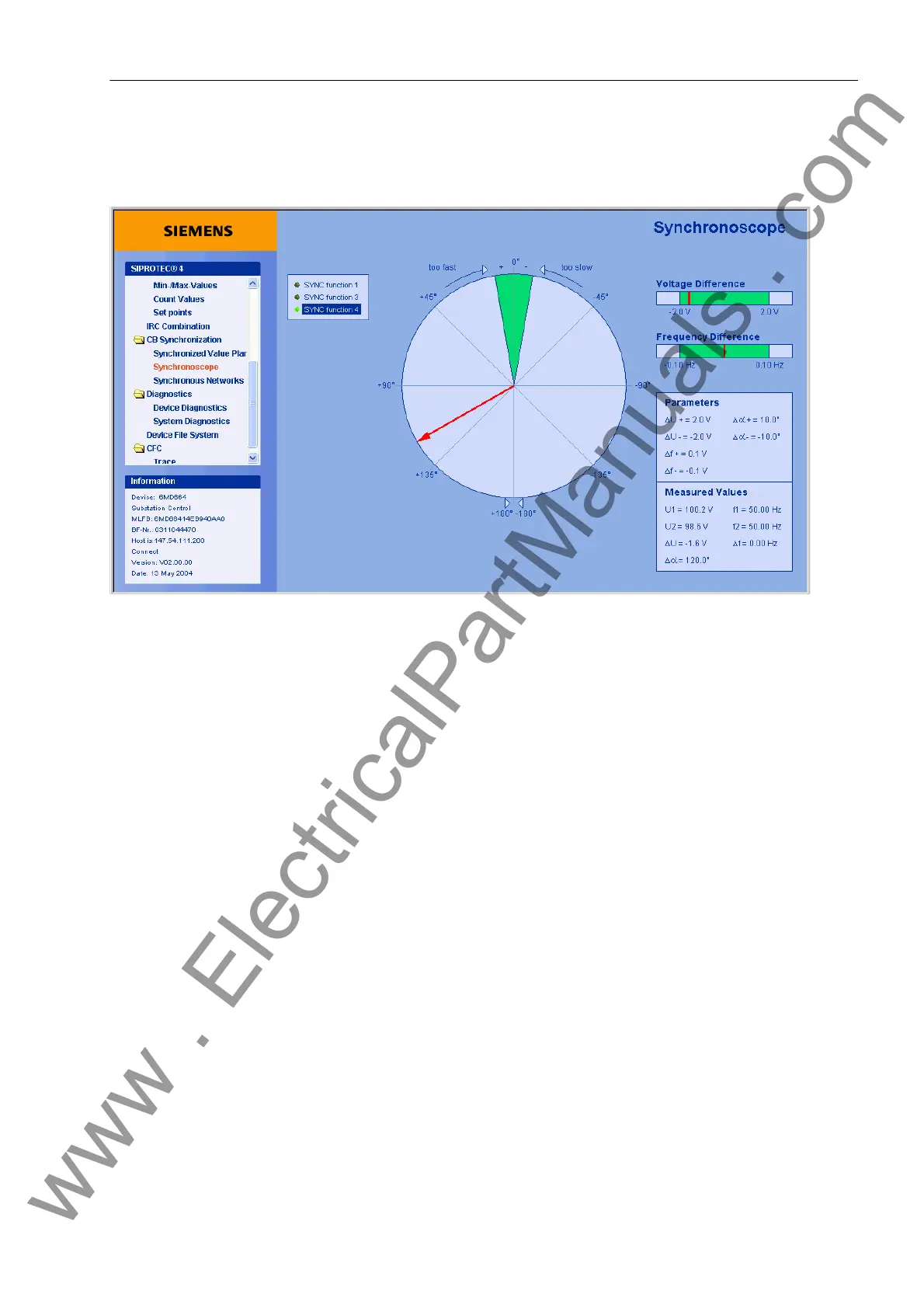

The figure below shows an example of the synchronoscope with selection list, pie/bar chart and the current
measured values.
Figure 2-138 Web-Monitor Synchronoscope
All currently parameterized functions are shown in a list. An LED icon shows the current status of the selected
group: bright green (ON) for active, and dark green (OFF) for inactive. For an inactive function group, only the
parameter settings are shown, whereas for an active function group the current measured values are displayed
as well. On startup, the first active function group found is displayed automatically. All measured values are
read out directly in the device – about every 100 ms – and visualized in tables or diagrams.
