Functions
2.23 Auxiliary Functions
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
368

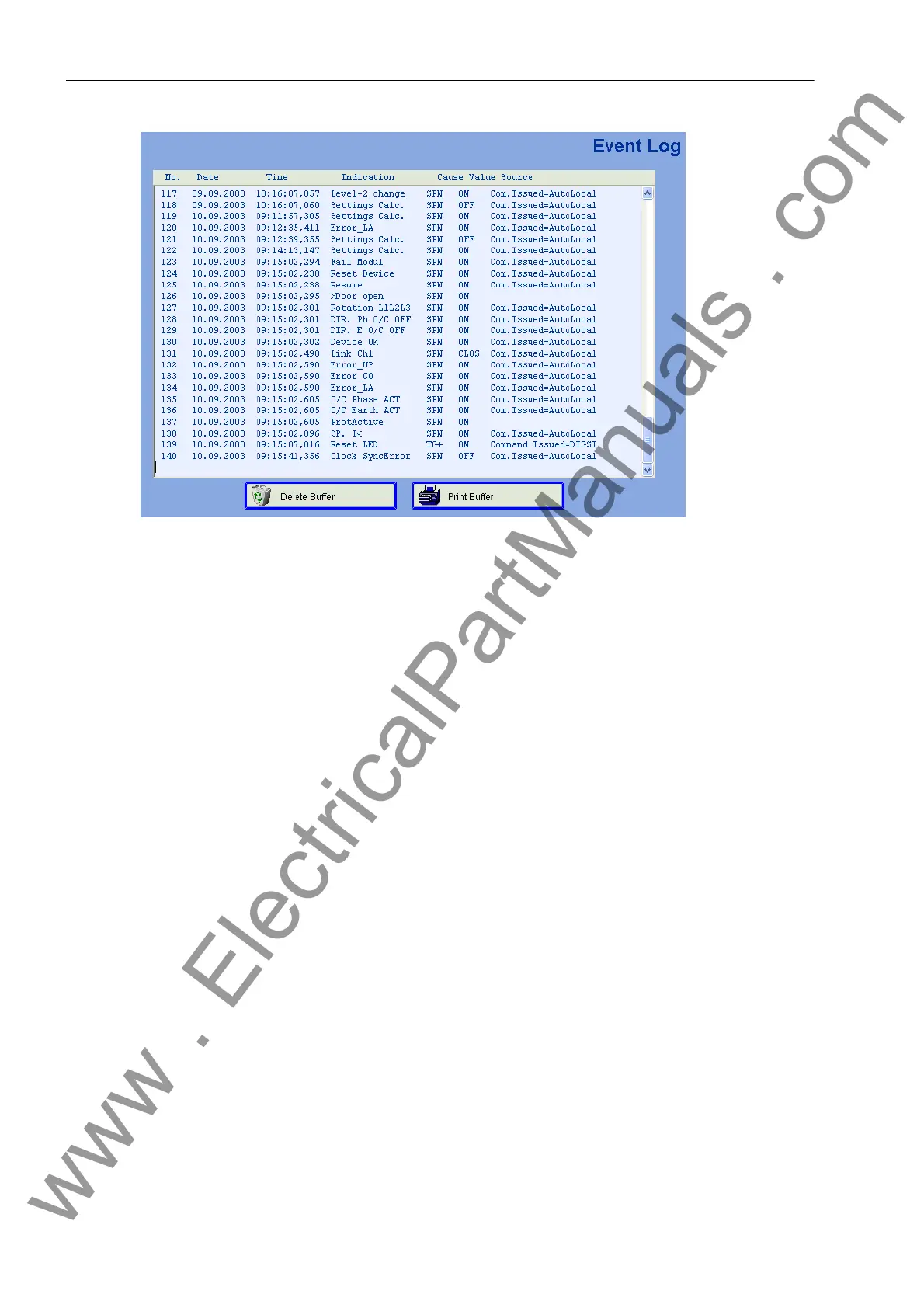

Figure 2-137 Operational Messages (Buffer: Event Log)
Device-specific Functionality
Apart from the general basic functionality, the Web Monitor contains the synchronization function for the
7SJ62/64. The following information can therefore be displayed via the Web Monitor.
The synchronisation function includes the following views:
• Synchronization range
The synchronisation ranges are displayed in a coordinate system. The X axis shows the frequency and the
Y axis the voltage.
• Synchronoscope
The synchronoscope is dynamically visualized by three diagrams showing respectively the difference angle,
the difference voltages and the difference frequency.
• Synchronous systems
Synchronous networks are visualized by a pie chart and the current measured values.
