Appendix
A.5 Default Settings
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
620
4-Line Display of 7SJ640

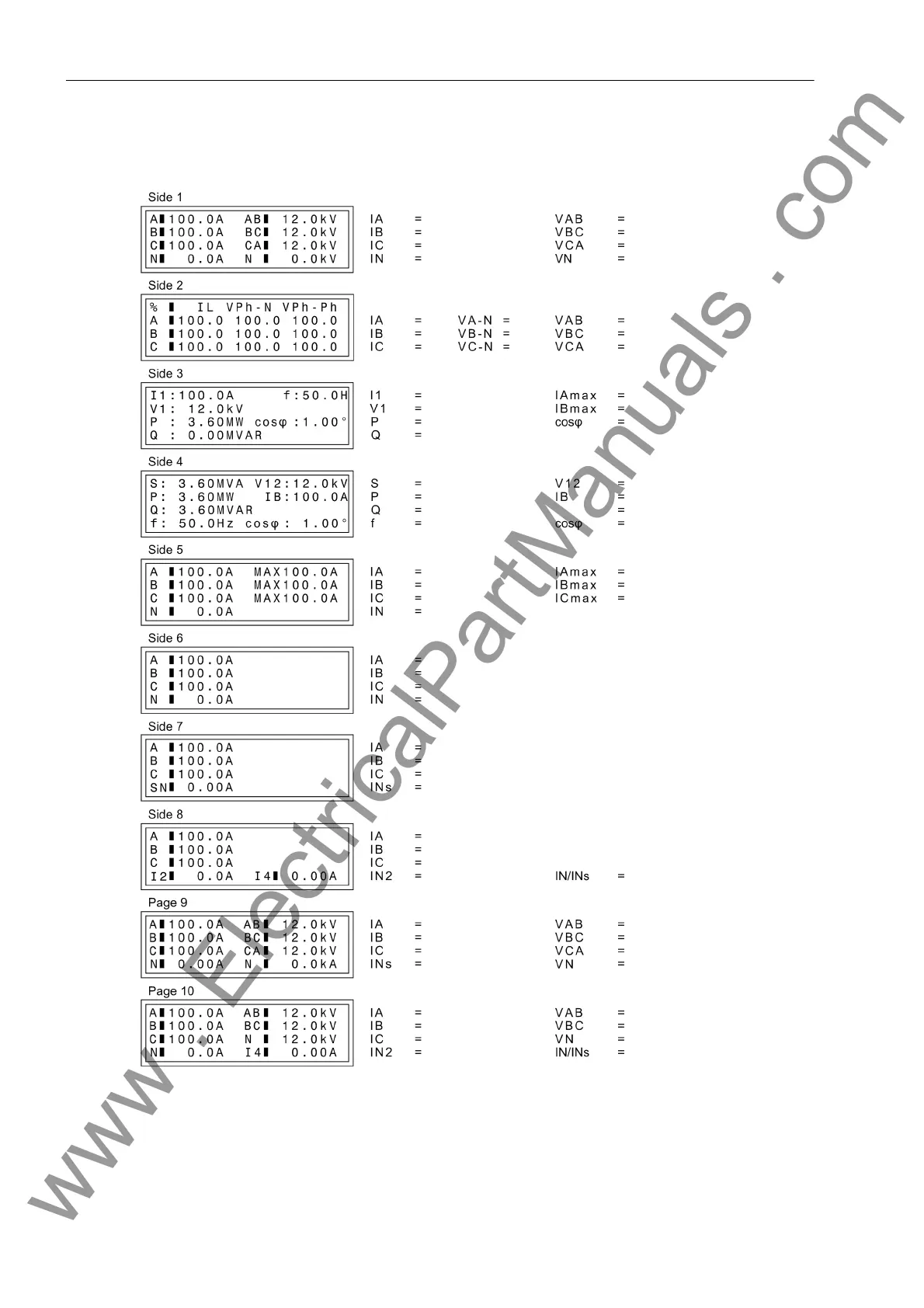

Figure A-61 Default Display of 7SJ640
Page 8 and page 10 of the default display can only be used if for the current connection (parameter 251CT
Connect.) one of the two special connection types (A,G2,C,G; G->B or A,G2,C,G; G2->B) were selected
(see description of Power System Data 1).
