Appendix
A.5 Default Settings
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
621
for Graphic Display of 7SJ641/2/5/7

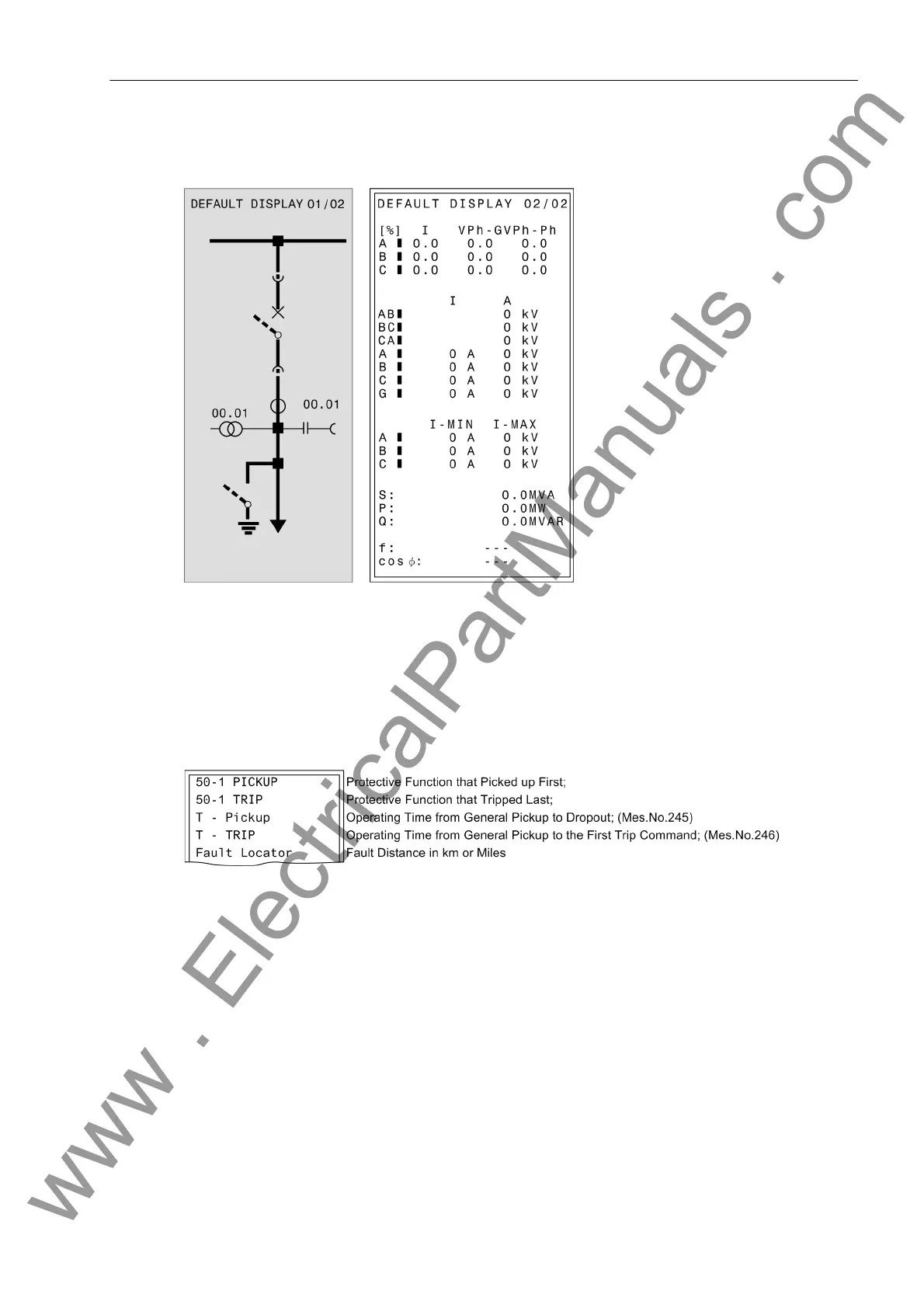

Figure A-62 Default displays for graphic display
Spontaneous Fault Indication of the 4–Line Display
The spontaneous annunciations on devices with 4–line display serve to display the most important data about
a fault. They appear automatically in the display after general interrogation of the device, in the sequence
shown in the following figure.
Figure A-63 Display of spontaneous messages in the HMI
Spontaneous Fault Indication of the Graphic Display
All devices featuring a graphic display allow to select whether or not to view automatically the most important
fault data on the display after a general interrogation. The information corresponds to those of Figure .
