6.12 Attachment of calibration protection plate
SIWAREX WP251
Manual, 12/2015, A5E37203357A
39
6.12
Attachment of calibration protection plate
To operate SIWAREX WP251 as a calibratable electronic weighing system, the load cell
connections must be protected against manipulation. To achieve this, mount the calibration
protection plate included in the calibration set as shown in the following figure. Then attach
the calibration protection plate to the associated terminals (see Overview (Page 29)).

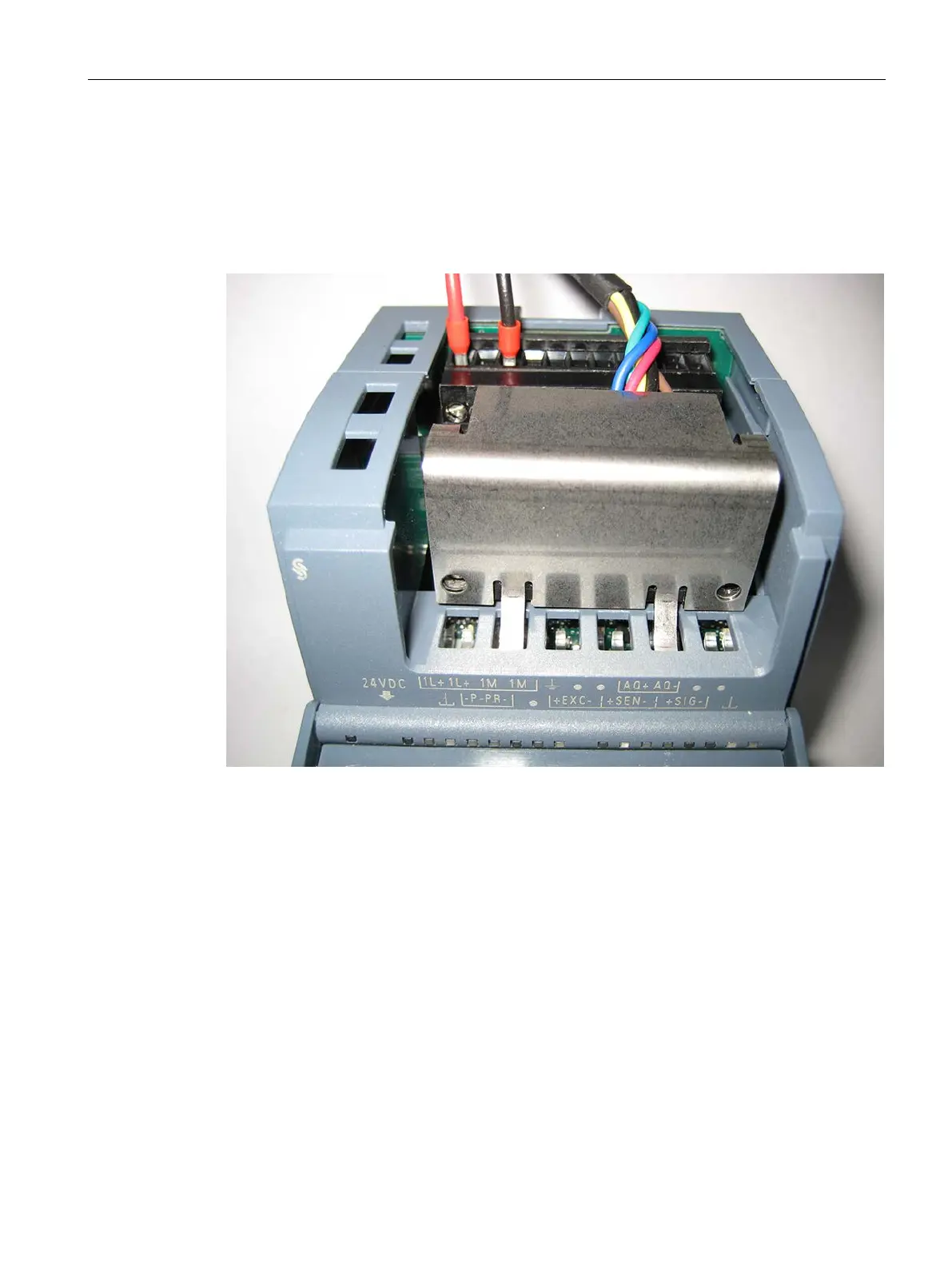

Image 6-7 Attachment of the calibration protection plates
