Commissioning
7
7.1
Introduction
Commissioning consists mainly of checking the mechanical setup of the scale, assignment
of parameters, performing the calibration and checking the intended functionality. SIWAREX
WP251 provides a variety of commissioning options: using the "SIWATOOL" PC software,
using the WP251 function block via the S7-1200 CPU or touch panel or using the
Modbus TCP/IP/Modbus RTU interface. "SIWATOOL" is a component of the WP251
configuration package (see Accessories). The function block and the "Ready-for-use"
example application can be downloaded for free from Siemens Online Support.
7.2
Factory setting of the mode selector
The module contains two DIP switches to the left of the Ethernet connector (accessible
through the ventilation opening). Both switches are at the top position ex factory.

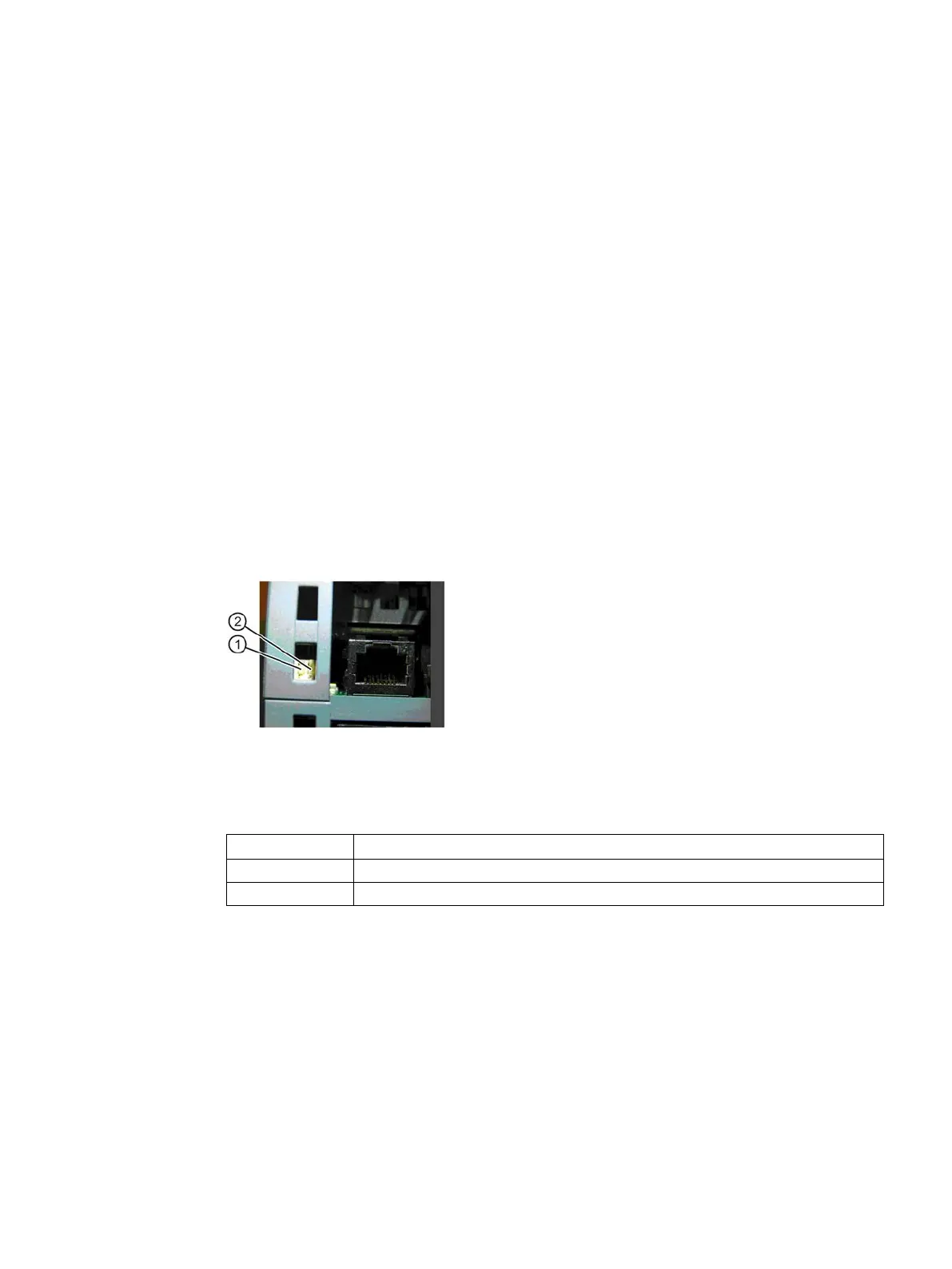

Image 7-1 Mode switch
The left-hand switch ① currently has no function. The right-hand switch ② defines the
operating environment.
Switch position
Operating environment
Up
Operation integrated in SIMATIC
Down
"Stand-alone" operation (without SIMATIC controller)
The factory setting is "Operation integrated in SIMATIC".
