Signal Hound BB60C - Typical Displayed Average Noise Level; Typical Performance over Temperature; Spurious Mixer Responses

A P P E N D I X
49

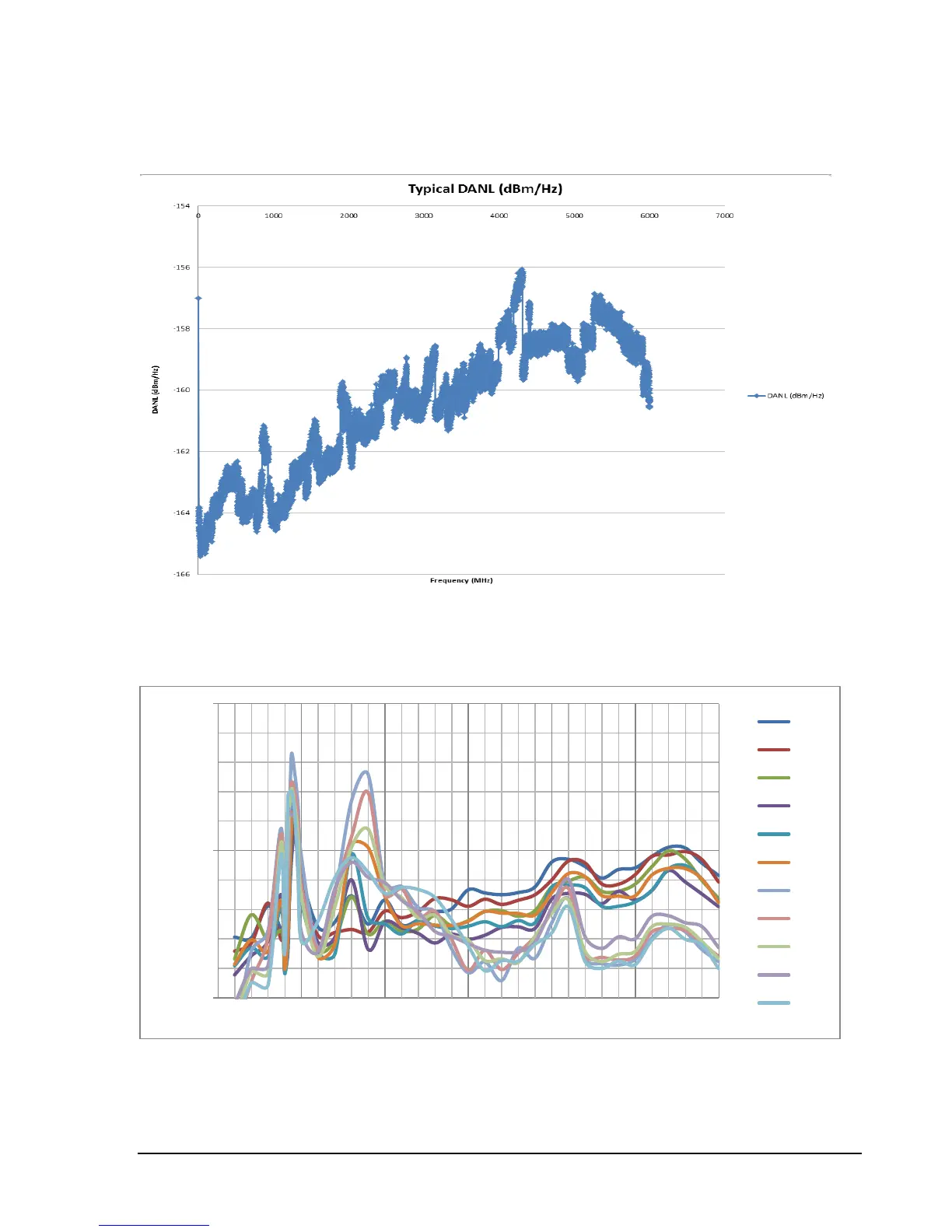

Typical Displayed Average Noise Level 15.1.2
Typical Performance over Temperature 15.1.3
Spurious Mixer Responses* 15.1.3.1
*Signal 10 dB below reference level. To calculate IP2 at a given frequency, subtract this number from signal level (e.g. -30 dBm
reference level would be a -40 dBm signal. Subtract e.g. -64dB @ 2 GHz for an IP2 of +24 dBm).
-70
-60
-50
0 500 1000 1500 2000 2500 3000
Harmonic Responses (dBc)
Frequency (MHz)
-40 C
-30 C
-20 C
-10 C
0 C
10 C
21 C
32 C
43 C
54 C
65 C
