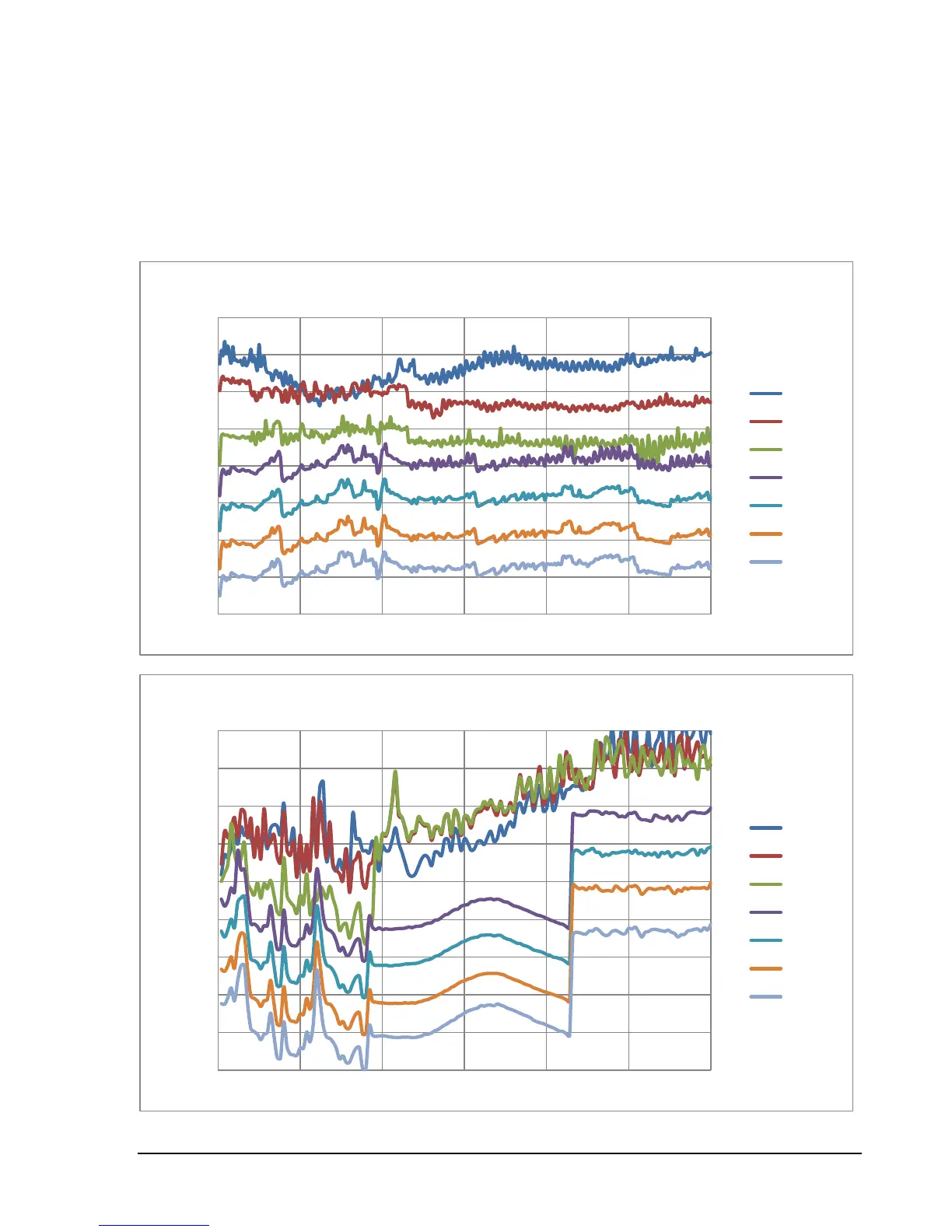

Typical BB60C Intermodulation Performance 12.1
Two-tone IP2 and IP3 plotted. IP2 shown is high-side two-tone IP2. IP3 shown is the average between
high-side and low-side two-tone IP3. Equal amplitude tones at f1 and f2 spaced 4 MHz. Single typical
device plotted, gain and attenuator=auto. Note: IP2 and IP3 may vary significantly from device to device.
-30
-20
-10
0
10
20
30
40
50
0 1000 2000 3000 4000 5000 6000
IP3 (dBm)
Frequency (MHz)
Typical Two-Tone IP3 vs Frequency at Specified Reference Level
10 dBm
0 dBm
-10 dBm
-20 dBm
-30 dBm
-40 dBm
-50 dBm
-10
0
10
20
30
40
50
60
70
80
0 500 1000 1500 2000 2500 3000
IP2 (dBm)
Frequency (MHz)
Typical Two-Tone IP2 vs Frequency at Specified Reference Level
10 dBm
0 dBm
-10 dBm
-20 dBm
-30 dBm
-40 dBm
-50 dBm
